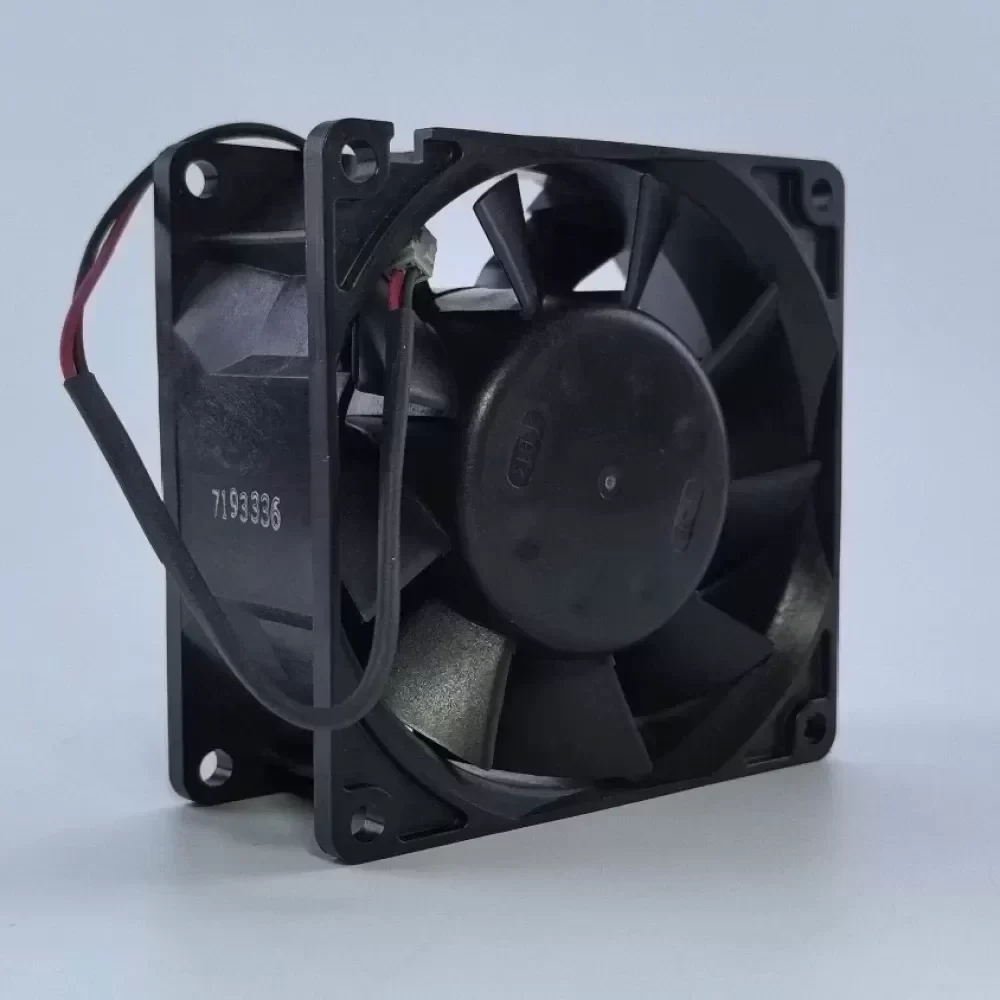

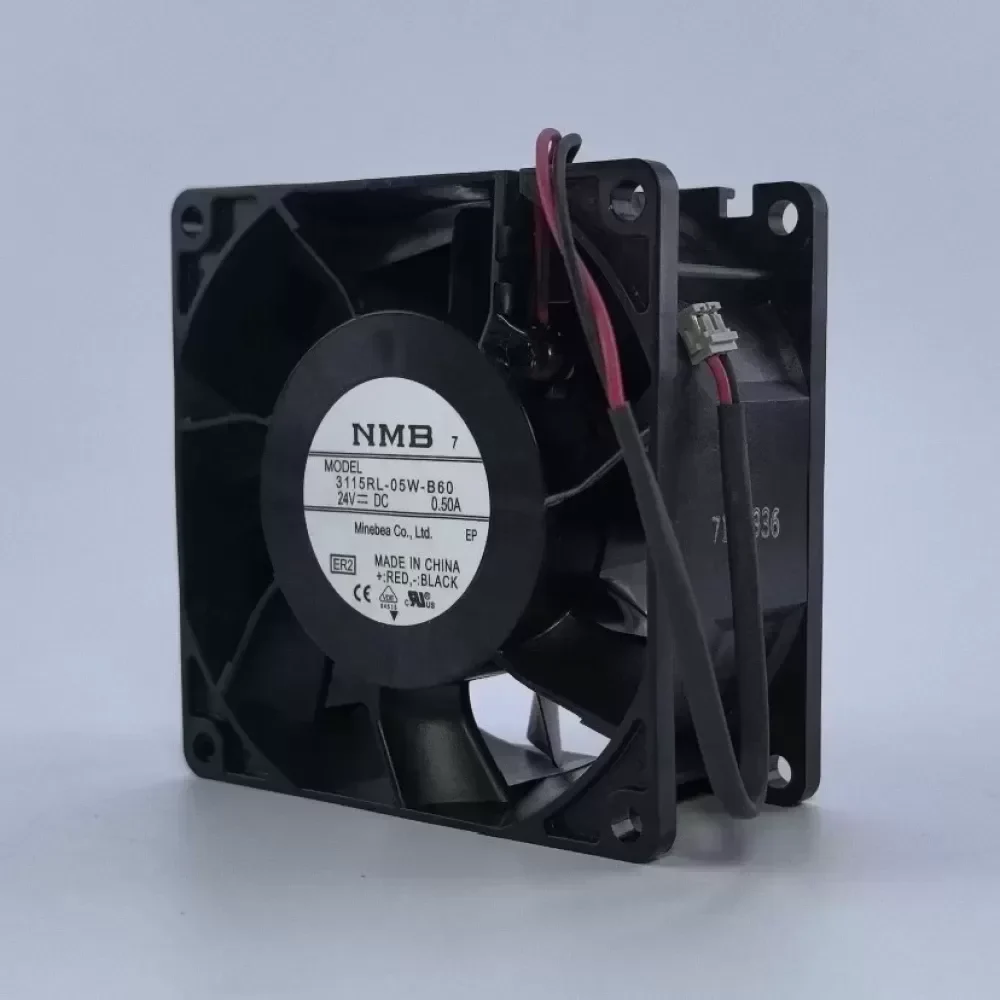

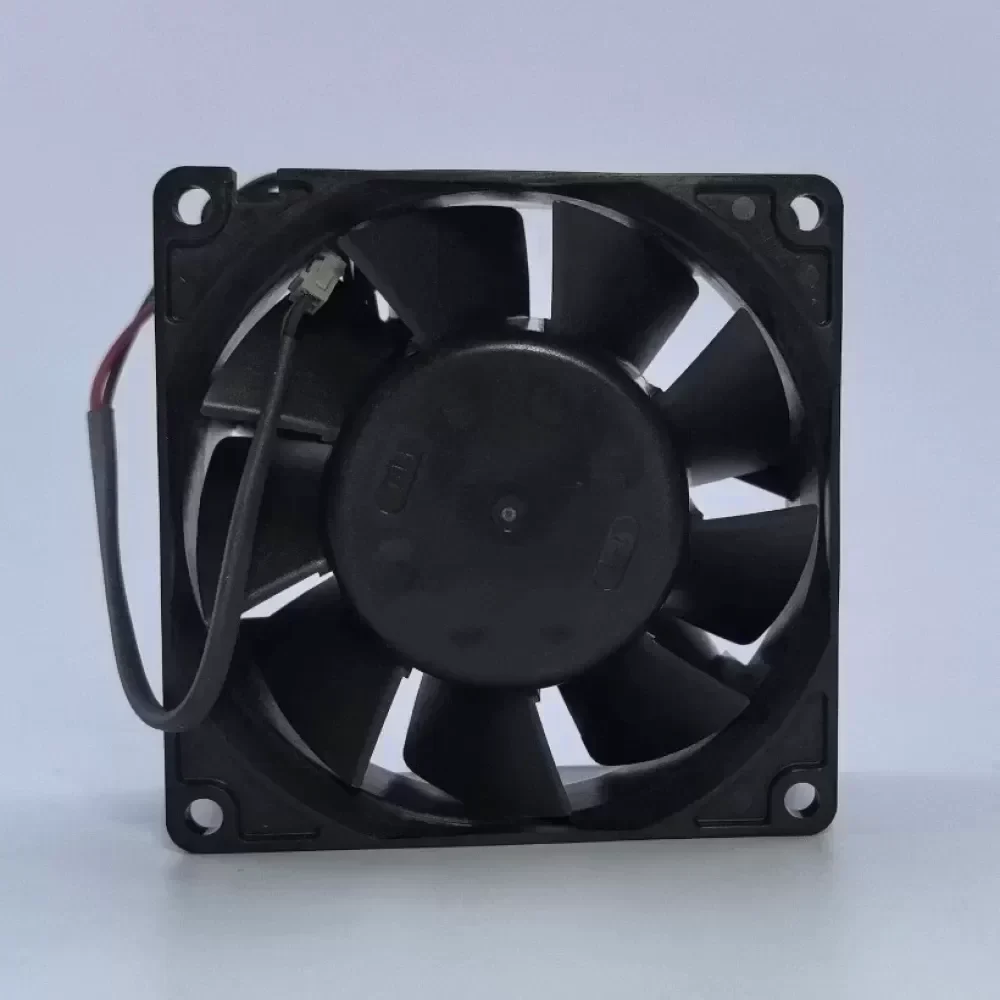

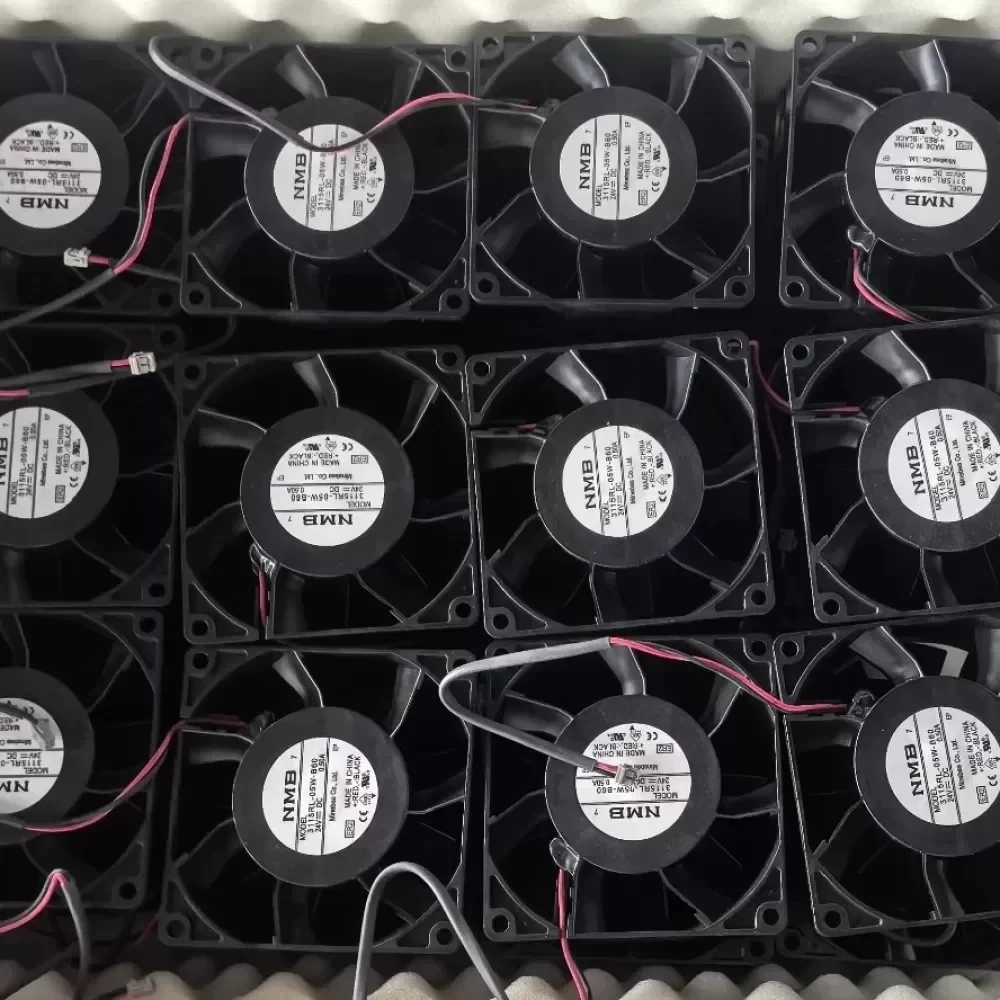

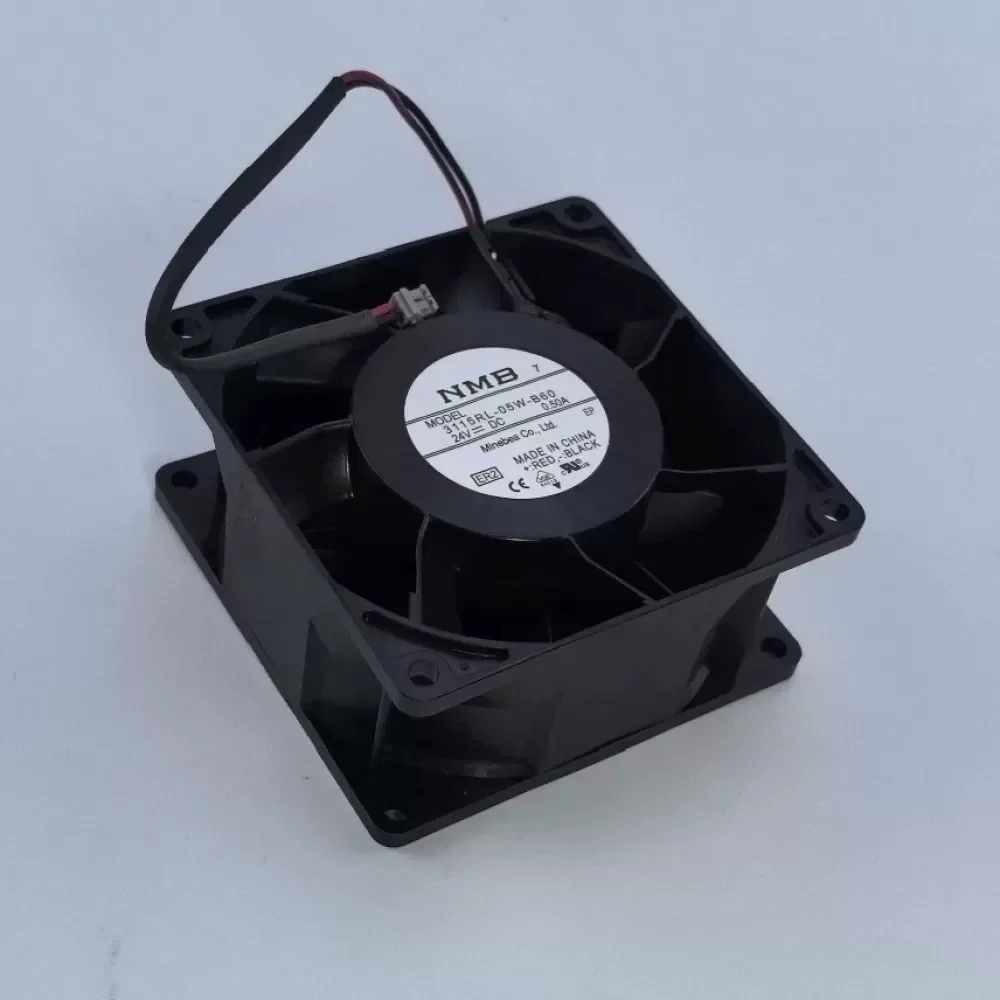

Name: NMB original fan 3115RL-05W-B60 24V 0.5A
Brand: NMB
SKU: 903824575836
Availability: InStock
Rating: 5 (4 reviews)

$7.86

SKU: 903824575836 Brand: NMB

Description
Reviews (0)

Description

Secure optimal thermal management for high-density power electronics with the NMB-MAT 3115RL-05W-B60 DC Axial Fan. This component represents Original Engineering standards for Schneider Electric inverter chassis cooling, specifically designed to mitigate thermal throttling in variable frequency drives (VFDs) and heavy-duty industrial automation equipment. The 3115RL series utilizes a specialized 80mm x 80mm x 38mm form factor, delivering the high static pressure required to force air through dense heatsink fins and restricted chassis airflow paths where standard 25mm depth fans fail.

Constructed with a reinforced PBT plastic housing and a precision dual ball bearing system, this unit ensures extended lifecycle performance under continuous duty cycles (L10 Life > 60,000 hours). The B60 speed classification indicates a high-velocity airflow profile, essential for maintaining operational stability in harsh industrial environments. Technical Compatibility is guaranteed for specific Schneider inverter models requiring 24V DC input with moisture-resistant characteristics. Contact our engineering team for current Lead Time and bulk procurement specifications.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Number: 3115RL-05W-B60
Component Type: DC Axial Cooling Fan
Frame Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V – 27.6V
Current Rating: 0.50 A
Power Consumption: 12.0 W
Airflow: Approx. 65.0 CFM (1.84 m³/min)
Static Pressure: High Pressure Profile (approx. 140 Pa)
Bearing Structure: Dual Precision Ball Bearing
Speed Class: Ultra High Speed (6500 RPM ±10%)
Housing Material: PBT (Polybutylene Terephthalate) UL94V-0
Impeller Material: PA (Polyamide) UL94V-0
Termination Style: Lead Wire (Red +, Black -)
Operating Temperature: -10°C to +70°C
Environmental Rating: Waterproof / Moisture Resistant Design
Application: Schneider Inverter Chassis Cooling, High-Impedance Heat Exchangers

NMB original fan 3115RL-05W-B60 24V 0.5A

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
