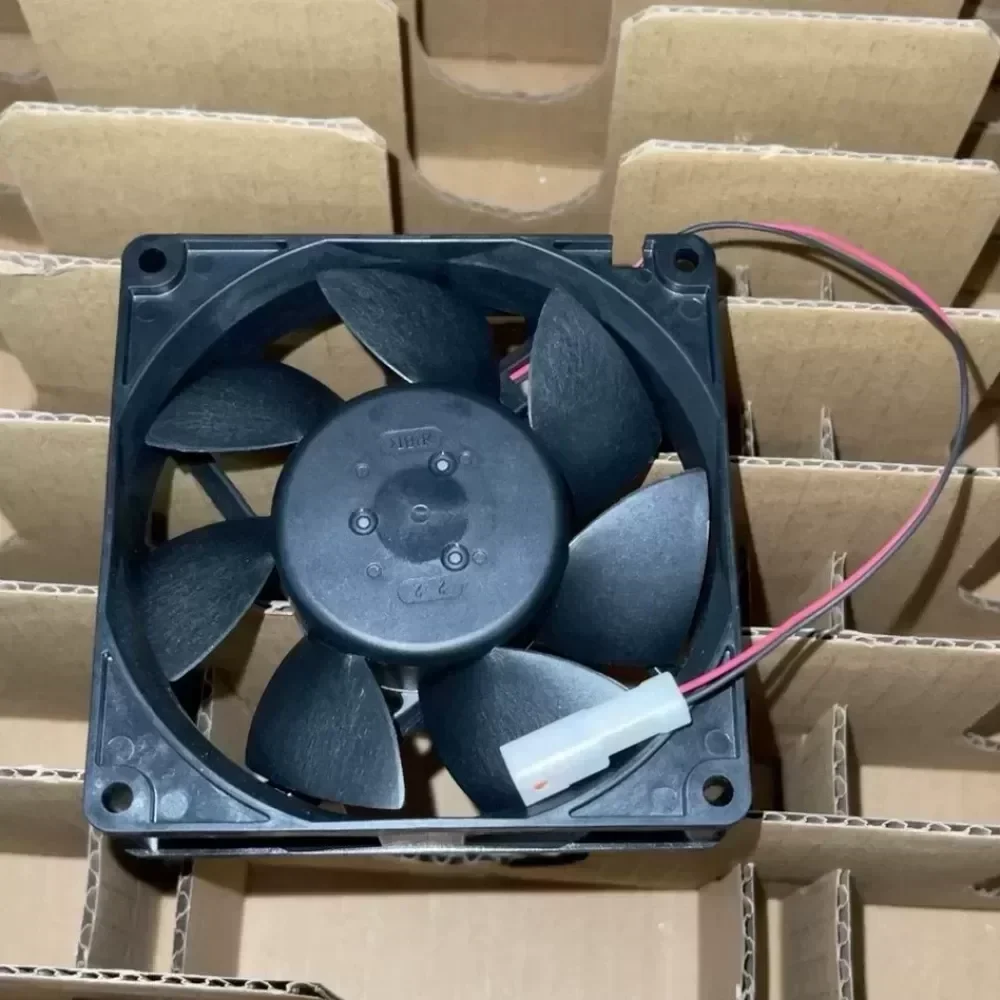

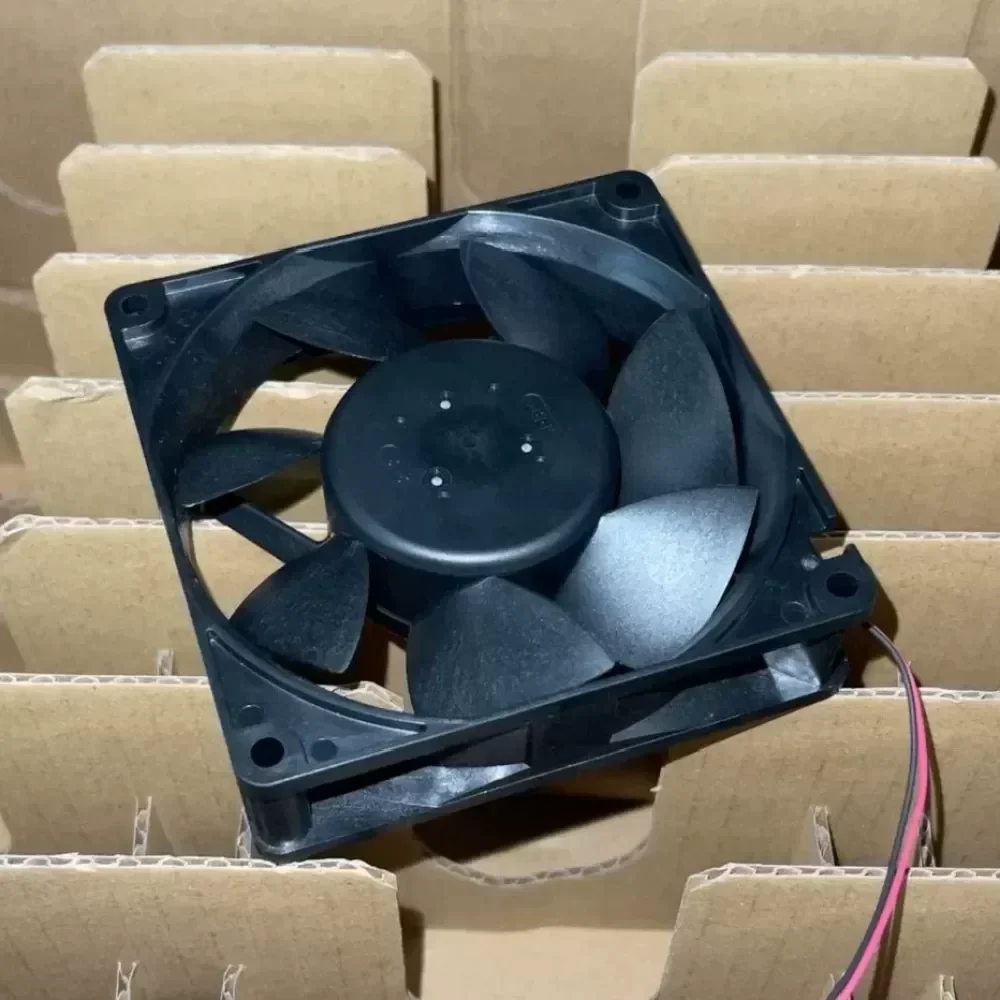

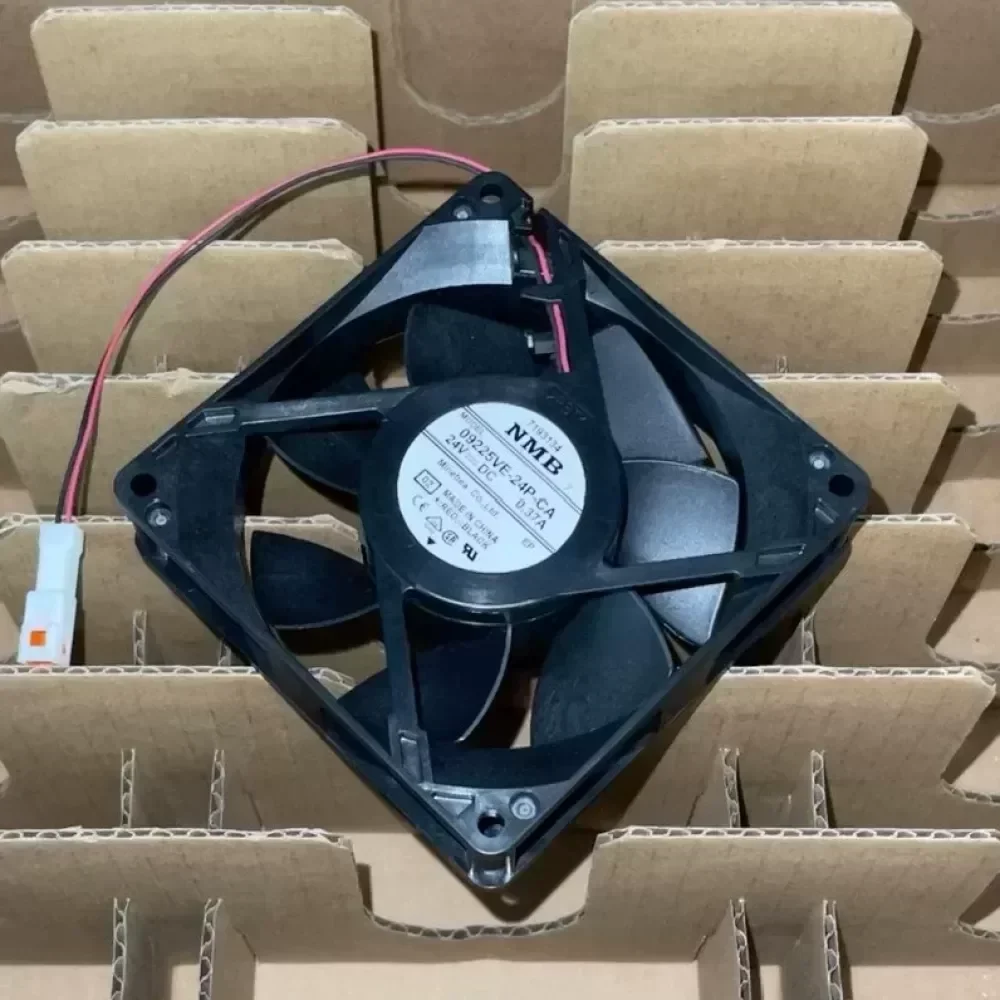

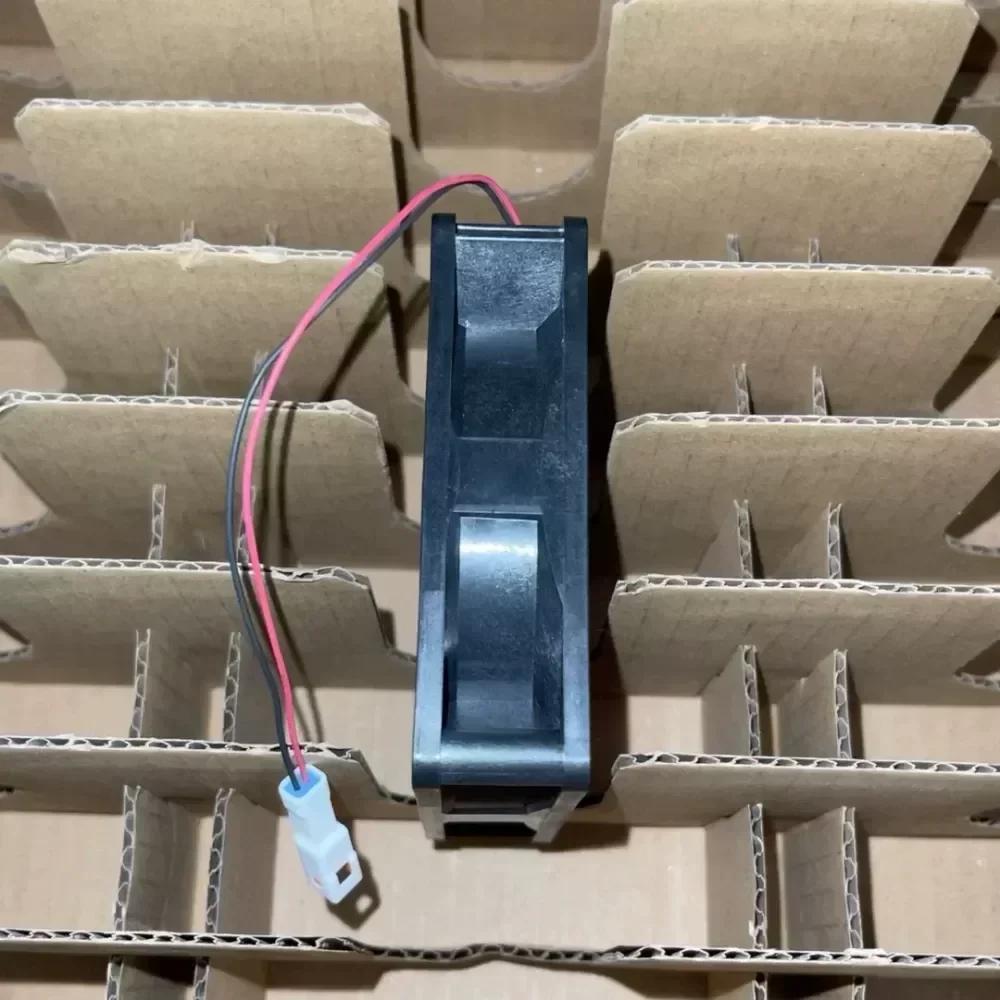

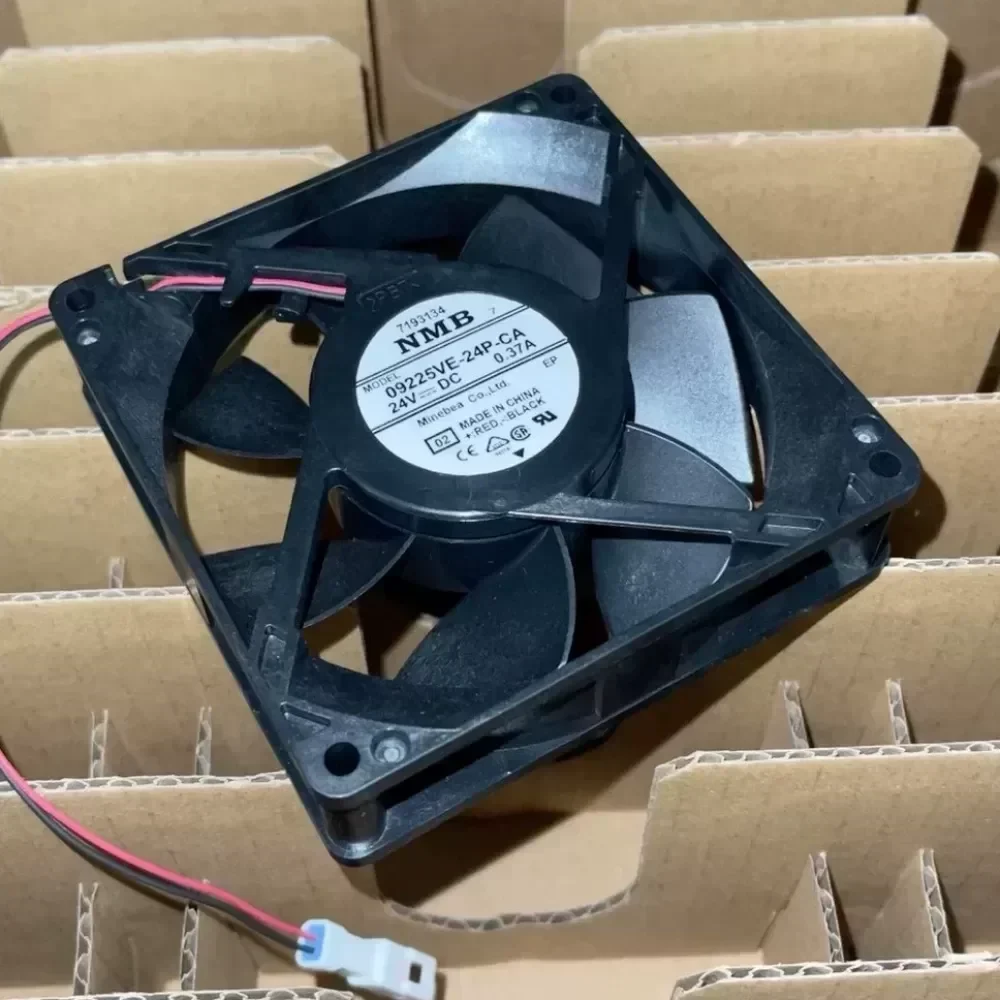

NMB09225 VE-24P-CA Fan 24V 0.37A

Name: NMB09225 VE-24P-CA Fan 24V 0.37A
Brand: NMB
SKU: 925135500220
Availability: InStock
Rating: 5 (4 reviews)

$7.43

SKU: 925135500220 Brand: NMB

Description
Reviews (0)

Description

The NMB-MAT 09225VE-24P-CA is a high-performance industrial axial fan engineered for precision thermal management in power electronics and automation systems. This unit utilizes Original Engineering from MinebeaMitsumi to deliver high static pressure and reliable airflow in high-impedance environments. Technical Compatibility is guaranteed for industrial inverters, server chassis, and control cabinets requiring 24V DC cooling solutions.

Technical Specifications:
Manufacturer: NMB-MAT (MinebeaMitsumi)
Model Number: 09225VE-24P-CA
Frame Size: 92mm x 92mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V
Rated Current: 0.37A
Input Power: 8.88W
Bearing Type: Dual Precision Ball Bearing
Motor Protection: Auto Restart / Polarity Protection
Insulation Resistance: 10M Ohm or over with a DC500V Megger
Dielectric Withstand Voltage: AC 700V 1s
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Expected Life: 100,000 Hours at 25°C
Frame Material: Plastic (Black) UL94V-0
Impeller Material: Plastic (Black) UL94V-0
Weight: 120g

Industrial Application Scenario:
This component is specifically designed for the thermal regulation of high-capacity frequency inverters and CNC machine control units. In these environments, the 0.37A current rating provides the necessary torque to maintain consistent CFM even when faced with dust-filter resistance. The dual ball bearing architecture allows for 24/7 continuous operation in both vertical and horizontal orientations, preventing critical system overheating and extending the lifecycle of sensitive semiconductor components. Please contact our logistics team for current Lead Time and availability for bulk industrial replacement cycles.

NMB09225 VE-24P-CA Fan 24V 0.37A

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
