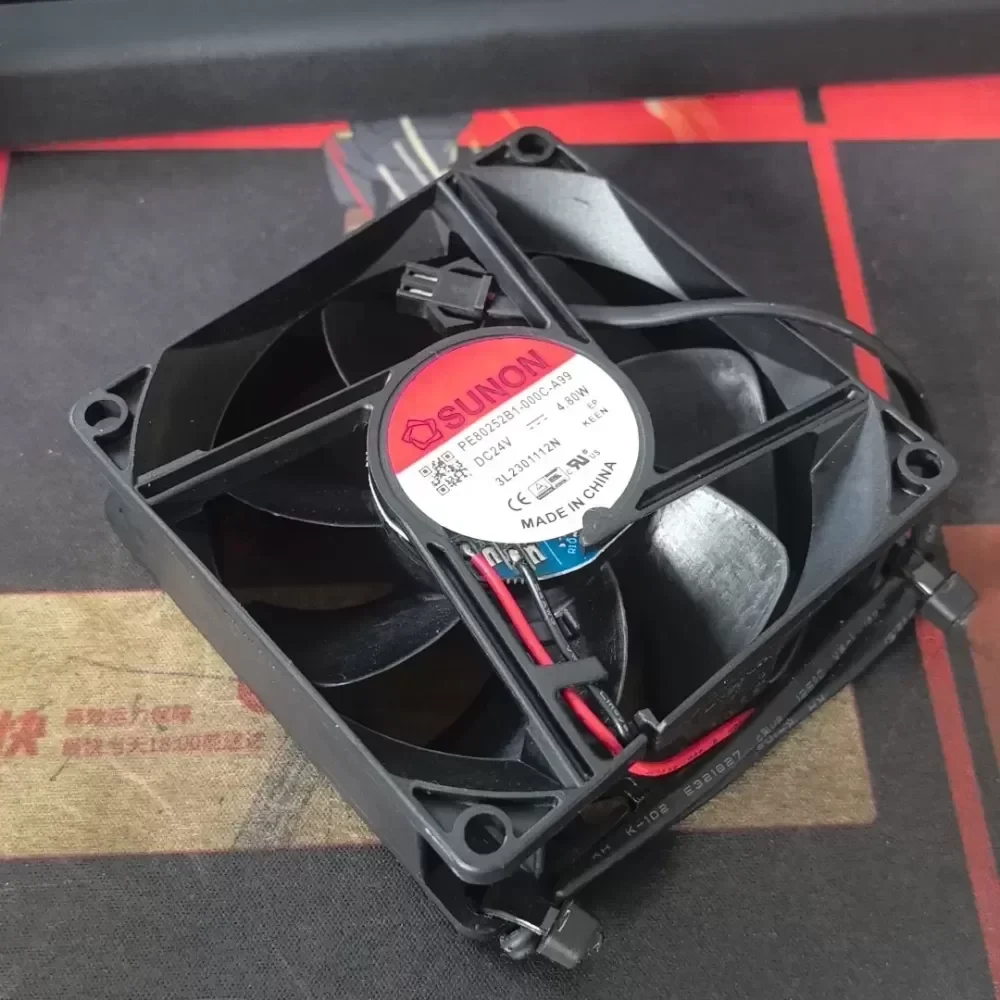

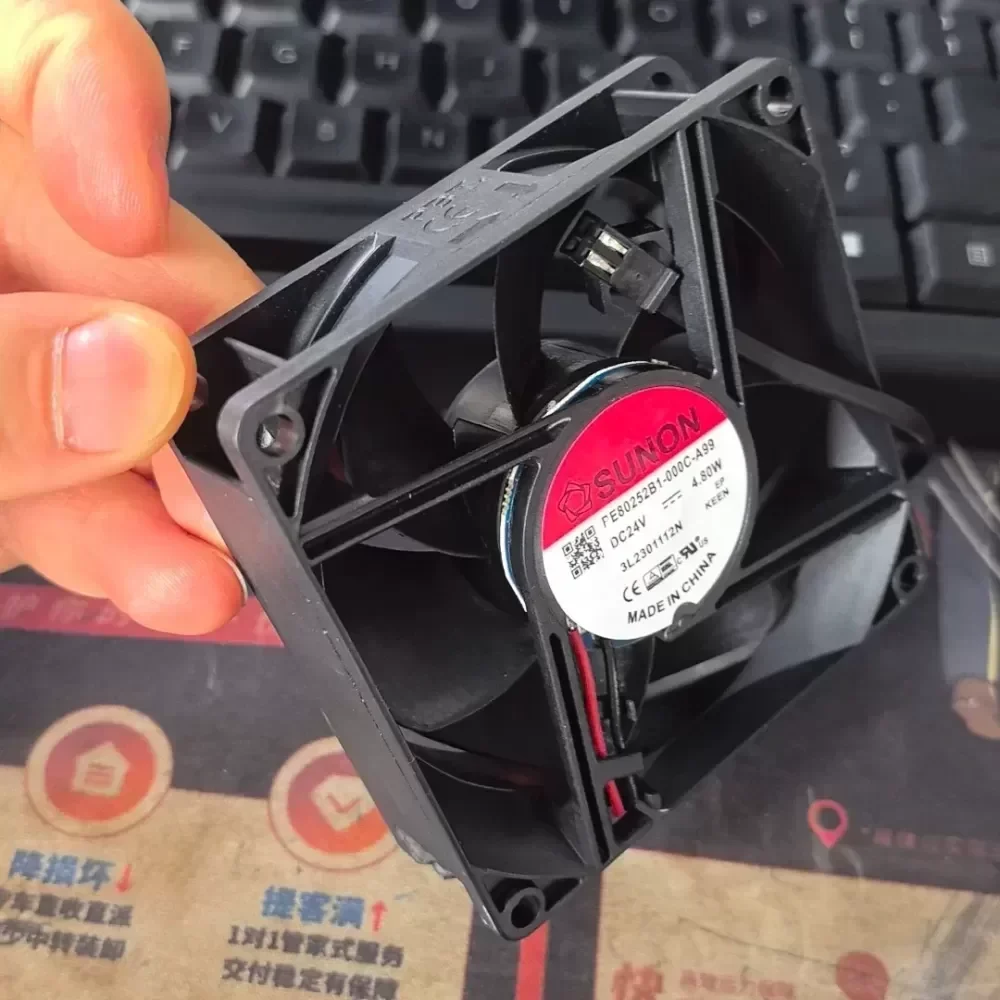

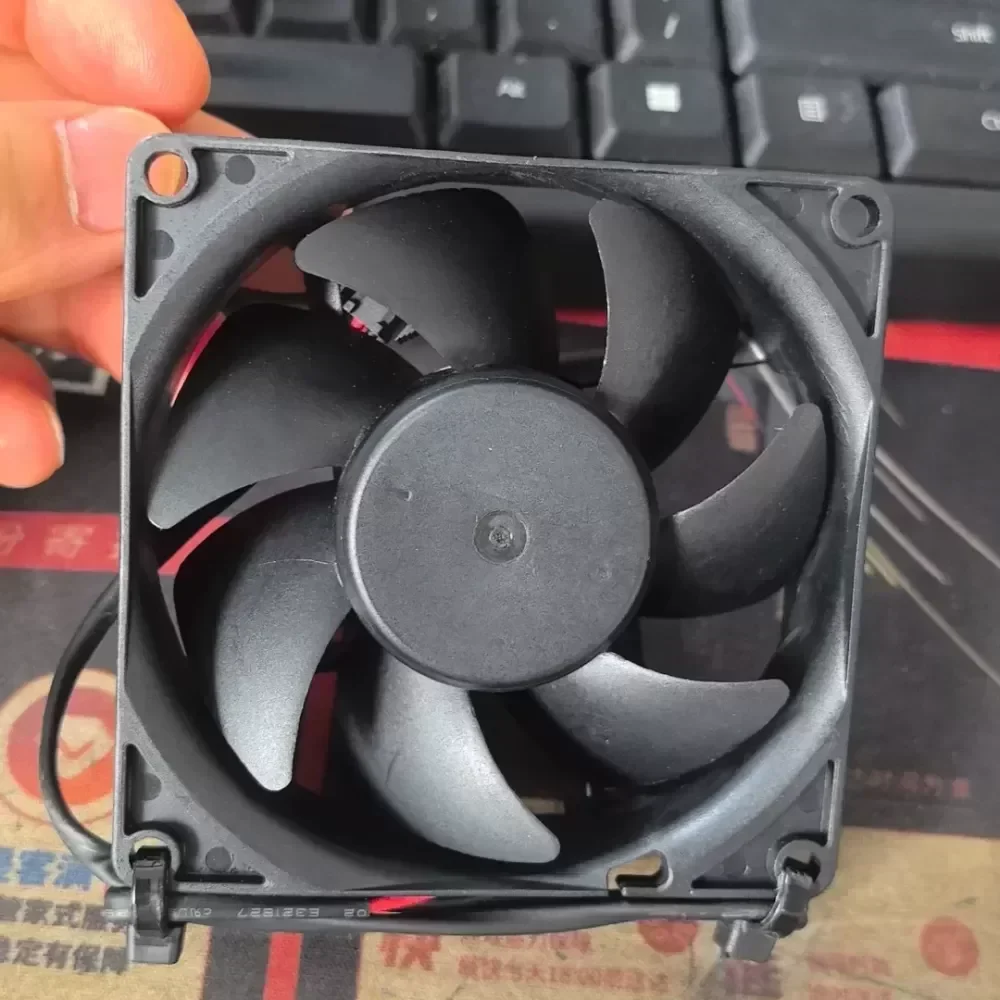

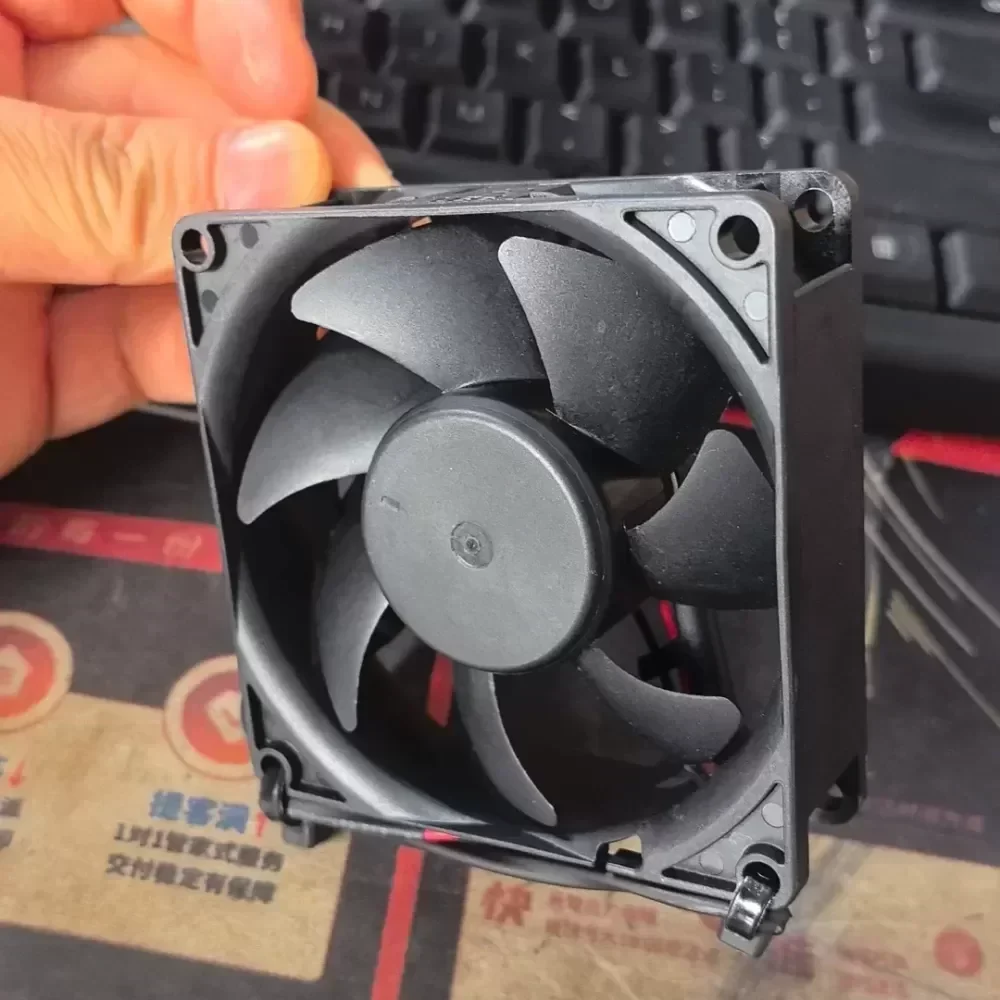

PE80252B1-000C-A99 SUNON fan

Name: PE80252B1-000C-A99 SUNON fan
Brand: SUNON
SKU: 919528650041
Availability: InStock
Rating: 5 (4 reviews)

$5.00

SKU: 919528650041 Brand: SUNON

Description
Reviews (0)

Description

The SUNON PE80252B1-000C-A99 is a high-performance DC axial fan engineered specifically for thermal management in industrial power electronics, particularly variable frequency drives (VFDs) and server power supplies. Utilizing SUNON’s advanced motor technology and a precision ball bearing system, this unit delivers sustained airflow under high static pressure conditions, ensuring optimal heat dissipation for sensitive inverter components. This model is designed to withstand continuous operation in demanding environments, offering superior reliability compared to sleeve-bearing alternatives.

Technical Specifications:
Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
Model Number: PE80252B1-000C-A99
Series: PE (High Performance)
Component Type: DC Brushless Axial Fan
Dimensions: 80 mm x 80 mm x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 VDC to 27.6 VDC
Power Consumption: 4.8 W
Rated Current: 0.20 A
Bearing System: Precision Dual Ball Bearing
Rotational Speed: 4800 RPM ± 15%
Maximum Airflow: 60.0 CFM (1.69 m³/min)
Static Pressure: 0.41 Inch-H2O
Acoustic Noise: 47.5 dB(A)
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Insulation Class: Class A
Insulation Resistance: 10M Ohms at 500 VDC
Dielectric Strength: 500 VAC for 1 Minute
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Protection: Auto Restart / Polarity Protection
Termination: Lead Wires (UL1007, 24AWG)
Weight: 91 g
Safety Approvals: UL, CUR, TUV, CE

Industrial Application:
This 80mm form factor unit is critical for forced convection cooling within high-density inverter cabinets and automation control panels. The high static pressure profile allows the fan to overcome airflow impedance caused by dense heatsink fins and dust filters found in industrial automation environments. By maintaining Original Engineering specifications, this fan ensures Technical Compatibility with existing thermal control logic, preventing thermal shutdowns in continuous-duty machinery. Please verify your specific connector requirements to ensure immediate integration. Contact our team for current Lead Time and bulk procurement availability.

PE80252B1-000C-A99 SUNON fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
