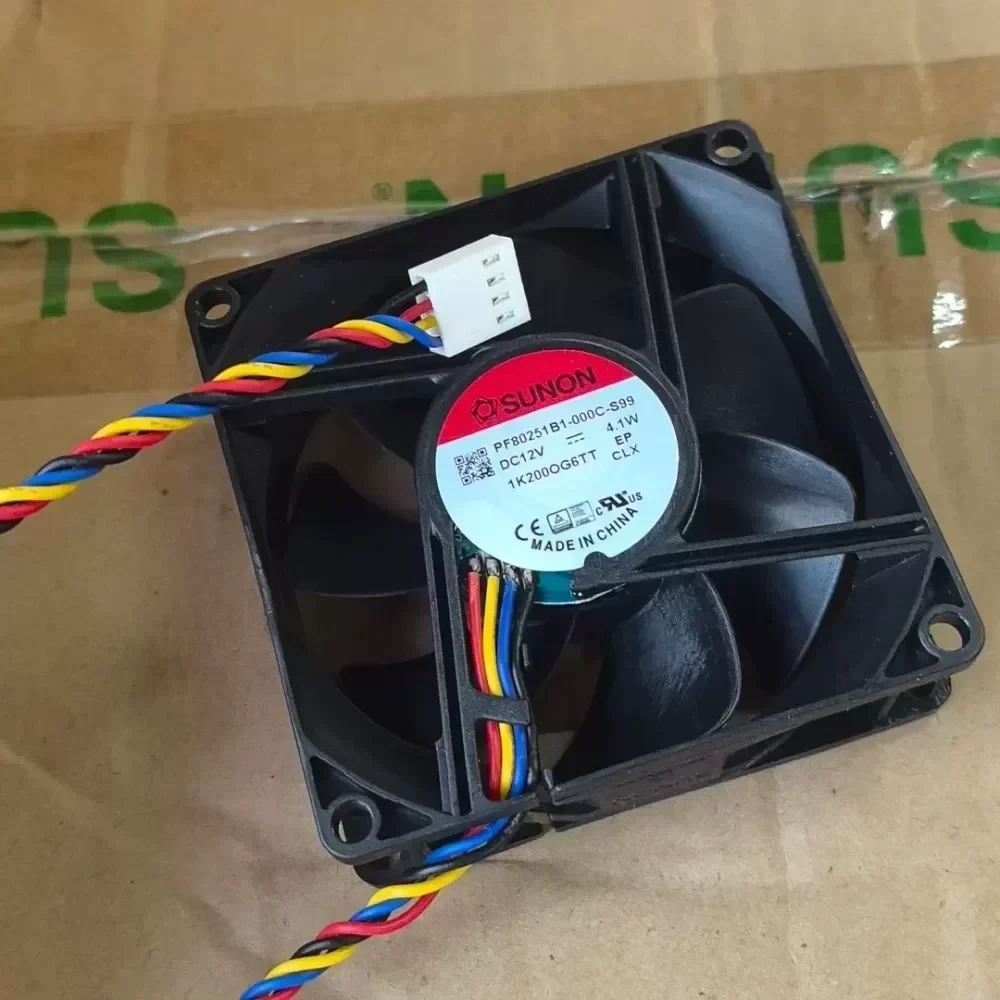

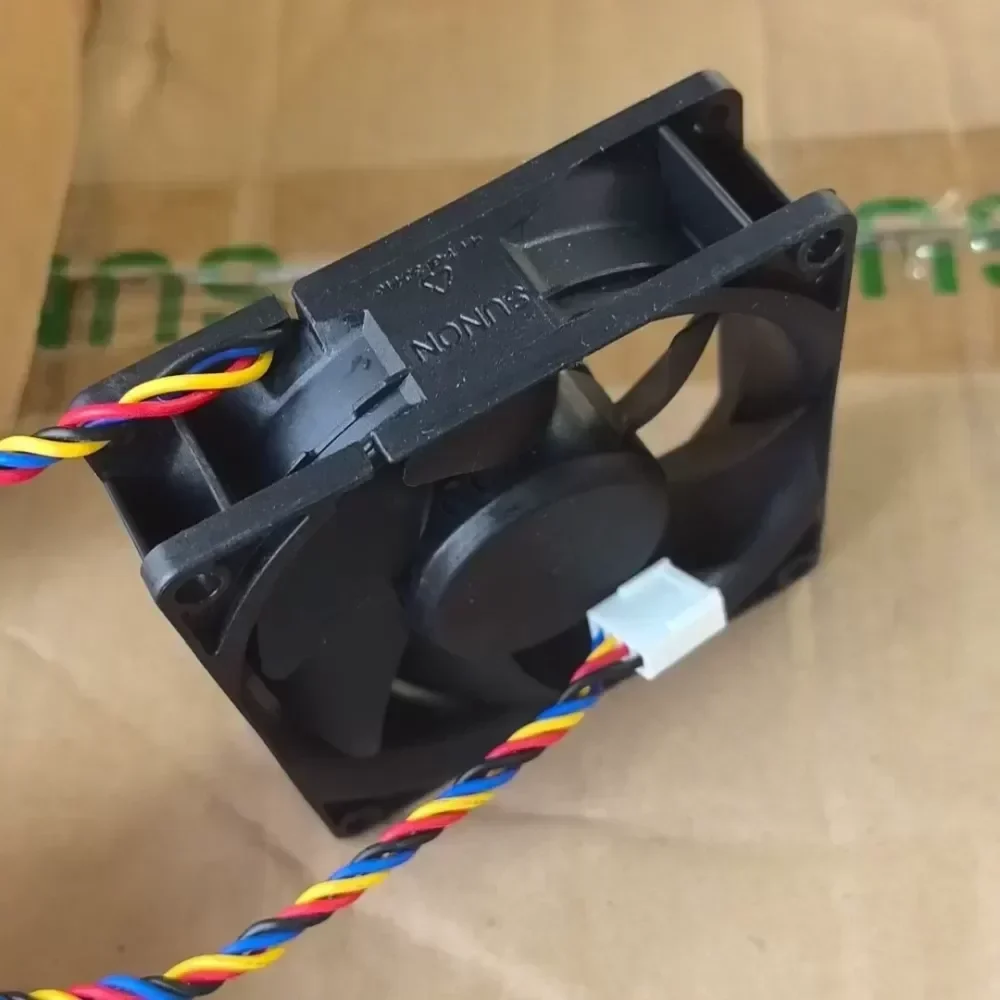

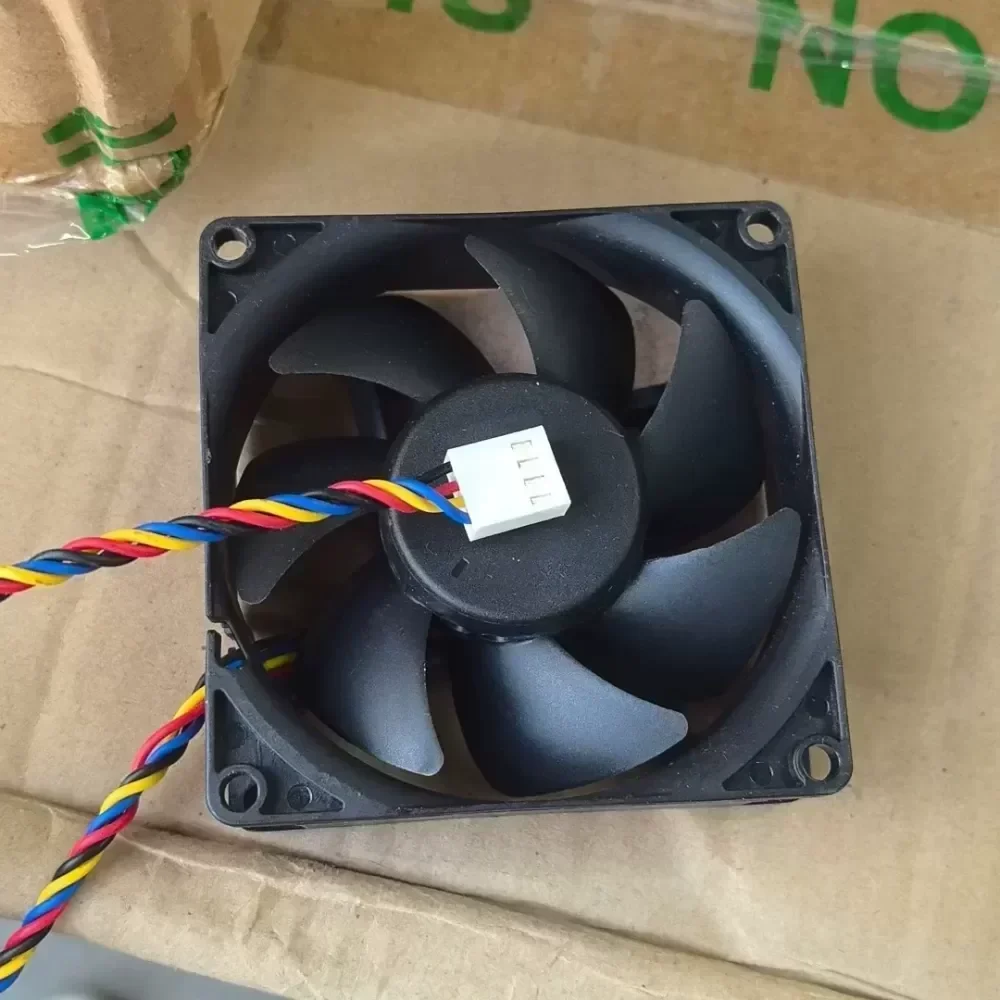

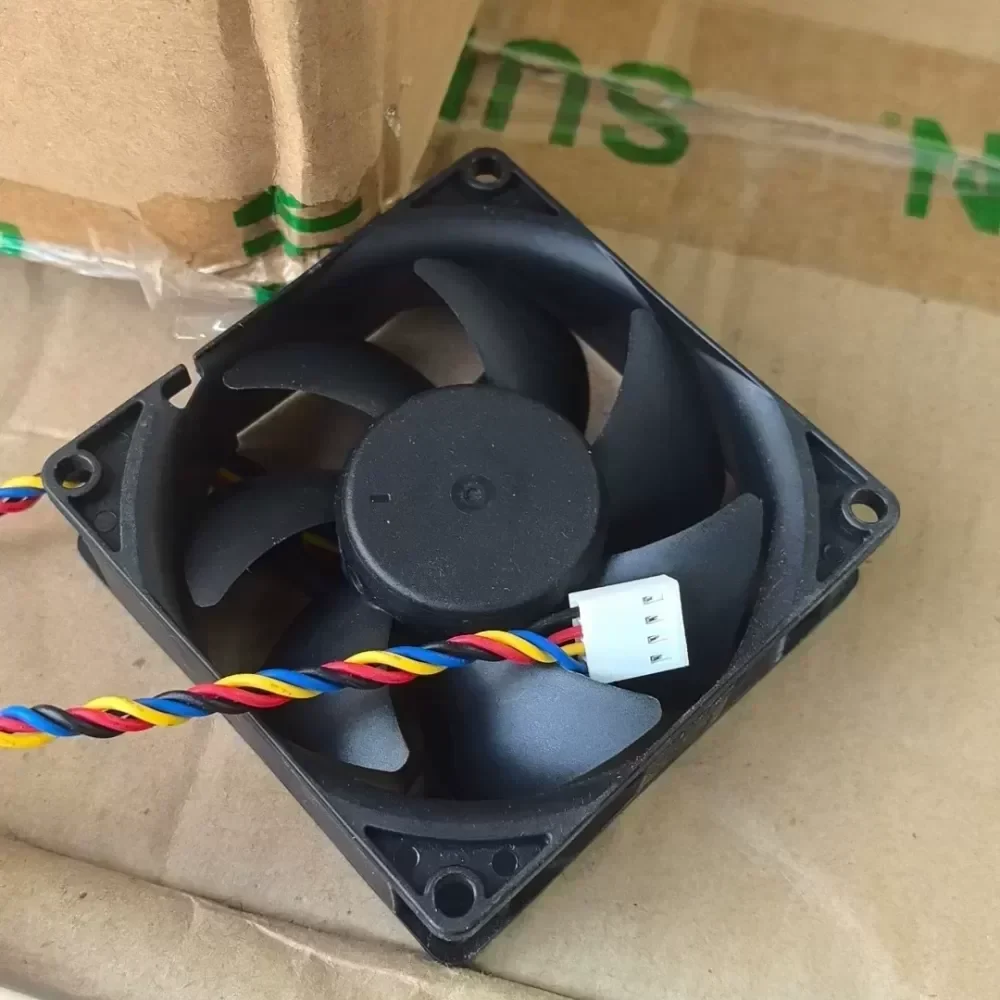

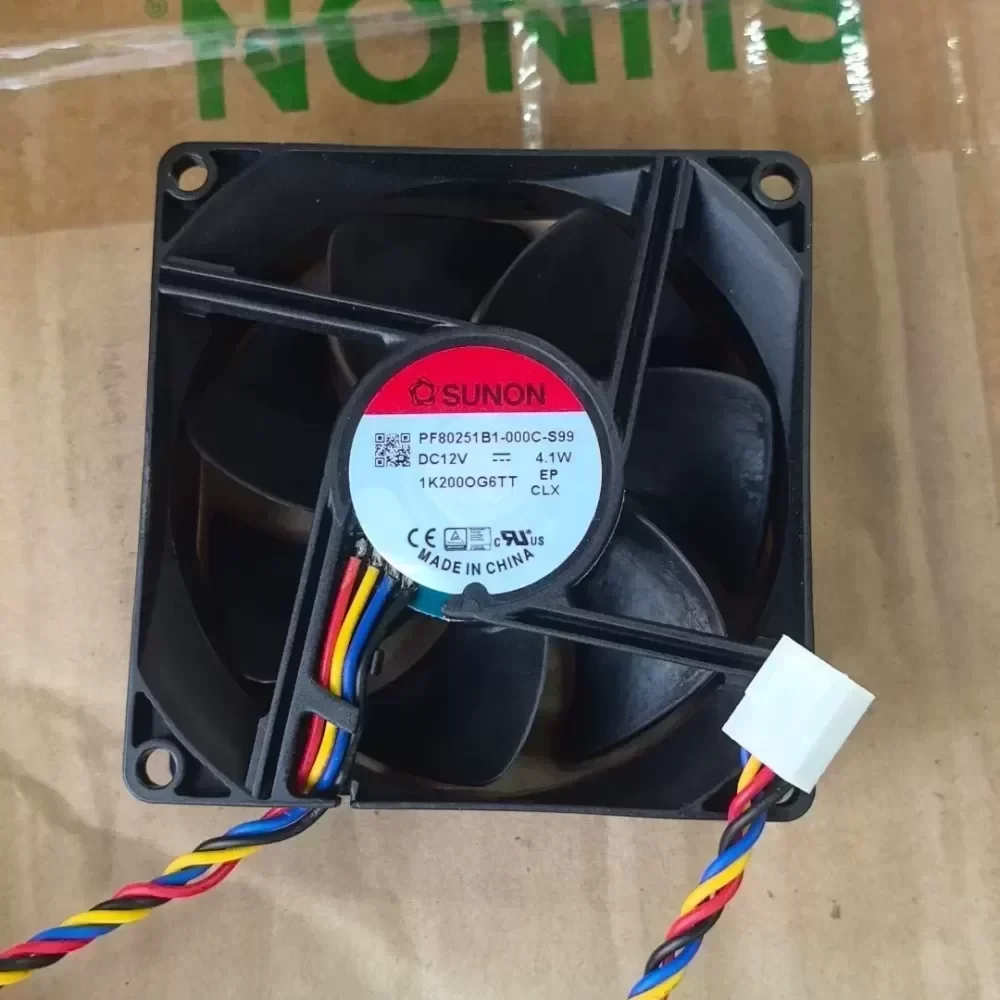

PF80251B1-000C-S99 SUNON 12V fan

Name: PF80251B1-000C-S99 SUNON 12V fan
Brand: SUNON
SKU: 921118403217
Availability: InStock
Rating: 5 (4 reviews)

$4.43

SKU: 921118403217 Brand: SUNON

Description
Reviews (0)

Description

The SUNON PF80251B1-000C-S99 is a high-performance DC axial fan engineered for precision thermal management in industrial and server-grade environments. Belonging to the PF Series, this unit utilizes Original Engineering design to deliver high static pressure and airflow relative to its standard 80mm form factor. The 4-wire configuration indicates integrated Pulse Width Modulation (PWM) speed control and tachometer signal output, ensuring Technical Compatibility with intelligent thermal regulation systems found in rack-mount servers and automation control panels.

Technical Specifications:
Manufacturer: SUNON
Model Number: PF80251B1-000C-S99
Component Type: High-Static Pressure DC Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12 VDC
Power Rating: 4.1 W
Rated Current: 0.34 A
Bearing System: Precision Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Signal Output: 3rd Wire Tachometer / 4th Wire PWM
Airflow Direction: Struts to Label
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature Range: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Termination: 4-Wire Lead with Connector
Weight: 91 g

Industrial Application:
This specific model is optimized for high-density electronic enclosures requiring active variable speed cooling. The 4.1W power rating suggests a high-RPM profile, making it suitable for forcing air through restrictive intake grills or dense heat sinks in 2U/3U server chassis or telecommunications power supplies. The PWM functionality allows the system to modulate fan speed based on real-time thermal loads, extending the lifecycle value and reducing acoustic noise during idle periods. Immediate availability reduces Lead Time for critical maintenance operations.

PF80251B1-000C-S99 SUNON 12V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
