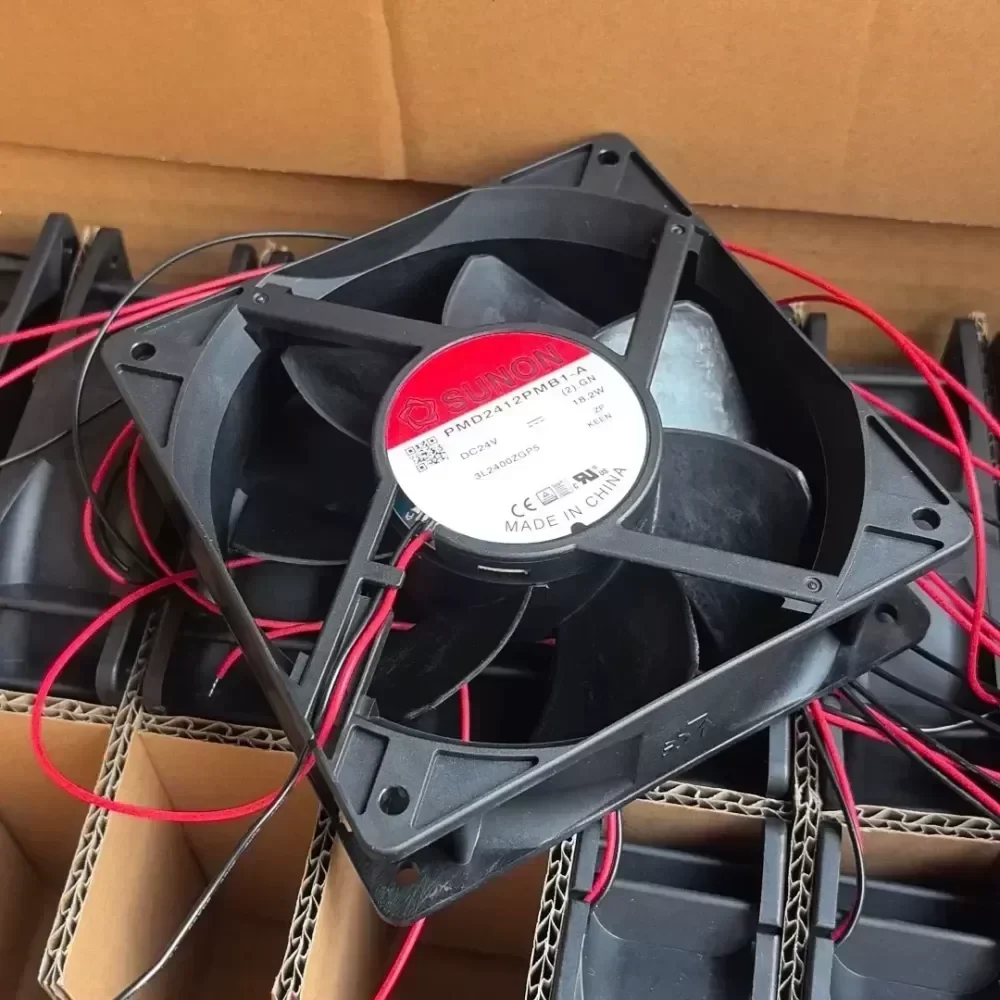

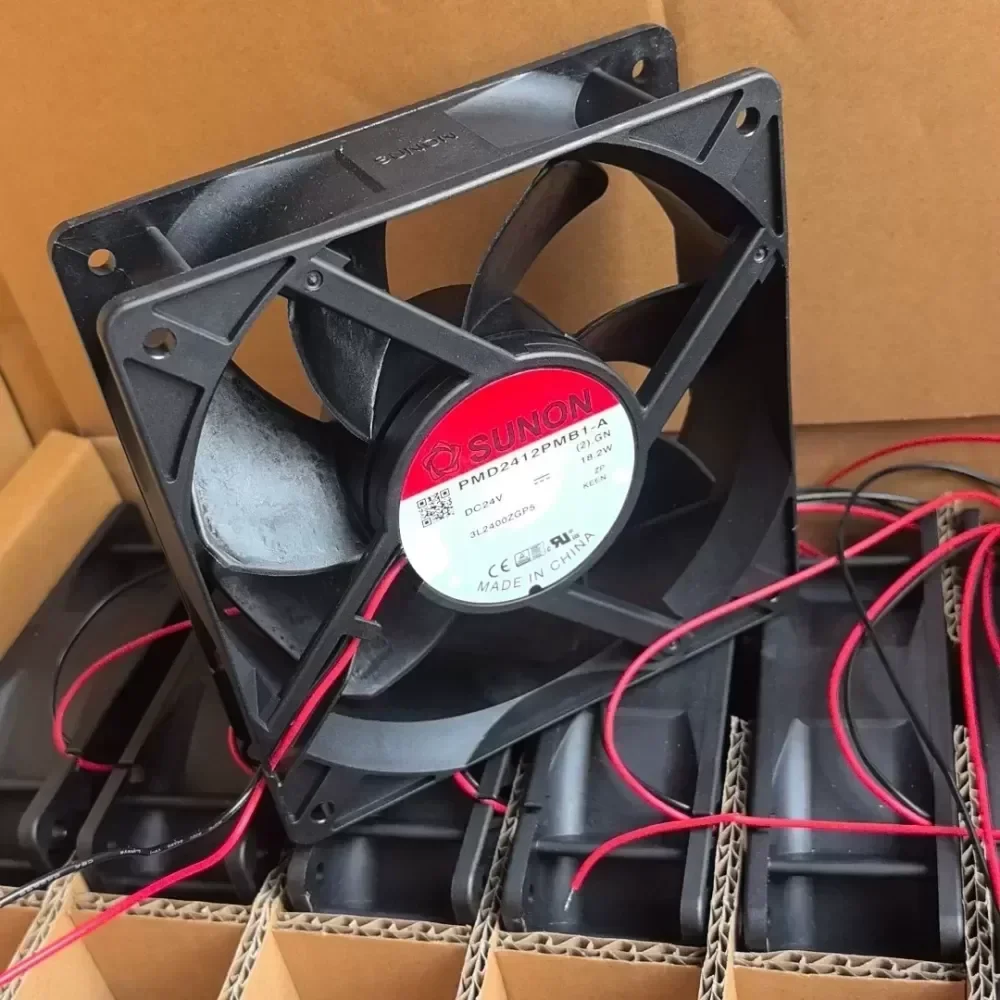

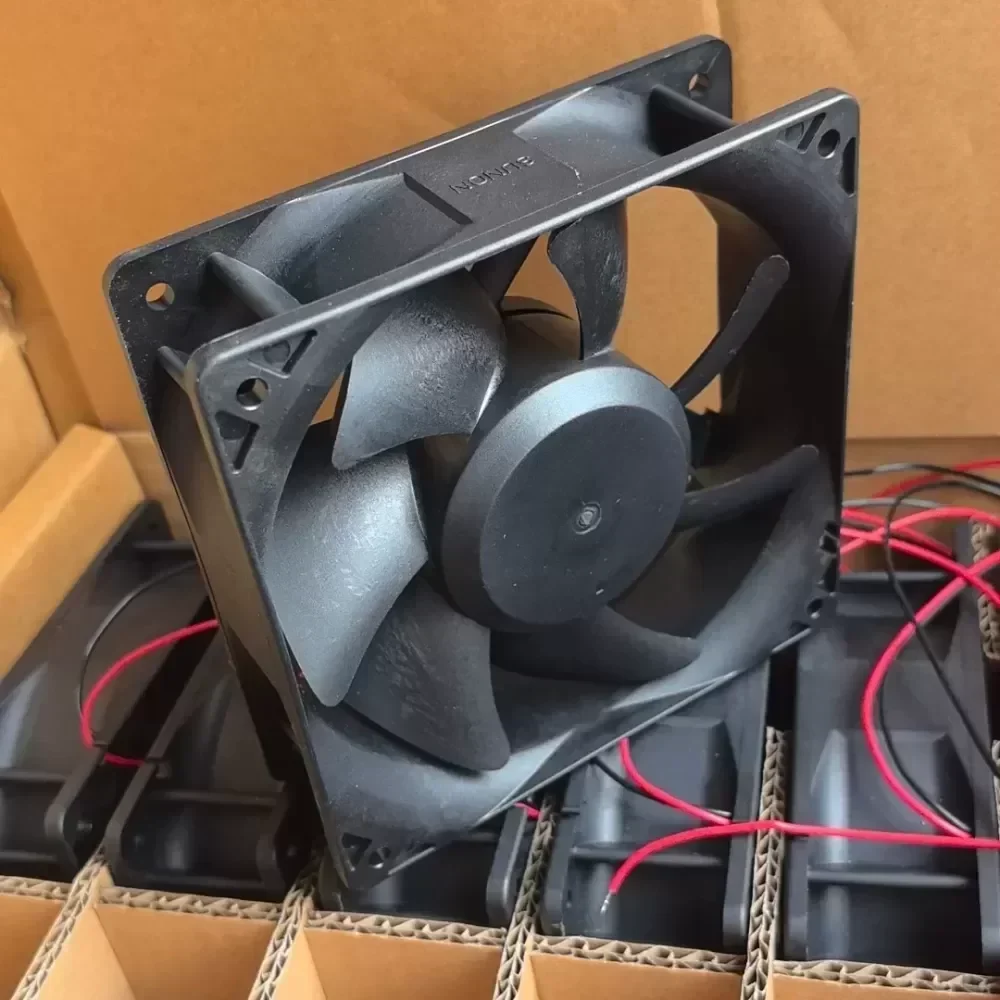

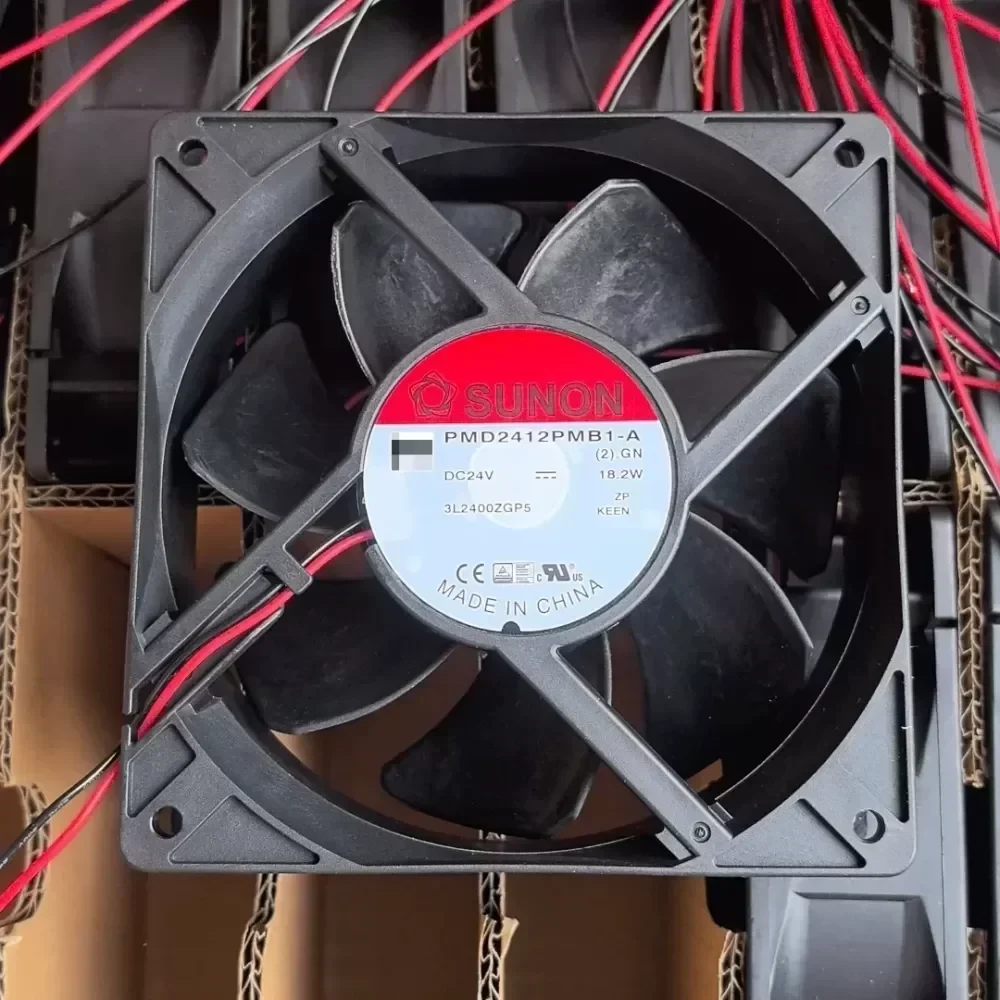

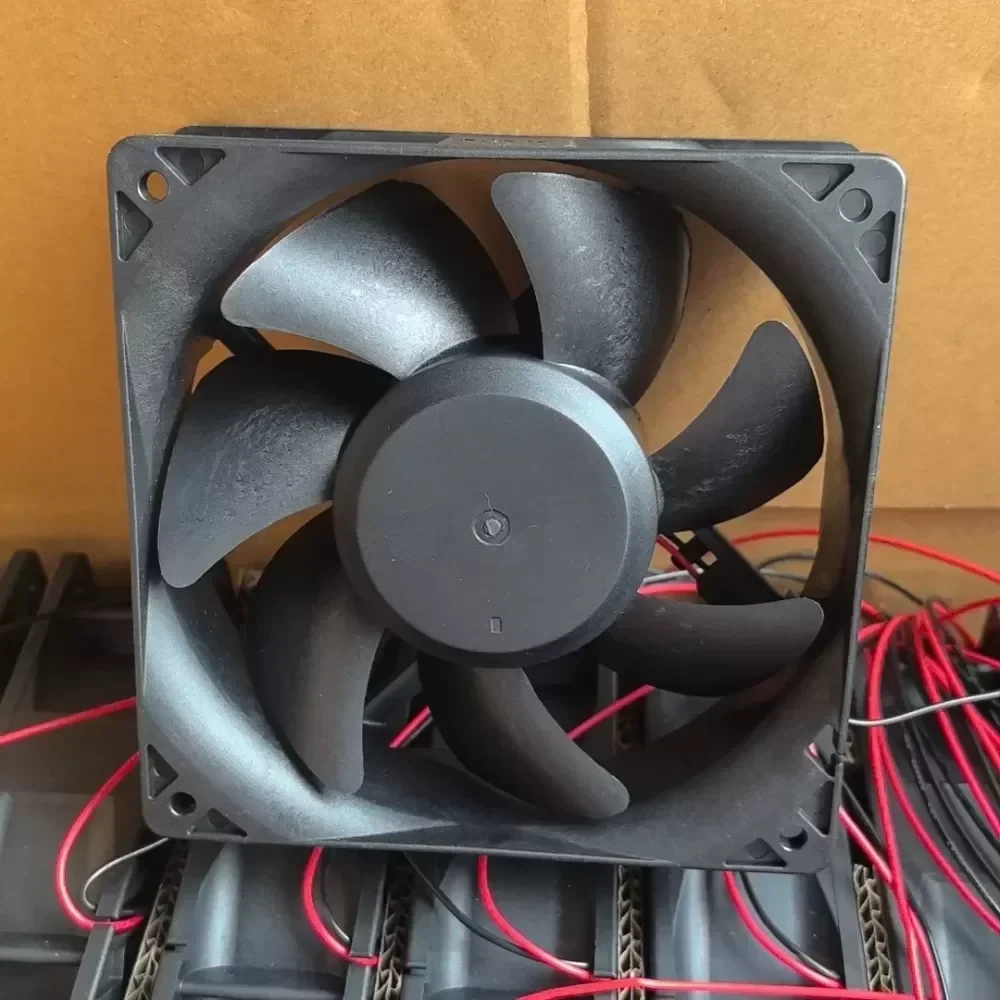

PMD2412PMB1-A SUNON fan

Name: PMD2412PMB1-A SUNON fan
Brand: SUNON
SKU: 920059301363
Availability: InStock
Rating: 5 (4 reviews)

$10.71

SKU: 920059301363 Brand: SUNON

Description
Reviews (0)

Description

The SUNON PMD2412PMB1-A is a high-performance DC axial fan belonging to the Power Motor (PMD) series, engineered specifically for forced-air cooling in high-impedance systems. This unit utilizes a dual ball bearing system to ensure operational stability under high thermal loads and continuous duty cycles, distinguishing it from standard sleeve-bearing alternatives. With a power rating of 18.2 W, this model delivers exceptional airflow and static pressure, making it a critical component for maintaining thermal equilibrium in power electronics. The robust PBT thermoplastic construction ensures resistance to environmental stress and flammability.

TECHNICAL SPECIFICATIONS:
Manufacturer: Sunon
Model Number: PMD2412PMB1-A
Component Type: High Static Pressure DC Axial Fan
Frame Dimensions: 120 mm x 120 mm x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 VDC – 27.6 VDC
Power Consumption: 18.2 W
Rated Current: 0.76 A
Bearing System: Precision Dual Ball Bearing
Rotational Speed: 4200 RPM ± 10%
Maximum Airflow: 190.0 CFM (Cubic Feet per Minute)
Static Pressure: 0.65 Inch-H2O
Noise Level: 54.0 dBA
Housing Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Weight: 330 g
Termination: Lead Wire (UL1007, 24AWG)

INDUSTRIAL APPLICATION:
This specific fan profile is optimized for Variable Frequency Drives (VFDs), industrial power inverters, and server cabinet chassis where dense heatsink fin configurations create significant airflow resistance. The high static pressure capability allows the PMD2412PMB1-A to push air effectively through restricted channels, preventing thermal shutdown in critical automation equipment. We guarantee Original Engineering specifications to ensure full Technical Compatibility with existing thermal management subsystems. Please verify current Lead Time for bulk procurement.

PMD2412PMB1-A SUNON fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
