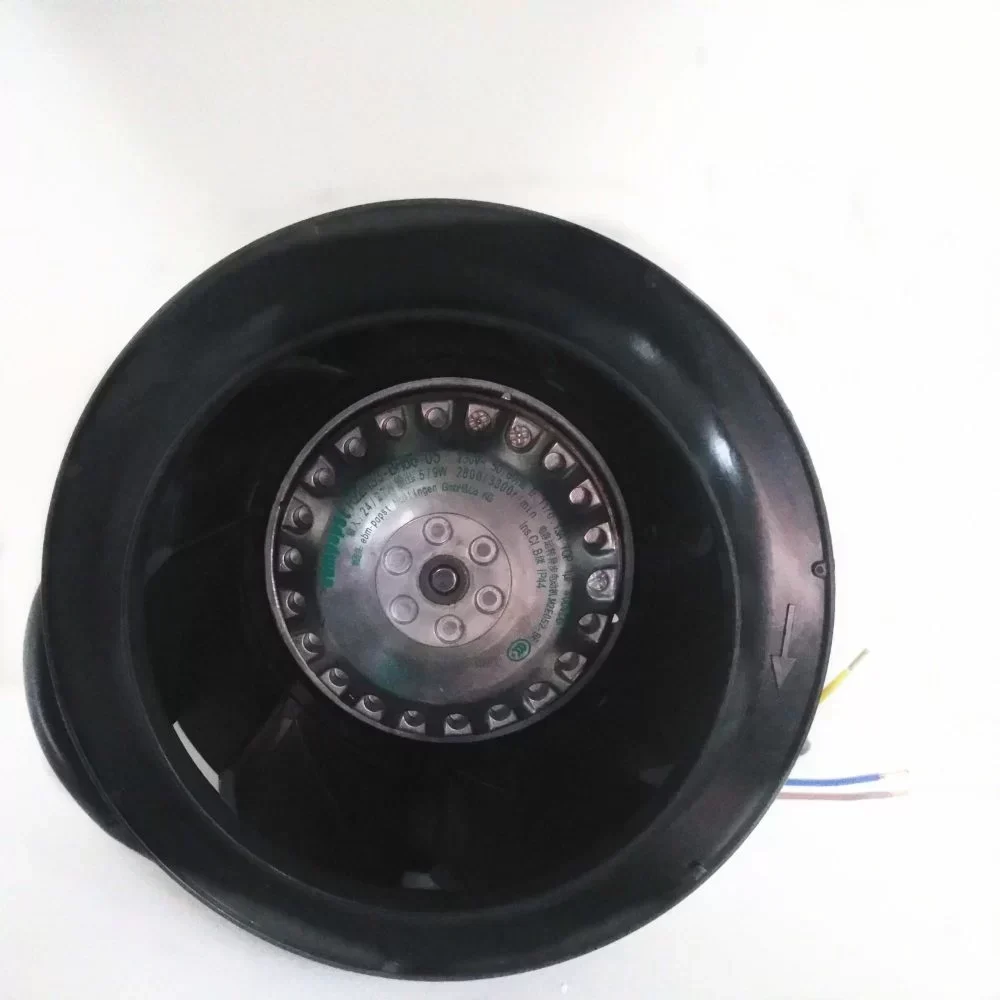

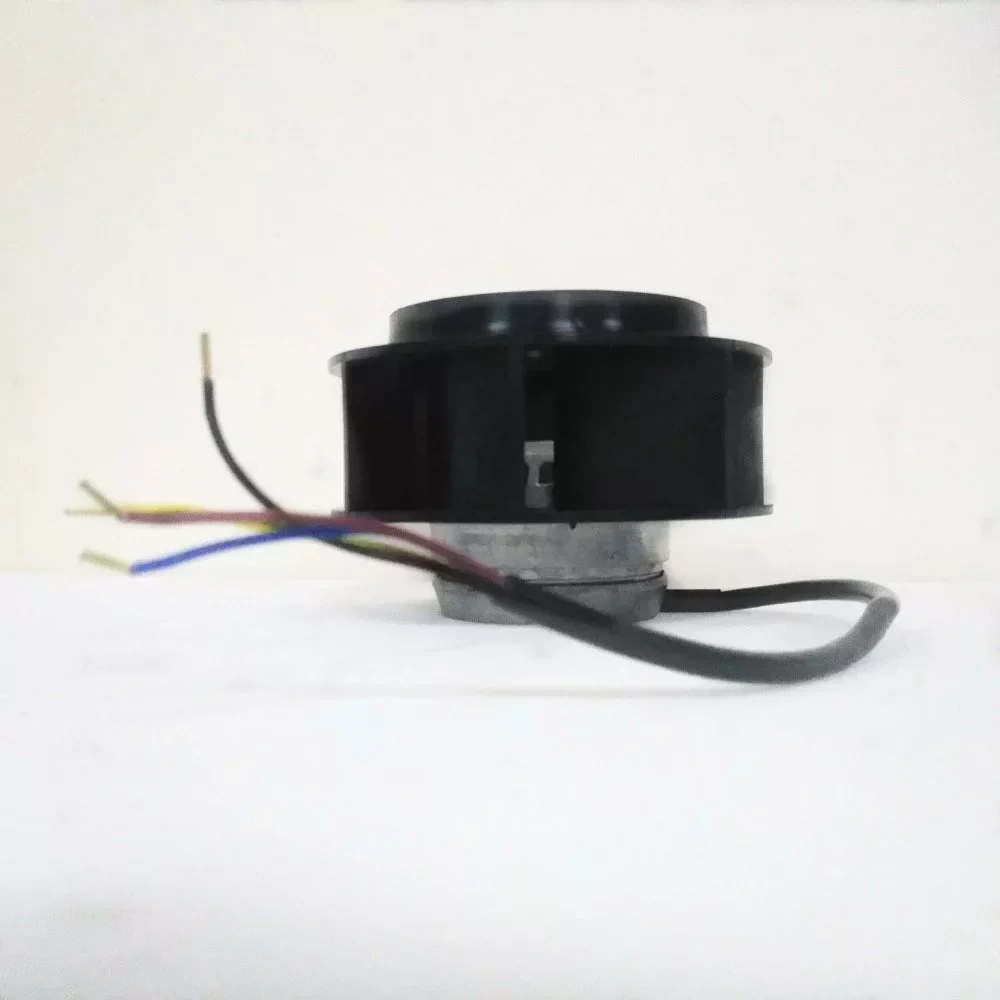

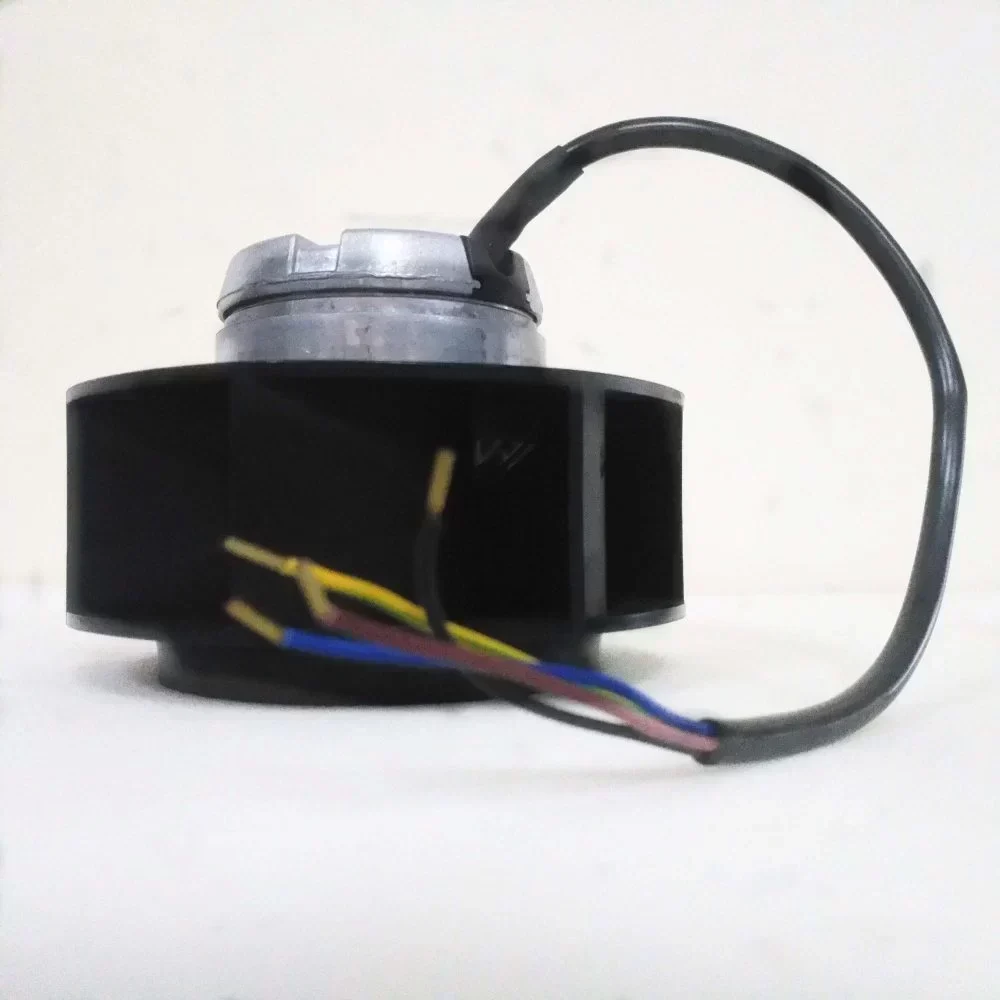

R2E133-BH66-05 ebmpapst Centrifugal Fan ebmpapst Type: R2E133-BH66-05 230V 133 mm

R2E133-BH66-05 ebmpapst Centrifugal Fan ebmpapst Type: R2E133-BH66-05 230V 133 mm

Name: R2E133-BH66-05 ebmpapst Centrifugal Fan ebmpapst Type: R2E133-BH66-05 230V 133 mm
Brand: ebmpapst
SKU: 60820256255
Availability: InStock
Rating: 5 (4 reviews)

$35.00

SKU: 60820256255 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst R2E133-BH66-05 is a high-efficiency backward-curved centrifugal fan designed for precision thermal management in compact industrial applications. Built upon the robust M2E052-BF AC external rotor motor platform, this motorized impeller delivers a high power density ratio, ensuring reliable airflow against significant static pressure. This unit represents Original Engineering standards, guaranteeing optimal lifecycle performance and vibration-free operation in continuous duty cycles.

Technical Specifications:
Manufacturer: ebmpapst
Model Reference: R2E133-BH66-05
Product Type: Single Inlet Centrifugal Fan
Motor Technology: AC External Rotor (M2E052-BF)
Impeller Diameter: 133 mm
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Phase Configuration: 1~ (Single Phase)
Power Consumption: 24 W (50 Hz) / 27 W (60 Hz)
Current Draw: 0.11 A (50 Hz) / 0.12 A (60 Hz)
Nominal Speed: 2750 RPM (50 Hz) / 3200 RPM (60 Hz)
Max Airflow: 290 m³/h
Impeller Material: PA6 Plastic (Fiberglass-reinforced)
Bearing System: Maintenance-free Ball Bearings
Direction of Rotation: Clockwise (viewed toward rotor)
Insulation Class: B
Motor Protection: Thermal Overload Protector (TOP) wired internally
Ingress Protection Rating: IP44
Capacitor Requirement: 2.0 µF / 400 VDB
Acoustic Noise Level: 56 dB(A)
Ambient Temperature Range: -25°C to +70°C
Weight: 0.7 kg
Mounting Orientation: Variable
Certifications: CE, CCC, VDE

Industrial Application:
This specific fan model is engineered for high-resistance ventilation scenarios, specifically within compact control cabinets, frequency converters, and medical device cooling systems. The backward-curved blade geometry allows the R2E133-BH66-05 to generate necessary pressure build-up to overcome the impedance of dense electronic components and filters, preventing thermal throttling in critical automation hardware.

Procurement & Logistics:
Ensure Technical Compatibility with your specific enclosure geometry and voltage requirements. Contact us for current Lead Time information to align with your maintenance schedules or OEM production runs.

Mounting: Any
Voltage: 230V
Blade Material: Plastic
Warranty: 1 Year
After-sales Service Provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Product name: Ebmpapst centrifugal fan
Size: 133 mm
Motor: M2E052-BF
Bearing Type: Ball bearing
Weight: 0.7 kg
Frequency: 50/60 HZ
Phase: 1~
Air Flow: 290m3/h
Noise: 56
Selling Units: Single item
Single package size: 30X30X30 cm
Single gross weight: 2.000 kg

R2E133-BH66-05 ebmpapst Centrifugal Fan ebmpapst Type: R2E133-BH66-05 230V 133 mm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
