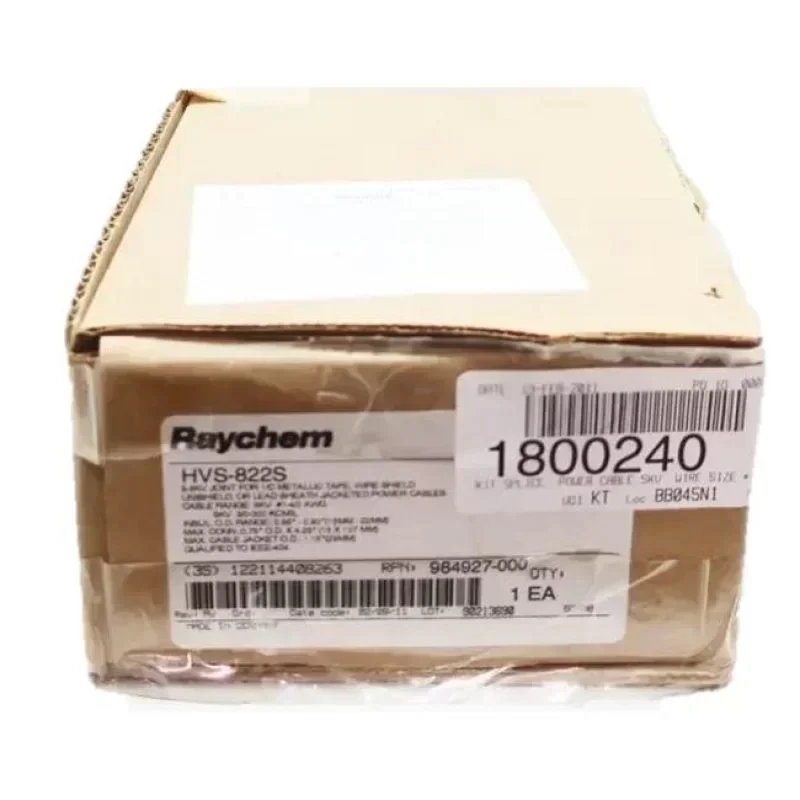

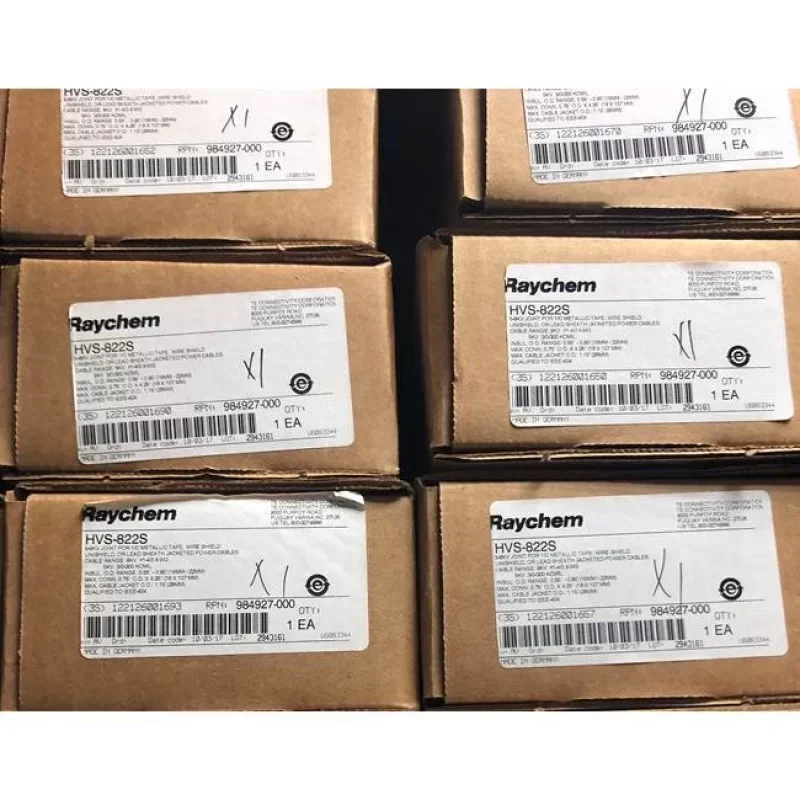

Raychem Polyolefin Heat Shrinkable Splice HVS-822S In-Stock Low Voltage Insulation Materials Certified ROHS Sleeving

Description

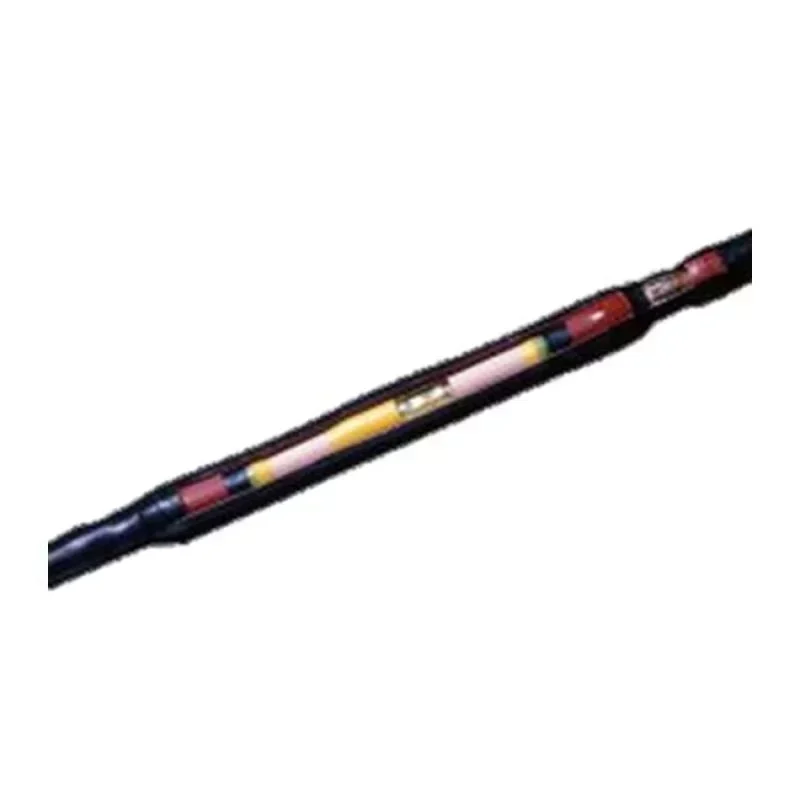

The Raychem HVS-822S is a high-performance heat shrinkable splice kit engineered for medium voltage power cable applications. Utilizing Original Engineering from TE Connectivity, this polyolefin-based system provides superior electrical insulation and environmental protection for cables rated between 5 kV and 8 kV. The HVS-822S is optimized for Technical Compatibility with a wide range of conductor sizes from #1 AWG to 4/0 AWG, ensuring a secure and moisture-proof seal in demanding industrial environments.

Technical Specifications:
Brand: Raychem
Model Number: HVS-822S
Product Type: Heat Shrinkable Splice
Material: Cross-linked Polyolefin
Voltage Class: 5 kV to 8 kV
Conductor Size Range: #1 AWG to 4/0 AWG
Insulation Diameter Minimum: 14 mm
Insulation Diameter Maximum: 23 mm
Maximum Jacket Outside Diameter: 29 mm
Maximum Connector Outside Diameter: 19 mm
Maximum Connector Length: 108 mm
Installed Kit Length: 610 mm
Required Installation Space: 1143 mm
Certification: RoHS Compliant
Place of Origin: India
Shipping Port: Taiwan

Industrial Application:
The HVS-822S is utilized in critical power distribution infrastructure where long-term reliability is paramount. It solves the problem of cable degradation in underground or exposed environments by providing a high-dielectric strength barrier and a permanent moisture seal. This model is essential for maintenance teams requiring minimized Lead Time and guaranteed performance in 5-8 kV splicing operations.

Key Attributes
Place of Origin: India
Brand Name: Raychem
Model Number: HVS-822S
Type: Heat Shrinkable Splice
Material: Polyolefin
Application: Medium Voltage
Rated Voltage: 5-8kV
Product name: Raychem Heat Shrinkable Splice HVS-822S
Voltage Class: 5-8 kV
Conductor Size (AWG/kcmil): #1 - 4/0
Insulation Diameter (min. - max.): 14-23 mm
Jacket O.D. (max.): 29 mm
Maximum Connector Dimensions- OD: 19 mm
Maximum Connector Dimensions-Length: 108 mm
Kit Installed Length: 610 mm
Required Installation Space: 1143 mm

Packaging and Delivery
Port of dispatch: Taiwan
Selling Units: Single item
