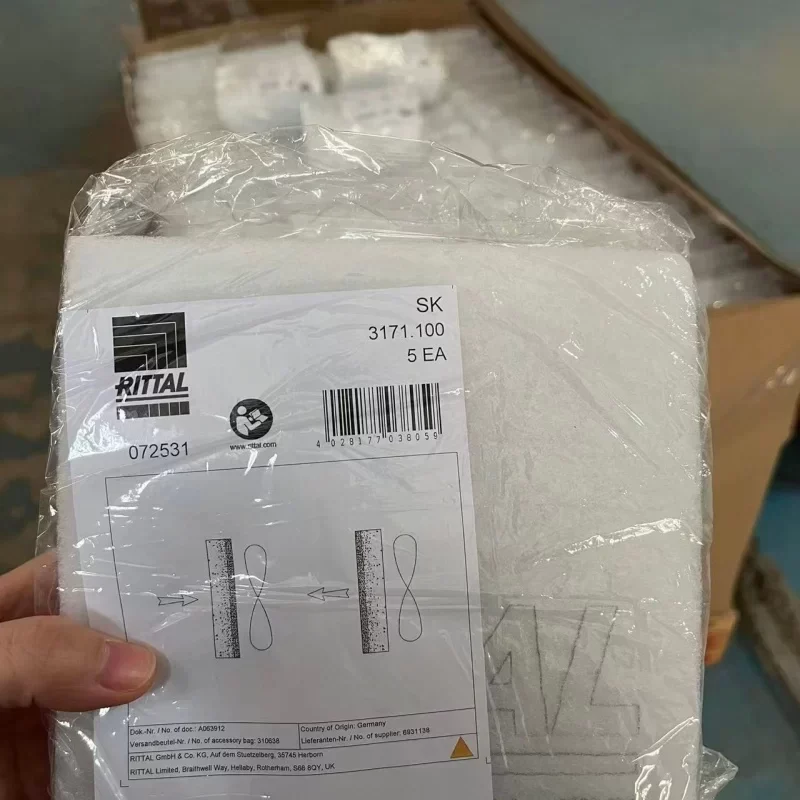

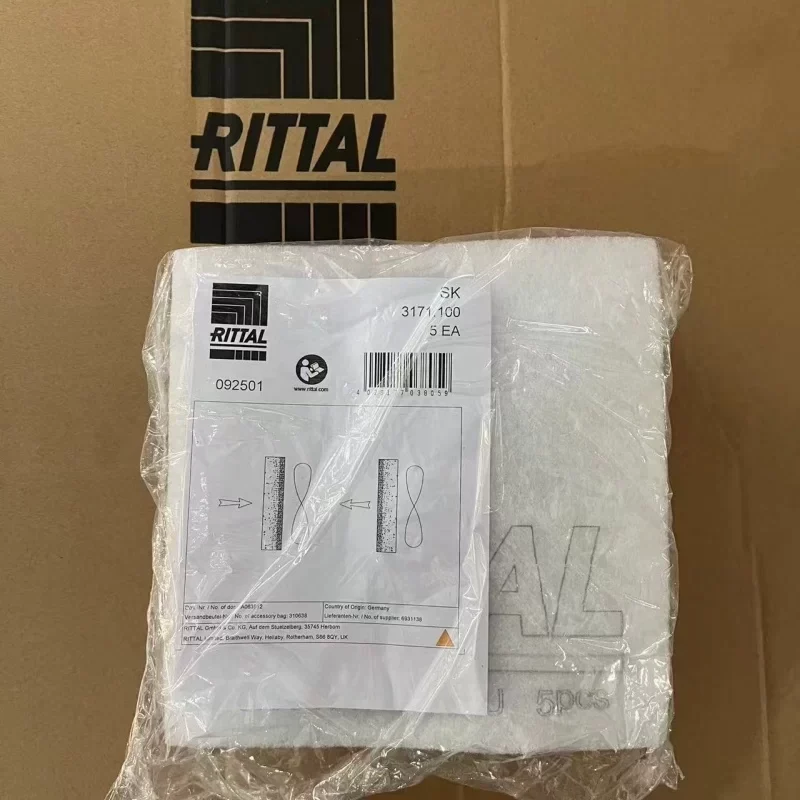

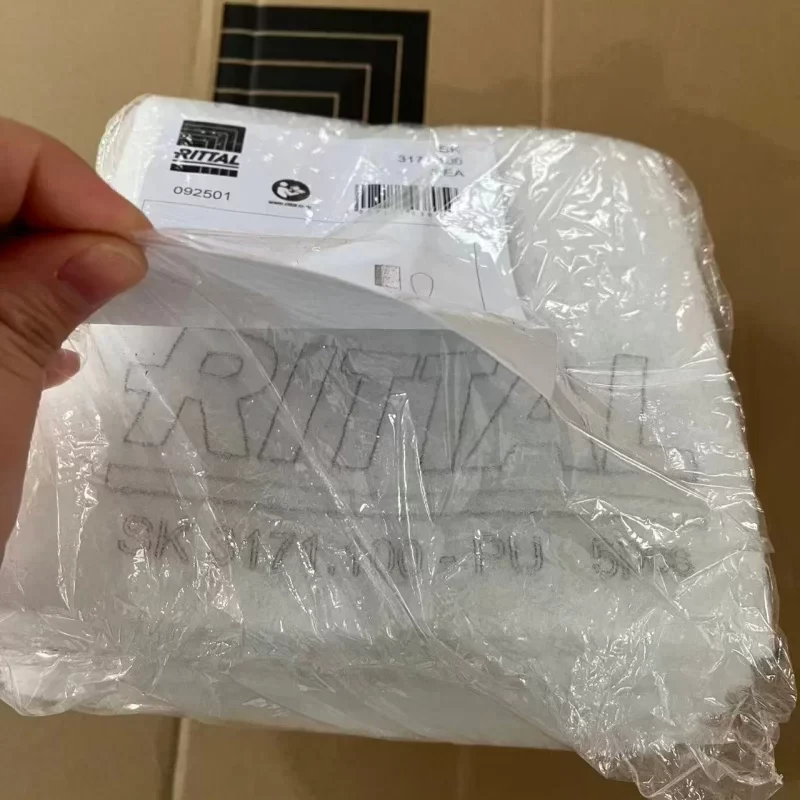

Rittal SK3171.100 Filter Mat G3 173x173mm

Rittal SK3171.100 Filter Mat G3 173x173mm

Name: Rittal SK3171.100 Filter Mat G3 173x173mm
Brand: Rittal
SKU: 11000031774971
Availability: InStock
Rating: 5 (4 reviews)

$1.50

SKU: 11000031774971 Brand: Rittal

Description
Reviews (0)

Description

The Rittal SK 3171.100 is a specialized chopped-fibre filter mat designed for optimal dust protection in industrial enclosure climate control systems. Engineered with a progressive structure, this filter medium effectively separates dust particles from the intake air, ensuring the longevity and reliability of sensitive electronic components housed within Rittal TopTherm fan-and-filter units. This replacement mat is essential for maintaining the requisite IP protection category of the ventilation system, preventing thermal throttling or component failure caused by particulate accumulation.

Intended for industrial maintenance schedules, this G3 class filter offers a balance between high air throughput and effective filtration efficiency. It is temperature resistant up to 80 °C and is self-extinguishing according to DIN 53 438 class F1. Regular replacement of these mats is a critical preventative maintenance step to sustain the factory-rated cooling performance of the enclosure assembly. Ideally suited for manufacturing environments requiring consistent air quality control within electrical cabinets.

Technical Specifications:
Manufacturer: Rittal
Model Number: SK 3171.100
Material: Chemical fibres
Dimensions: 173 mm Width x 173 mm Height x 17 mm Depth
Filter Class: G3 to DIN EN 779
Fits Model Series: SK 3239.xxx Fan-and-Filter Units
Temperature Range: -40 °C to +80 °C
Packaging Unit: 5 pieces
Weight: 0.02 kg
EAN: 4028177038080

Key Attributes
Material: Chemical fibres
Warranty: /
Customized support: /
Place of origin: Germany
Model number: SK 3171100
Brand name: Rittal
Size: 173*173*17mm
Temperature resistant to: 100℃
Self-extinguishing category: F1 to DIN 53 438
Dust-laden air side: Open structure
Clean-air side: Closed structure
Reliable filtering from particle size of: 10μm
Material: Chemical fibres
Net weight: 0.045kg

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X11 cm
Single gross weight: 0.600 kg

Rittal SK3171.100 Filter Mat G3 173x173mm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
