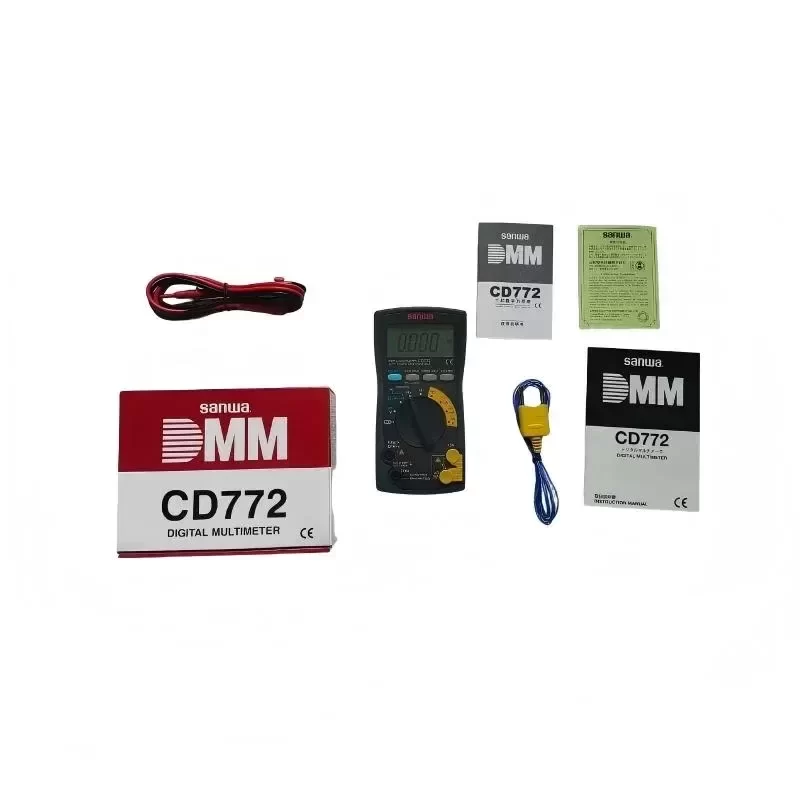

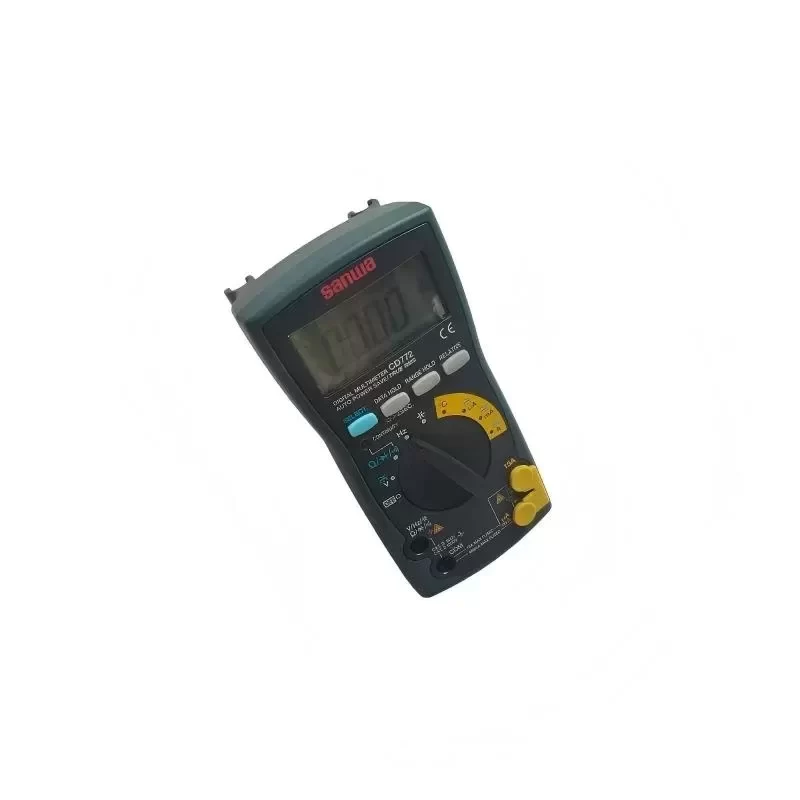

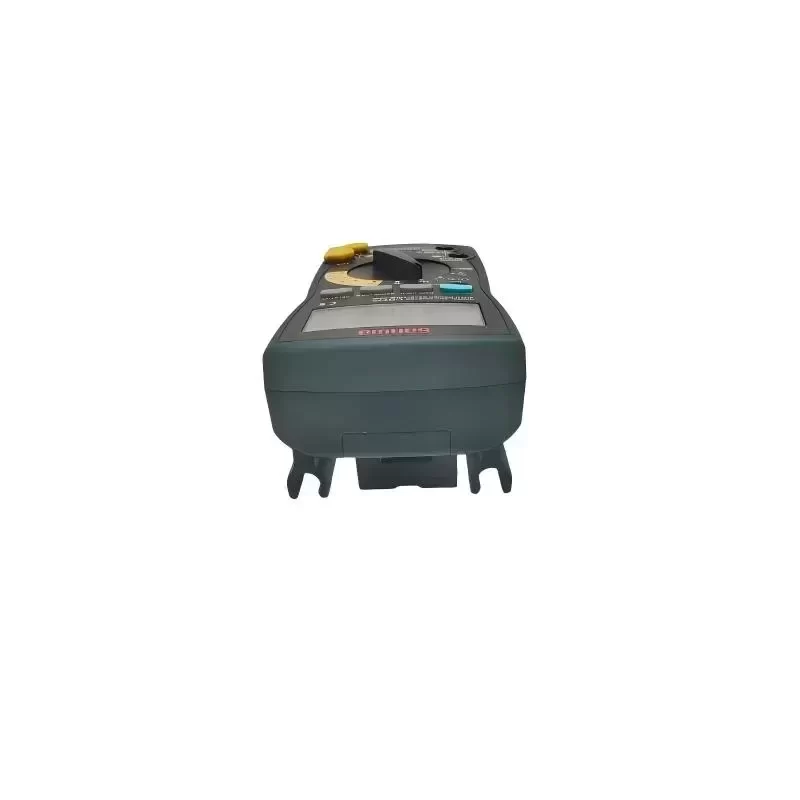

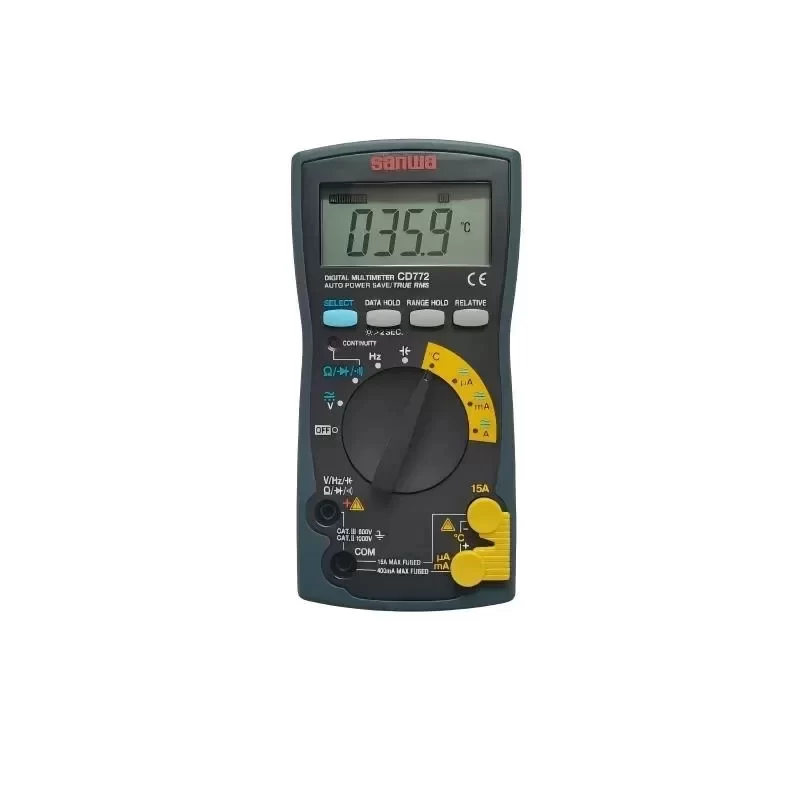

Sanwa CD772 Digital Multimeter with Backlight Temperature Measurement Device

Description

Sanwa CD772 Digital Multimeter with Backlight Temperature Measurement Device

Key Attributes
Accuracy Class: ±(0.5%+2)
Measuring Current Range: 15A
Measuring Voltage Range: 1000V
Parameters Measured: Temperature (K), DC Current, AC Voltage
Place of Origin: Japan
Model Number: CD772
Brand Name: Sanwa
Application: Industrial Use, Household Use
Digits Displayed: 6 Digits
Dimensions: H166 * W82 * D44mm
Feature: Waterproof
Low Battery Indicator: Yes
Material: Plastic
Max. AC Current: 15A
Max. AC Voltage: 1000V
Max. DC Current: 15A
Max. DC Voltage: 1000V
Measuring Capacitance Range: 100μF
Measuring Inductance Range: 100kHz
Measuring Resistance Range: 40M Ω
Operating Temperature: -10 to 50°C
Product Name: Sanwa Digital Multimeter
Model: CD772
DCV: 400m/4/40/400/1000V
ACV: 4/40/400/1000V
DCA: 40m/400m/4/15A
Temperature: -20°C to 300°C
Display: Numeral display 4000
Sampling rate: 3 times/sec.
Bandwidth: 45~500Hz

Packaging and Delivery
Selling Units: Single item
Single package size: 25X16X11 cm
Single gross weight: 0.800 kg
