Sanwa DCM600DR Clamp Meter for Automotive Hybrid Electric Vehicle DC Current DMM Functionality Alternative DCM60R DCM400

Description

Sanwa DCM600DR Clamp Meter for Automotive Hybrid Electric Vehicle DC Current DMM Functionality Alternative DCM60R DCM400

Key Attributes
Max. Ac Current: 600 A
Max. DC Current: 600 A
Measuring Voltage Range: 600V
Place of Origin: Japan
Model Number: DCM600DR
Brand Name: Sanwa
Dimensions: 28*18*15cm
Display Type: Digital Only
Max. Ac Voltage: 600V
Max. DC Voltage: 600 V
Measuring Capacitance Range: ,
Measuring Current Range: 60/600A
Measuring Inductance Range: ,
Measuring Resistance Range: 999.9Ω
Operating Temperature: 32°F to 113°F (0°C to 45°C)
Parameters Measured: DC Current, AC Voltage, DC Voltage, AC Current
Weight: 1.6
Product name: Sanwa
Model: DCM600DR
AC/DC A: 60/600A
AC/DC V: 600V
Resistance: 999.9Ω
Sampling rate: 3 times/sec.
Bandwidth: 50-500Hz
Display: 6000

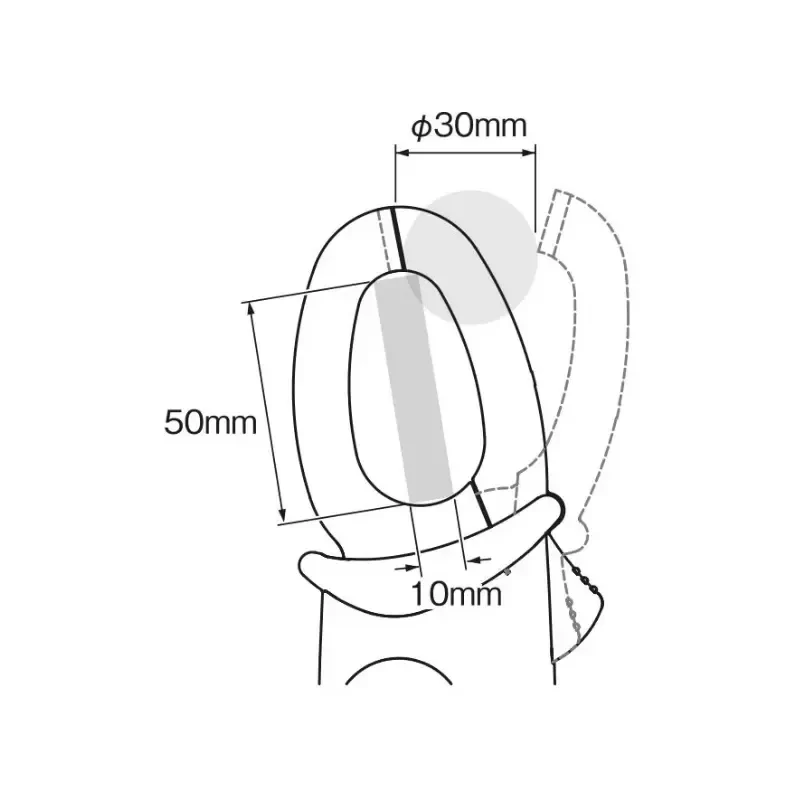

Clamp diameter/Conductor size: 30mm/10x50mm
Battery: 1.5VX2

Packaging and Delivery
Selling Units: Single item
Single package size: 28X20X15 cm
Single gross weight: 2.000 kg
