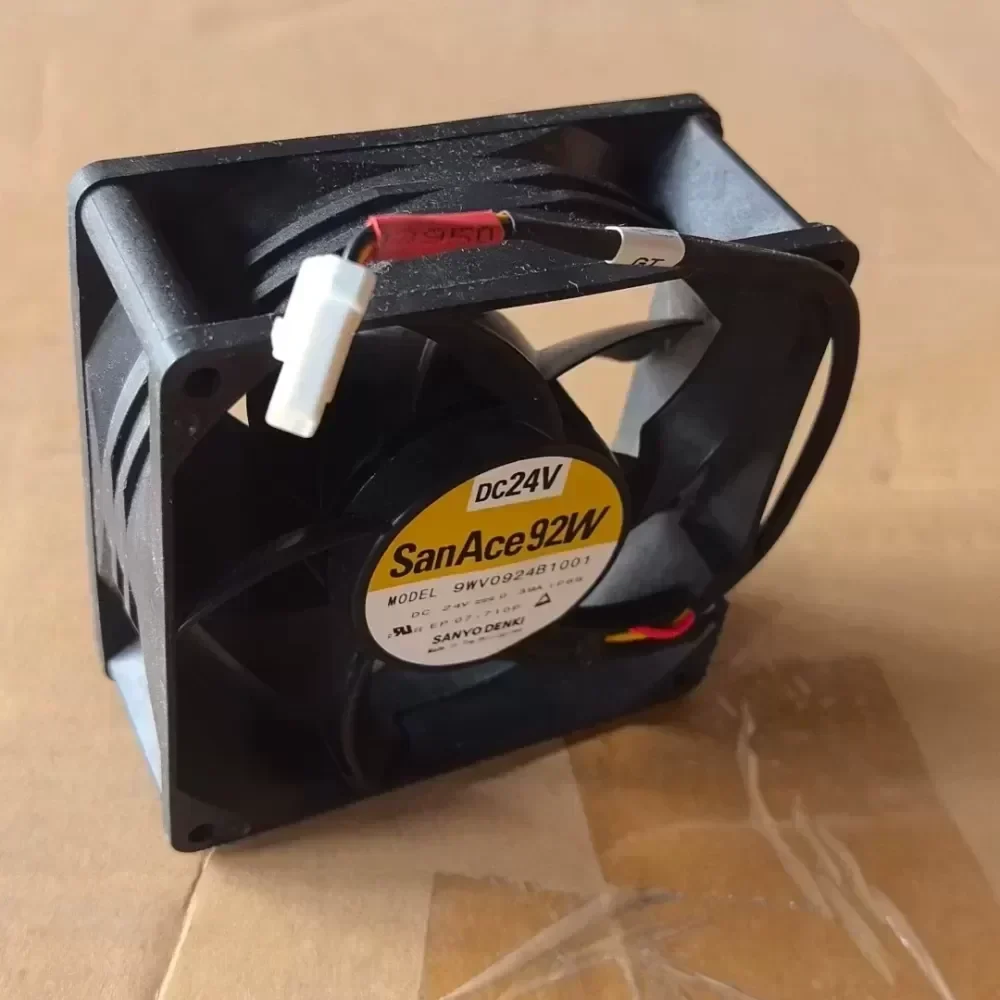

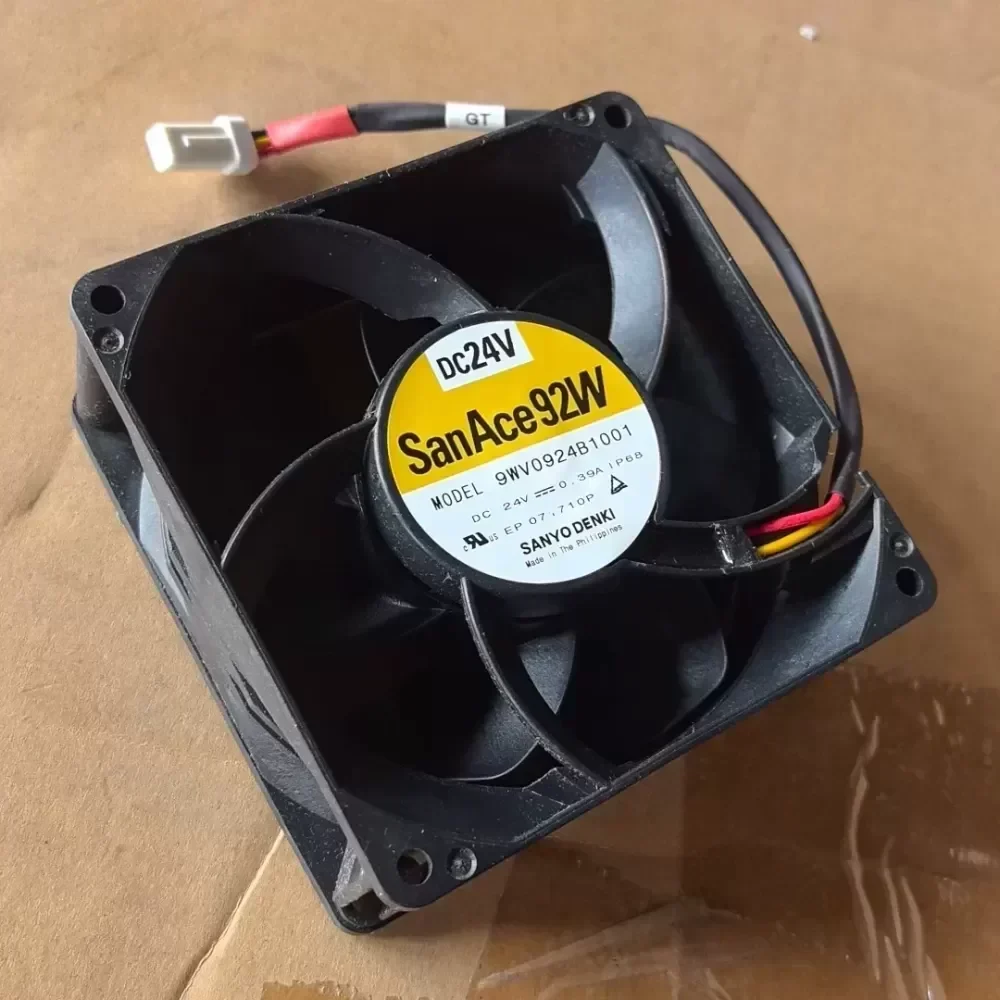

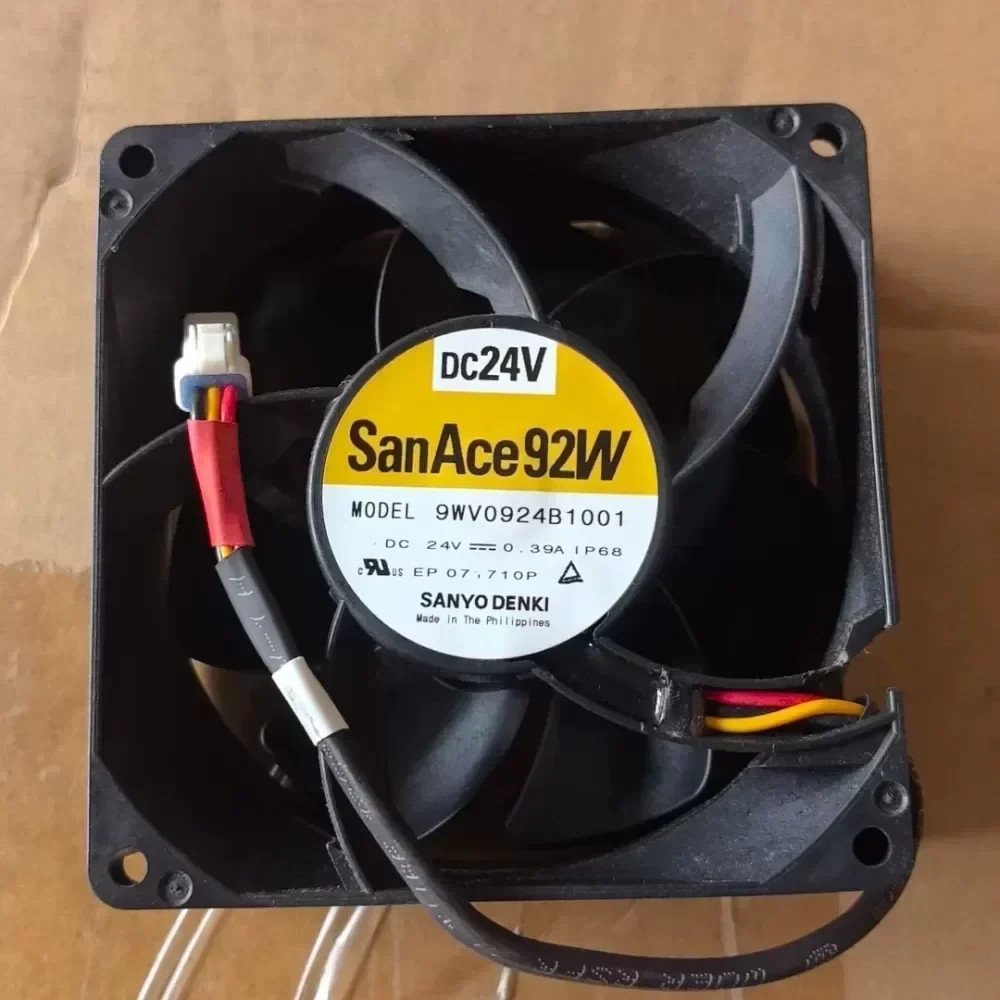

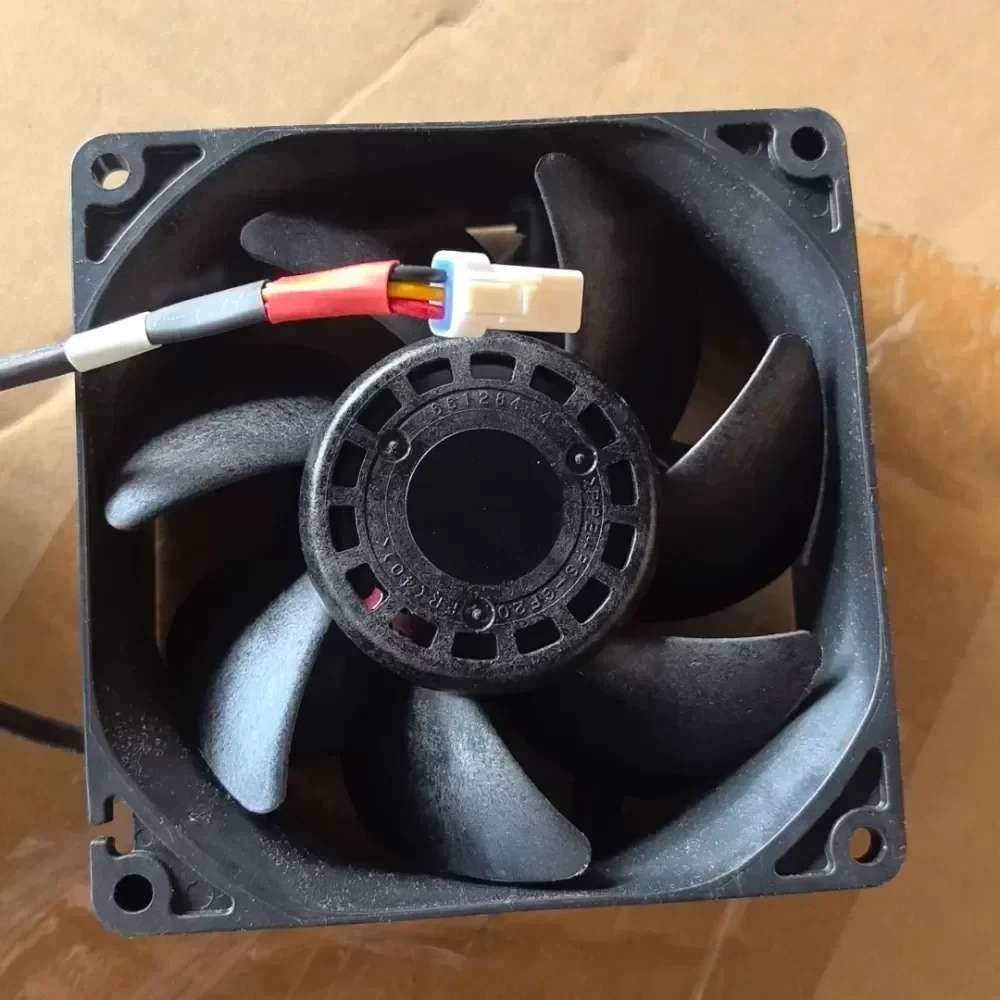

Sanyo SanAce 92W fan 9WV0924B1001

Name: Sanyo SanAce 92W fan 9WV0924B1001
Brand: Sanyo
SKU: 927904981293
Availability: InStock
Rating: 5 (4 reviews)

$23.14

SKU: 927904981293 Brand: Sanyo

Description
Reviews (0)

Description

The Sanyo Denki 9WV0924B1001 is a high-performance cooling solution engineered for environments requiring extreme durability and environmental resistance. Featuring Original Engineering from the San Ace 92W series, this IP68-rated fan is fully protected against dust ingress and high-pressure water jets, making it ideal for outdoor telecommunications cabinets, solar inverters, and marine electronics. The dual ball bearing system ensures a long lifecycle of 180,000 hours, significantly reducing total cost of ownership in remote or hard-to-access installations. The integrated three-wire pulse sensor provides precise speed measurement for system controllers to detect stall conditions or airflow degradation, ensuring Technical Compatibility with advanced thermal management systems. This model ensures stable performance in critical infrastructure where downtime is not an option. Contact for specific Lead Time and technical integration support.

Technical Specifications:
Manufacturer: Sanyo Denki
Series: San Ace 92W
Model Number: 9WV0924B1001
Frame Size: 92mm x 92mm x 38mm
Rated Voltage: 24V DC
Operating Voltage Range: 14V to 27.6V DC
Rated Current: 0.39A
Rated Input: 9.36W
Rated Speed: 6000 RPM
Maximum Airflow: 2.9 m³/min (102.4 CFM)
Maximum Static Pressure: 190 Pa (0.76 inchH2O)
Noise Level: 54 dB(A)
Ingress Protection Rating: IP68 (Waterproof and Dustproof)
Bearing Type: Dual Ball Bearing
Sensor Type: Pulse Sensor (Three-wire speed measurement)
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +70°C
Expected Life: 180,000 Hours at 40°C
Frame Material: Aluminum
Impeller Material: Plastic (UL 94V-0)
Weight: 250g
Dielectric Strength: 50/60 Hz, 500 VAC, for 1 minute
Insulation Resistance: 10 MΩ or more with a 500 VDC megger
Lead Wire: Red (+), Black (-), Yellow (Sensor)
Mounting Hole Diameter: Ø 4.3 mm ± 0.3

Sanyo SanAce 92W fan 9WV0924B1001

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
