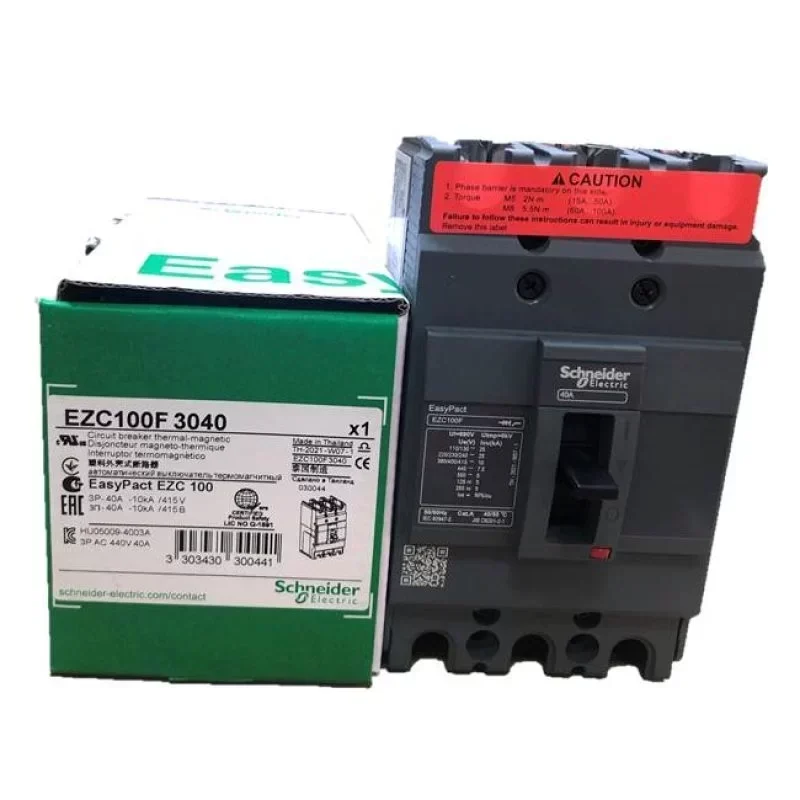

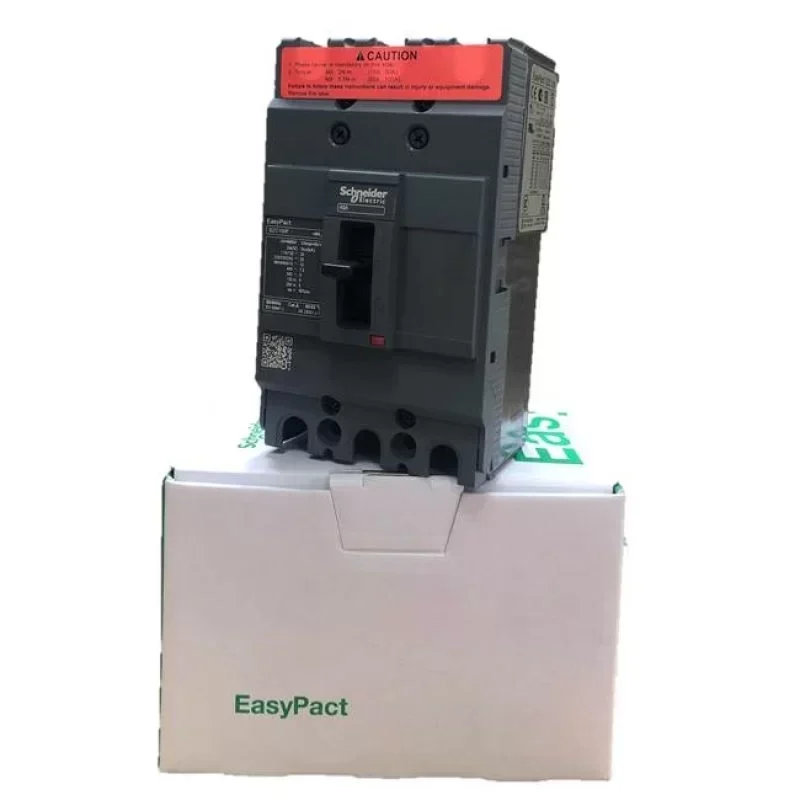

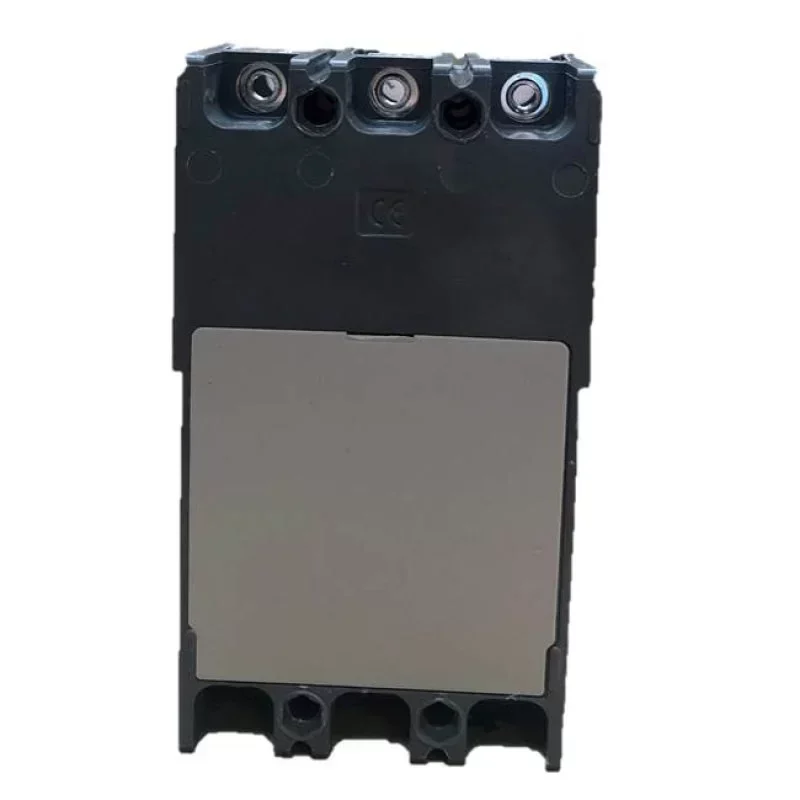

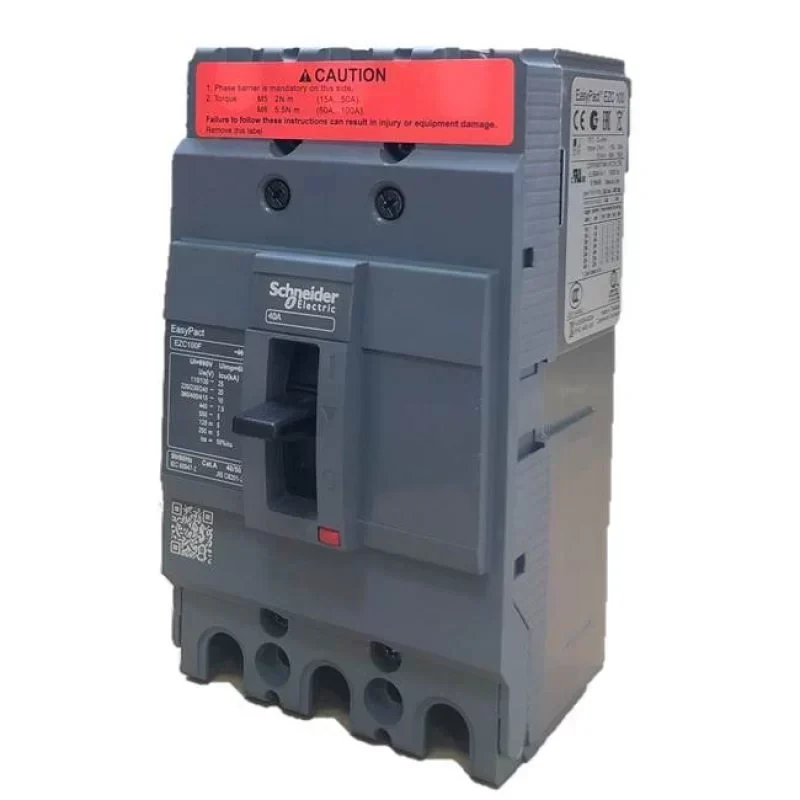

Schneider Moulded Case Circuit Breaker EZC 100F 40A

Description

100% New Schneider Moulded Case Circuit Breaker EZC 100F 40A

Key Attributes
Breaking Capacity: 3.75kA
Rated Voltage: 690V
Model Number: EZC100F3040
Brand Name: Schneider
Rated Frequency (Hz): 50/60 Hz
Rated current: 40 A
Rated impulse withstand voltage: 6 kV
Rated operational voltage (: 550 V
Weight: 0.78 kg
Dimension: 130*75*60 mm (H*W*D)
Electrical characteristics as per: IEC 60947-2, EN 60947-2, JIS C8201-2-1
IP degree of protection: IP20 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25...70 °C
Ambient air temperature for storage: -35...85 °C

Packaging and Delivery
Selling Units: Single item
Single package size: 40X30X30 cm
Single gross weight: 10.000 kg
