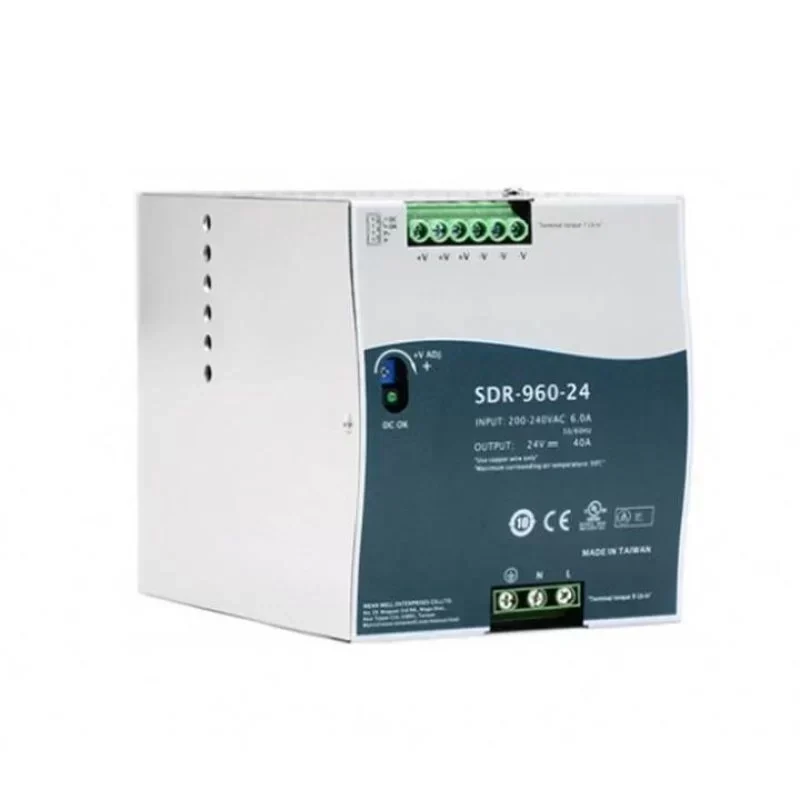

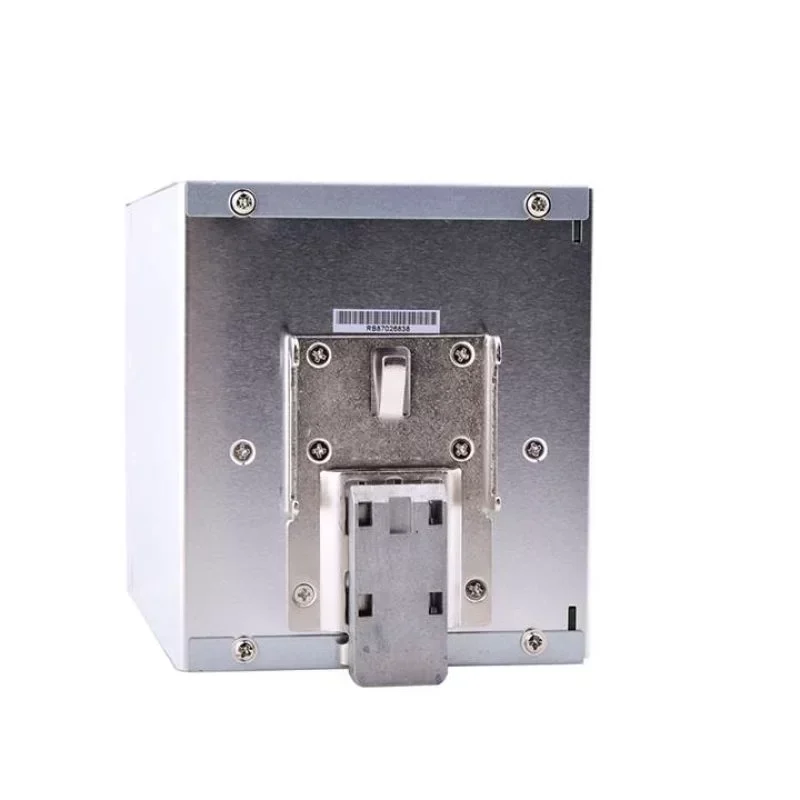

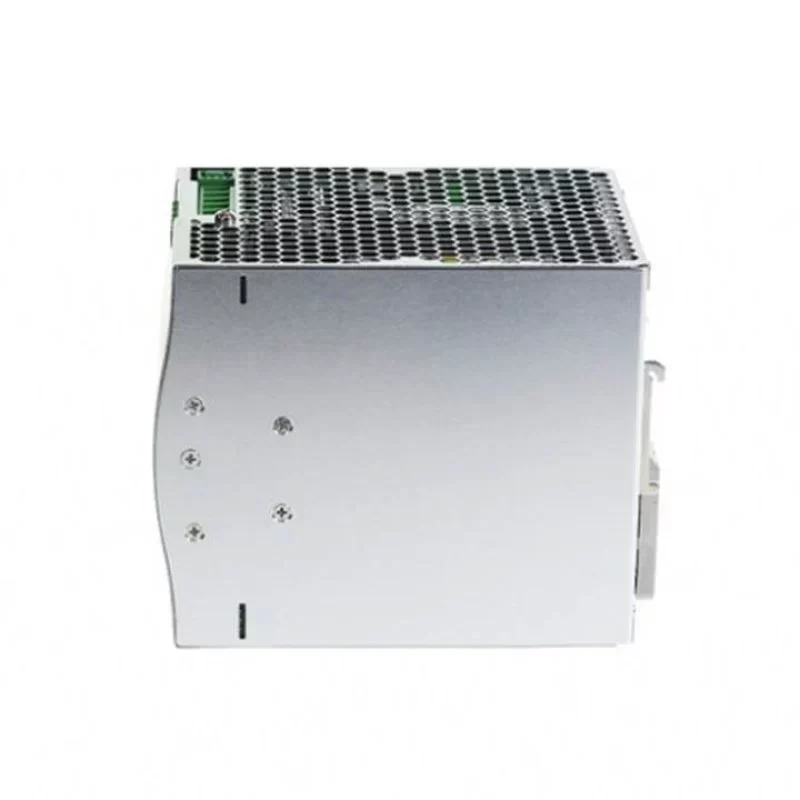

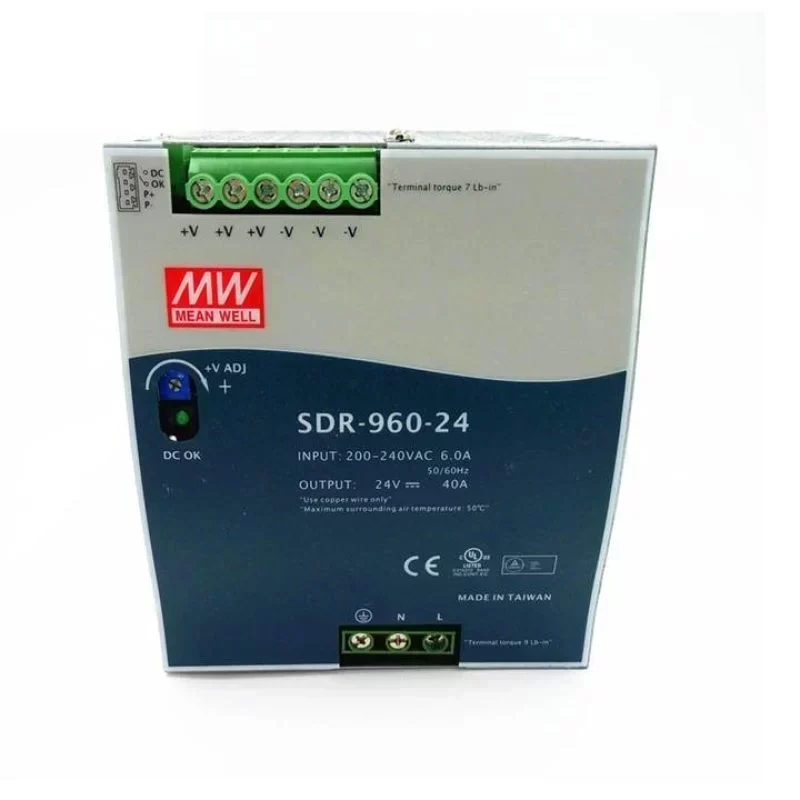

SDR-960-24 24V 40A 960W Single Output Enclosed Mean Well Power Supply

Description

New and Original SDR-960-24 24V 40A 960W Single Output Enclosed Mean Well Power Supply

Key Attributes
Input Voltage: 180 ~ 264 VAC / 254 ~ 370 VDC
Output Current: 40 A
Output Voltage: 24 VDC
Place of Origin: Taiwan, China
Output Power: 960 W
Model Number: SDR-960-24
Brand Name: MeanWell
Output Frequency: 47~63Hz
Output Type: Single
Product Name: SDR-960-24 24V 40A 960W Single Output Enclosed Mean well Power Supply
Efficiency: 94 %
Ripple & Noise: 180 mVp-p
Overload: 105 ~ 130% rated output
Working Temp: -30 ~ +70°C
Humidity: 20 ~ 95% RH
Frequency Range: 47~63 Hz
Certification: TUV / EAC / TP / TC
Dimension: 110 * 125.2 * 150 mm (L*W*H)
Weight: 2.47 Kg

Packaging and Delivery
Packaging Details: 40*30*30cm
Selling Units: Single item
