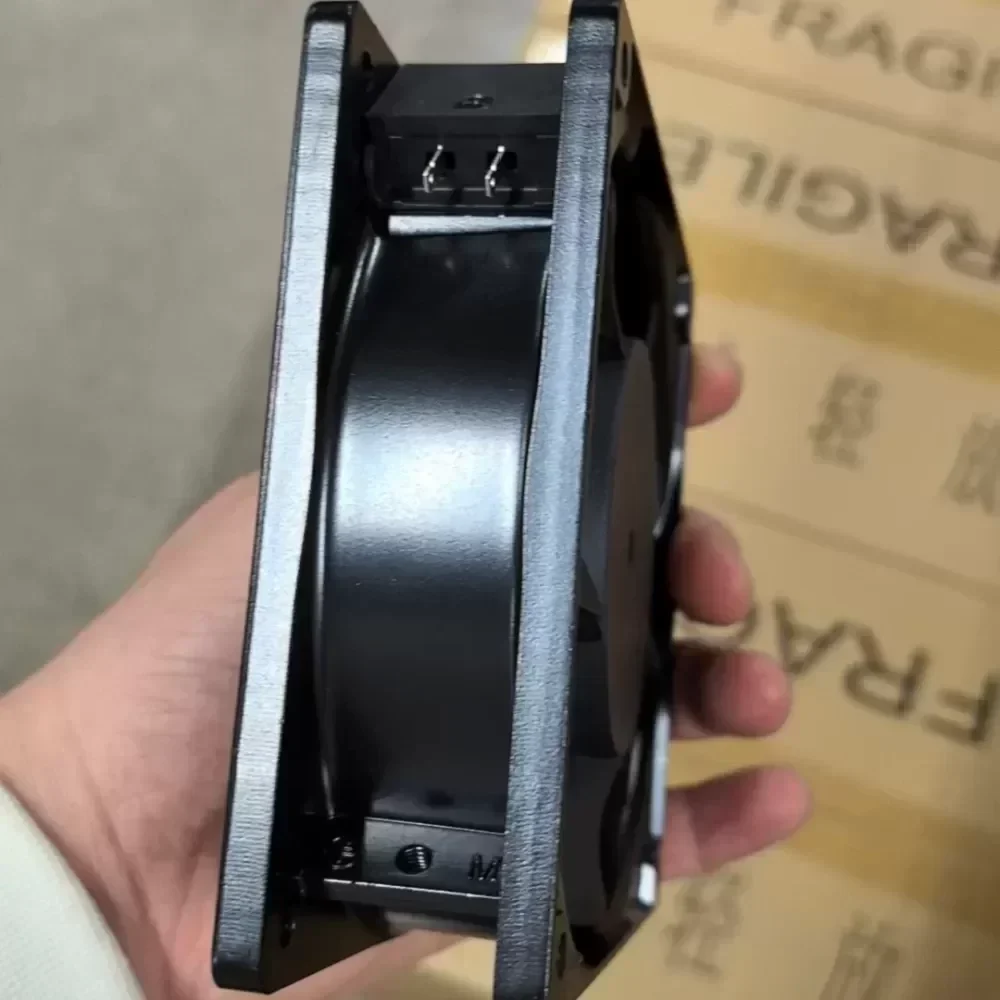

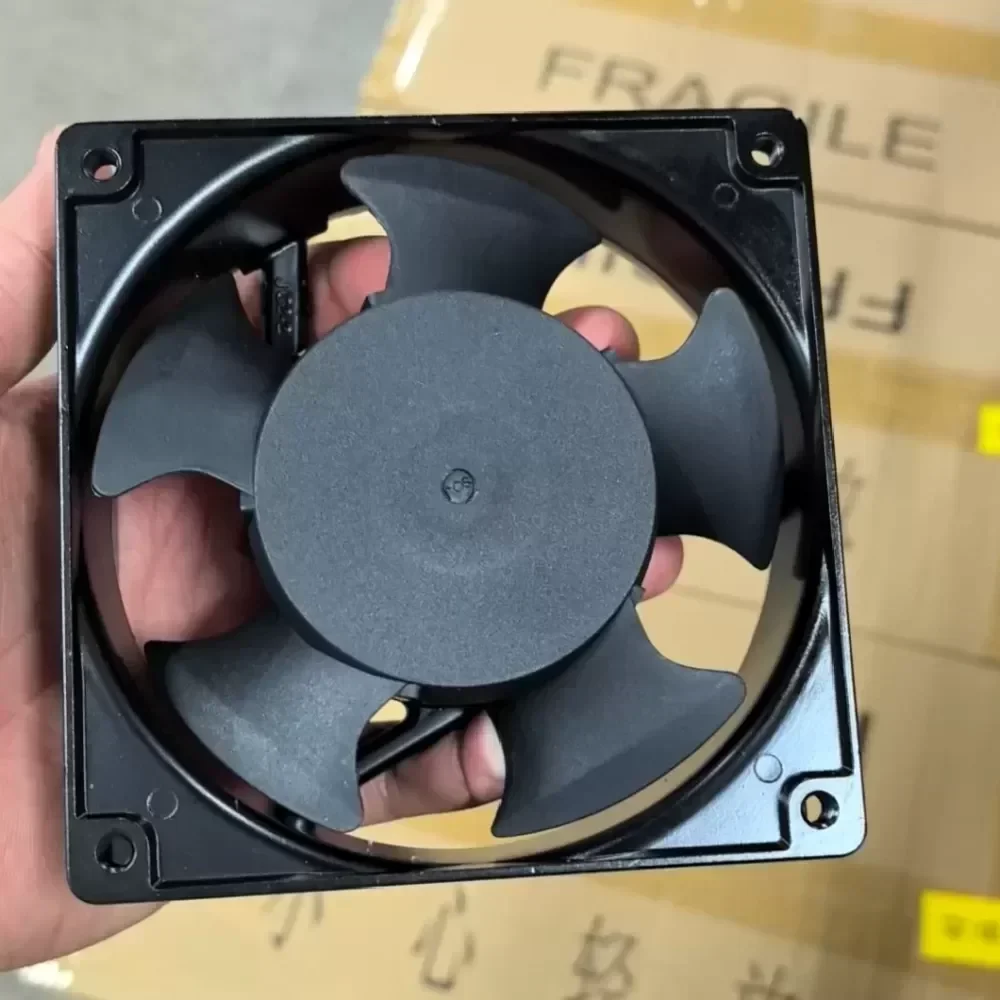

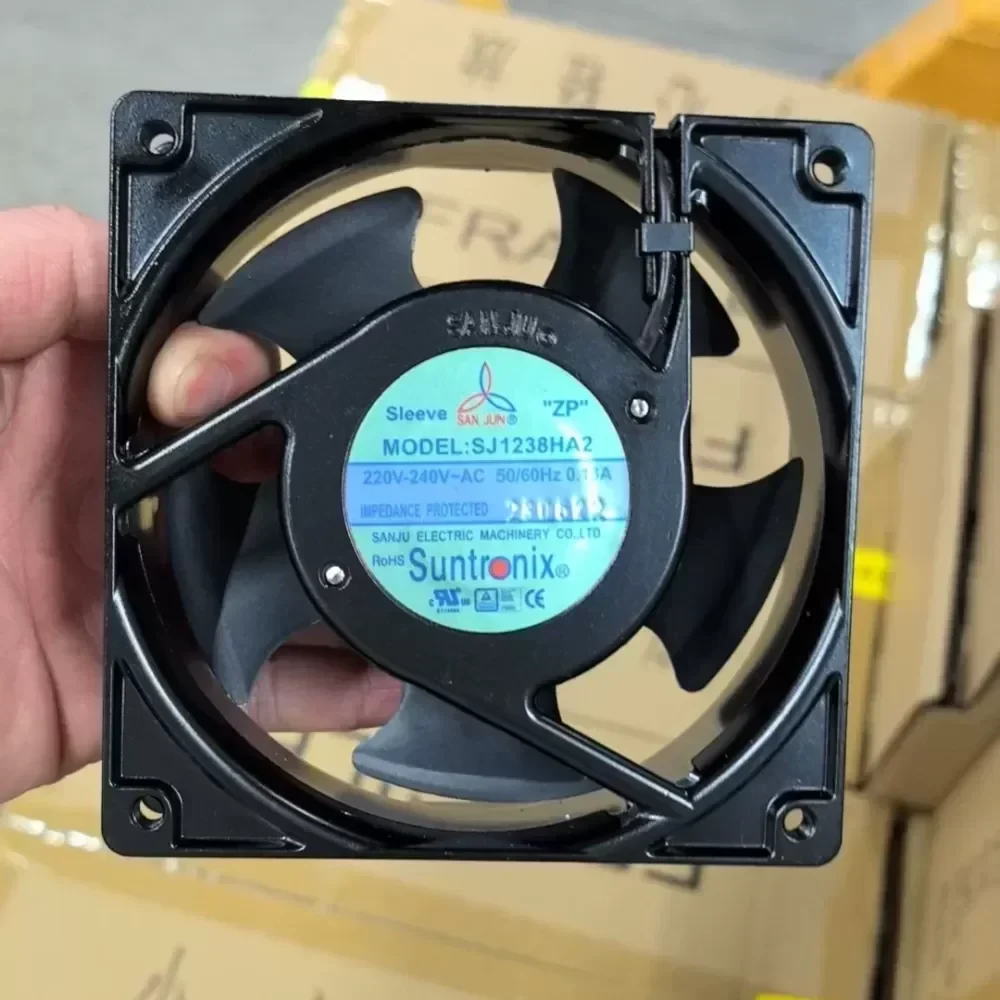

SJ1238HA2 Sanju 220V fan

Name: SJ1238HA2 Sanju 220V fan
Brand: SANJU
SKU: 911009959571
Availability: InStock
Rating: 5 (4 reviews)

$5.71

SKU: 911009959571 Brand: SANJU

Description
Reviews (0)

Description

The San Ju SJ1238HA2 is a high-performance AC axial cooling fan engineered for rigorous thermal management in industrial enclosures. Manufactured by Taiwan San Ju Electric Machinery, this unit utilizes a robust aluminum alloy frame and dual ball bearing architecture to ensure operational stability under continuous load. It is specifically calibrated for 220V AC systems, delivering consistent airflow to mitigate thermal risks in sensitive electronic equipment. This unit represents Original Engineering standards for reliability in harsh environments.

Manufacturer: San Ju Electric Machinery Co., Ltd.
Model Number: SJ1238HA2
Component Type: AC Axial Cooling Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 220V / 240V AC
Frequency: 50 / 60 Hz
Bearing Structure: Dual Ball Bearing
Rotational Speed: 2750 / 3250 RPM
Airflow Capacity: 180 m³/h (approx. 105 CFM)
Noise Level: 47 / 49 dBA
Service Life: 60,000 Hours (at 25°C)
Frame Material: Die-cast Aluminum Alloy with Black Anti-corrosion Coating
Impeller Material: Reinforced PBT Plastic (UL94V-0)
Operating Temperature Range: -10°C to +70°C
Insulation Resistance: Min. 500 Megohms at 500V DC
Dielectric Strength: 1500V AC for 1 Minute
Mounting: Flange Type
Weight: Approx. 530g

Designed specifically for high-density chassis cabinets and server racks, the SJ1238HA2 addresses critical heat accumulation issues in confined electronic environments. The high static pressure generated by the 38mm depth allows for effective airflow penetration through dense component arrays and filters. The dual ball bearing system significantly extends the Mean Time Between Failures (MTBF), making it ideal for 24/7 operation in automation control panels, welding machines, and power supply units. This component ensures precise Technical Compatibility with existing ventilation systems, minimizing downtime during maintenance. Contact us to confirm current Lead Time and bulk availability.

SJ1238HA2 Sanju 220V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
