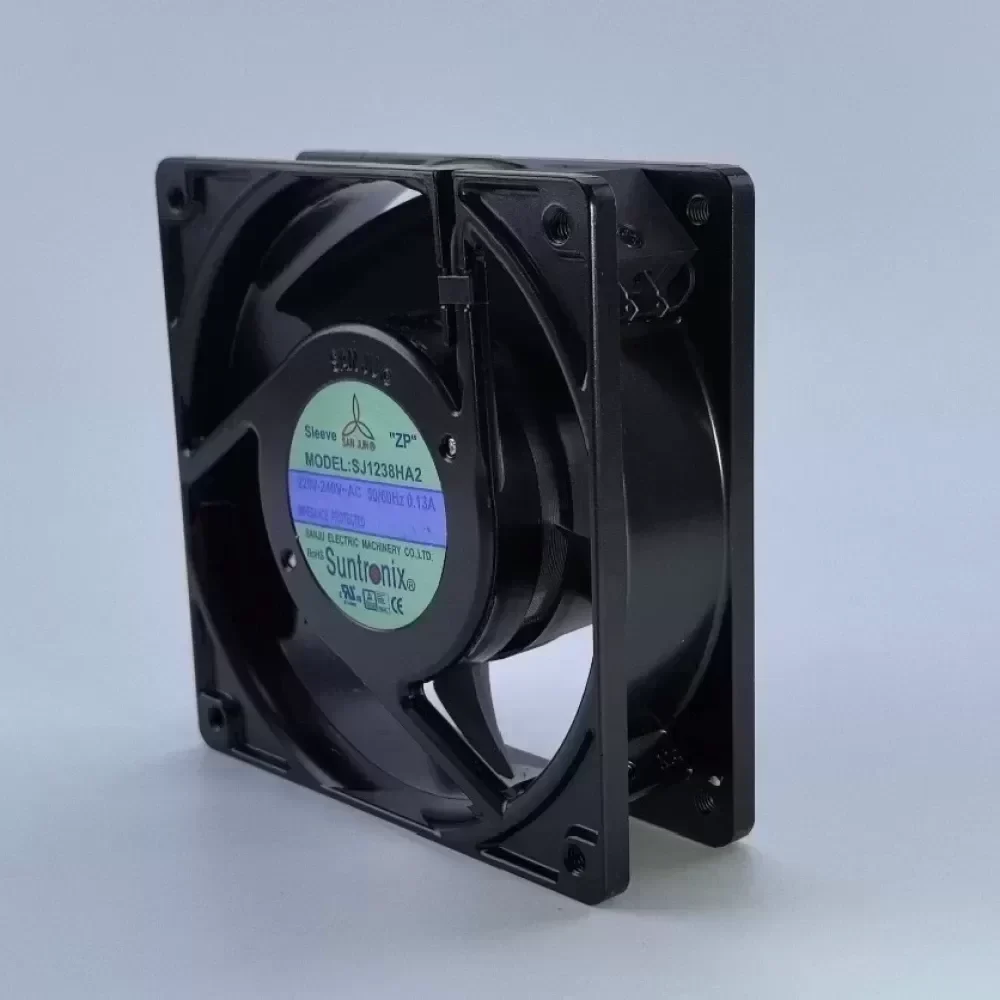

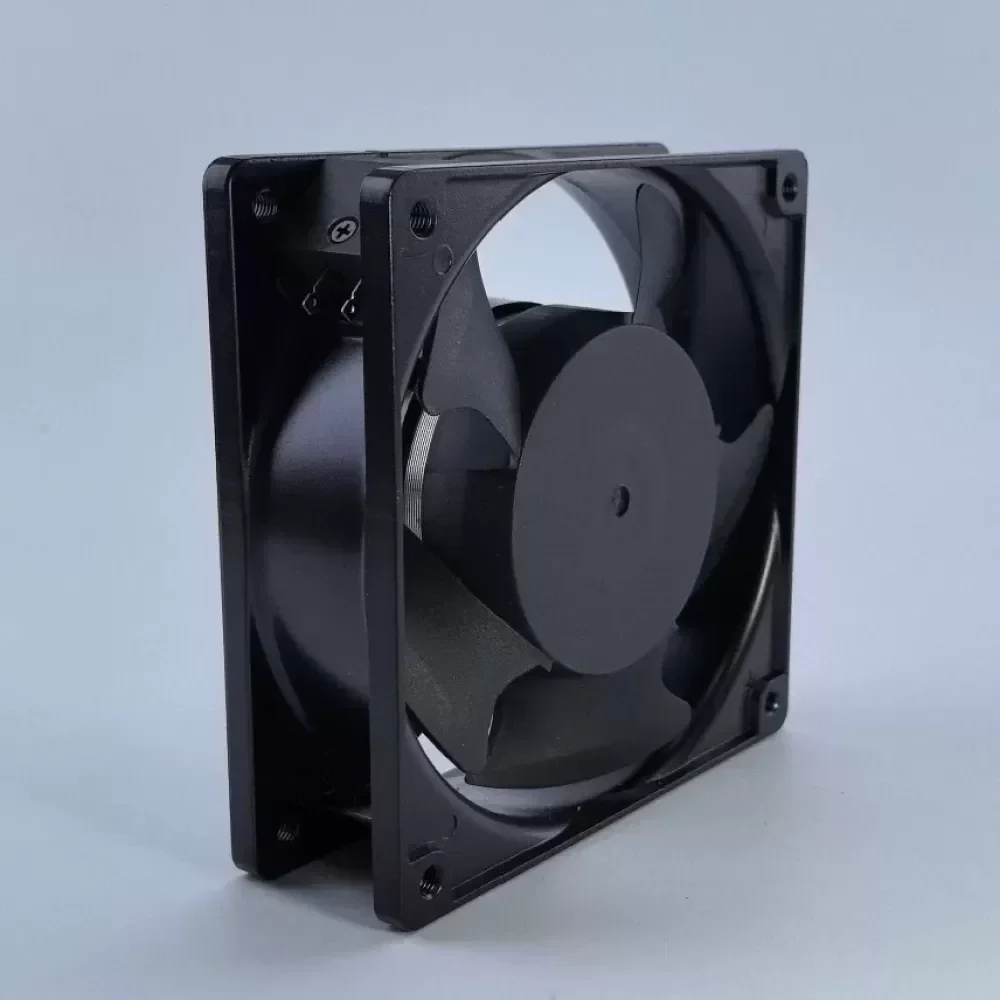

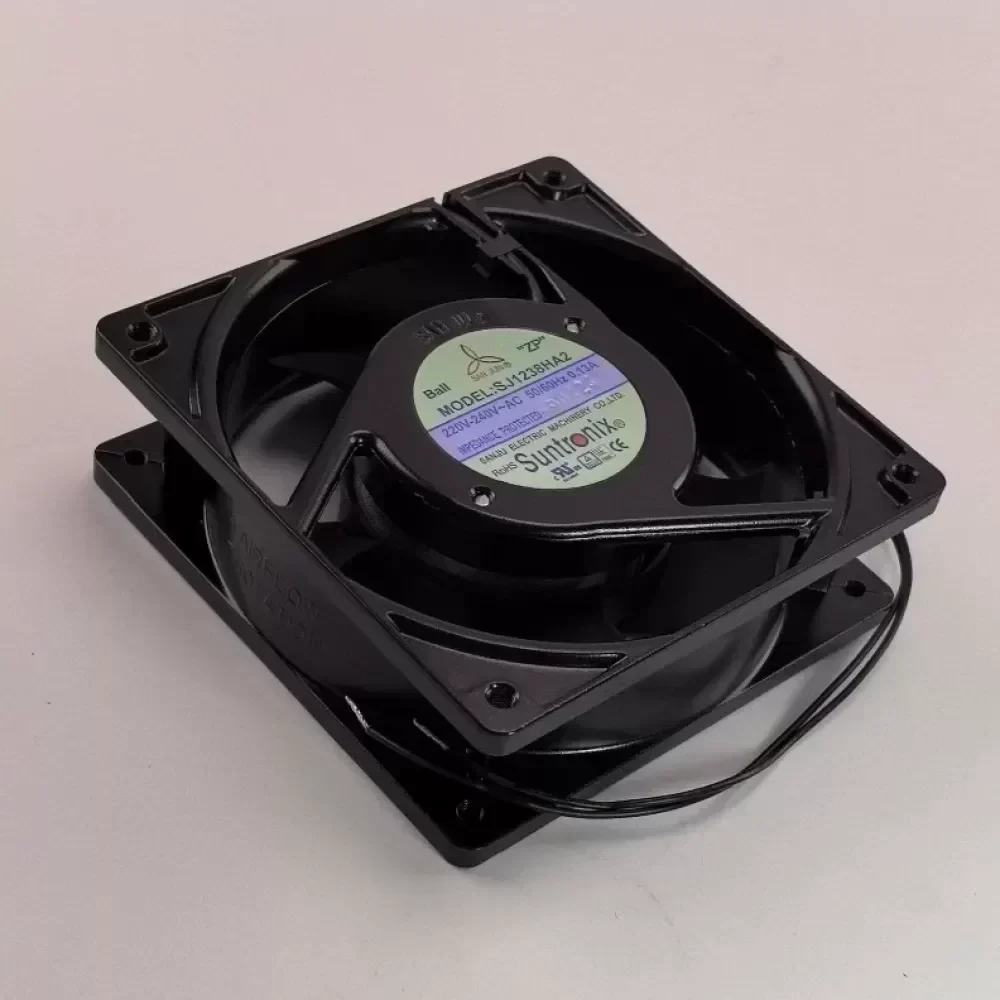

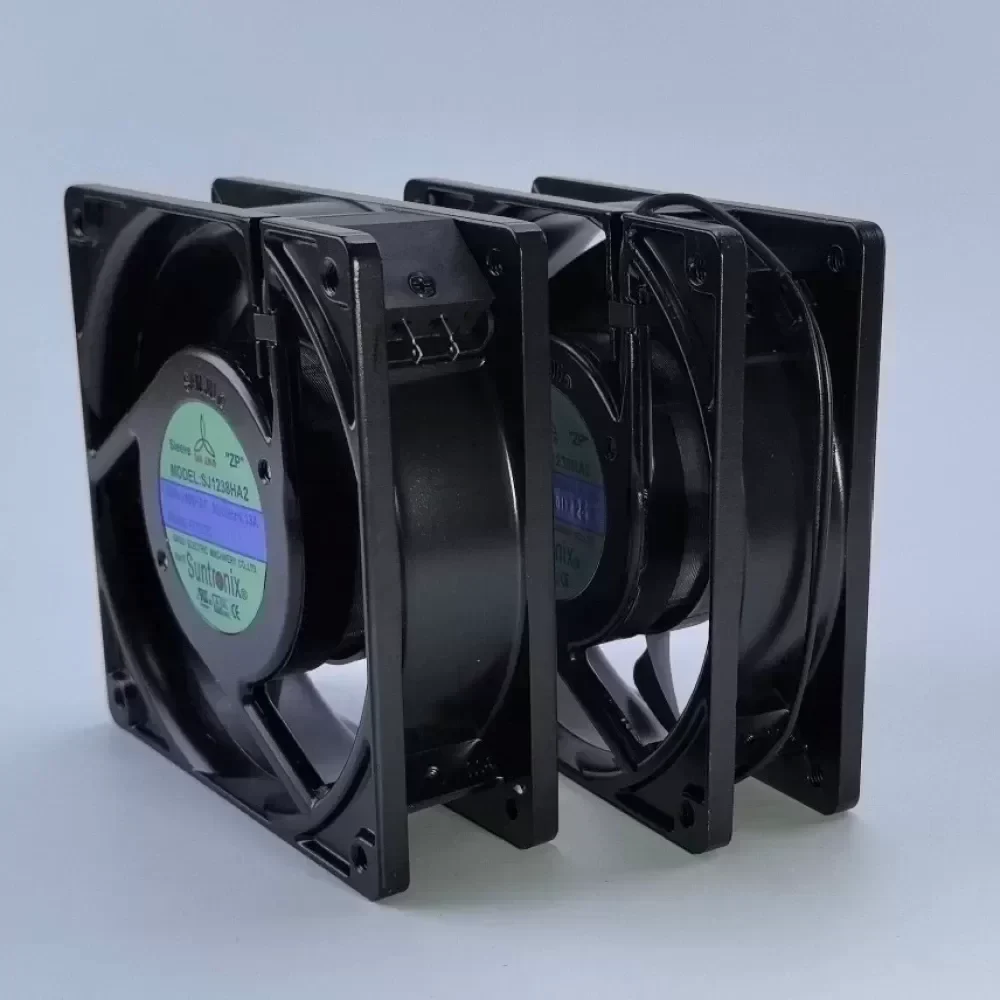

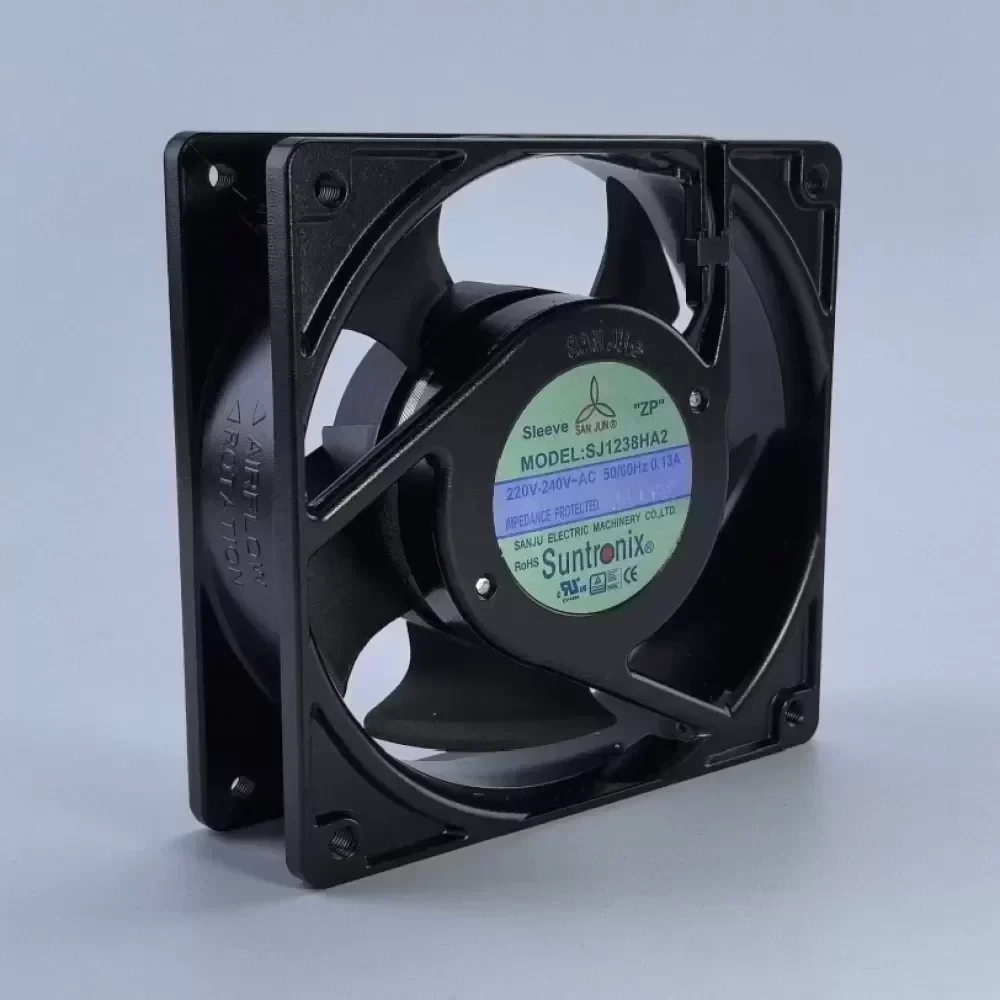

SJ1238HA2 Sanju fan 120x38mm

Name: SJ1238HA2 Sanju fan 120x38mm
Brand: SANJU
SKU: 910644893128
Availability: InStock
Rating: 5 (4 reviews)

$5.71

SKU: 910644893128 Brand: SANJU

Description
Reviews (0)

Description

The Taiwan SANJU SJ1238HA2 is a high-performance AC axial fan engineered for rigorous thermal management in industrial automation and telecommunications infrastructure. This unit exemplifies Original Engineering standards, featuring a robust die-cast aluminum frame and a reinforced PBT impeller designed to maintain structural integrity under continuous thermal stress. The integration of a premium double ball bearing system extends the operational lifecycle to 60,000 hours, significantly outperforming sleeve-bearing alternatives and ensuring long-term reliability in 24/7 operations. With a standardized 120mm footprint and 220V AC input, the SJ1238HA2 offers seamless Technical Compatibility for both OEM assembly and MRO retrofits. The fan delivers a substantial airflow of 180 m³/h, optimized to neutralize heat buildup in high-impedance environments. Contact our procurement team to confirm current Lead Time and bulk availability.

Manufacturer: Taiwan SANJU (San Ju International)
Model Number: SJ1238HA2
Component Type: AC Axial Cooling Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 220V / 240V AC
Frequency: 50 / 60 Hz
Current Rating: 0.13 A
Power Consumption: 22 W (Approximate)
Rotational Speed: 2750 / 3250 RPM
Max Airflow: 180 m³/h (105 CFM)
Static Pressure: 0.34 Inch-H2O
Noise Level: 47 / 49 dBA
Bearing Structure: Dual Ball Bearing
Service Life: 60,000 Hours at 25°C
Frame Material: Die-Cast Aluminum Alloy (Black)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Insulation Resistance: 500M Ohm min. at 500V DC
Dielectric Strength: 1500V AC for 1 second
Motor Protection: Impedance Protected
Weight: 530 g

Application Scenario: This high-static pressure cooling solution is specifically engineered for CNC machine control cabinets and rack-mounted server chassis where internal component density creates significant airflow resistance. The SJ1238HA2 effectively overcomes back pressure to prevent thermal throttling of sensitive PLCs, variable frequency drives, and power supply units.

SJ1238HA2 Sanju fan 120x38mm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
