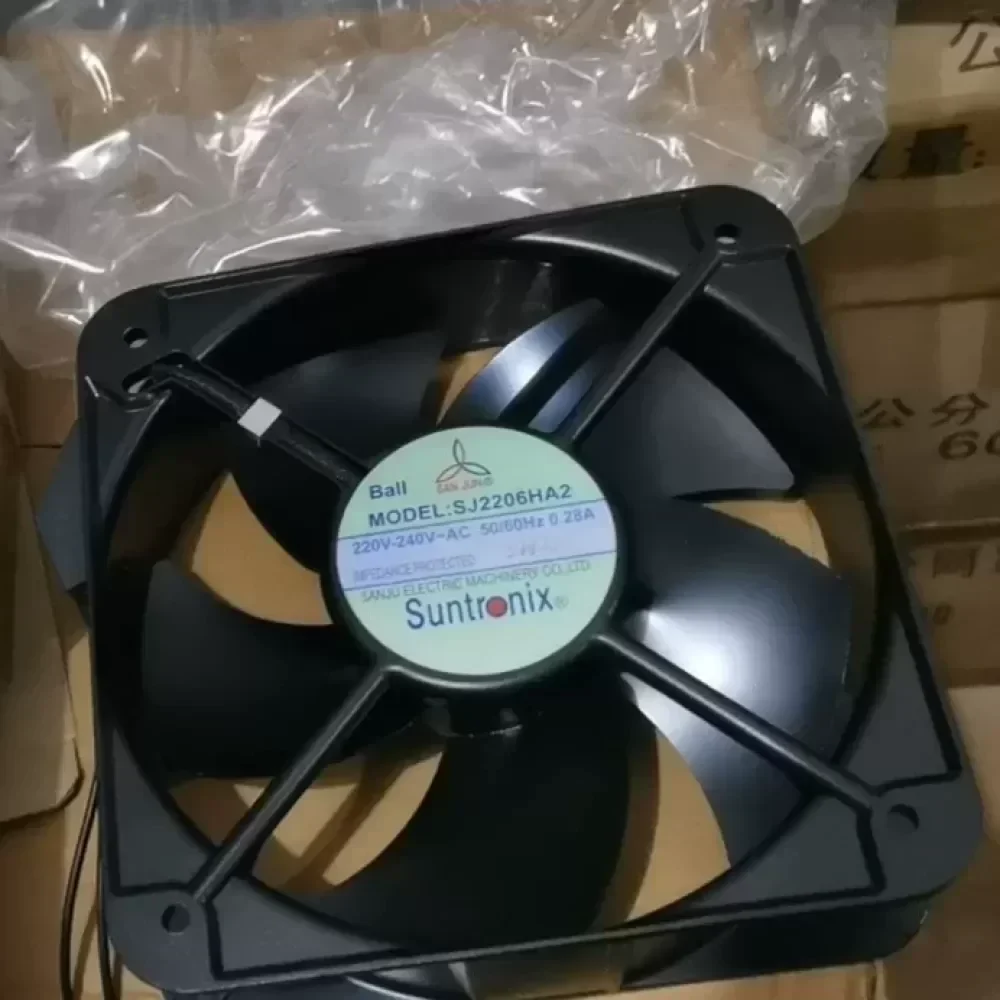

SJ2206HA2 Sanju 20060/220V axial fan

Name: SJ2206HA2 Sanju 20060/220V axial fan
Brand: SANJU
SKU: 684238225147
Availability: InStock
Rating: 5 (4 reviews)

$25.00

SKU: 684238225147 Brand: SANJU

Description
Reviews (0)

Description

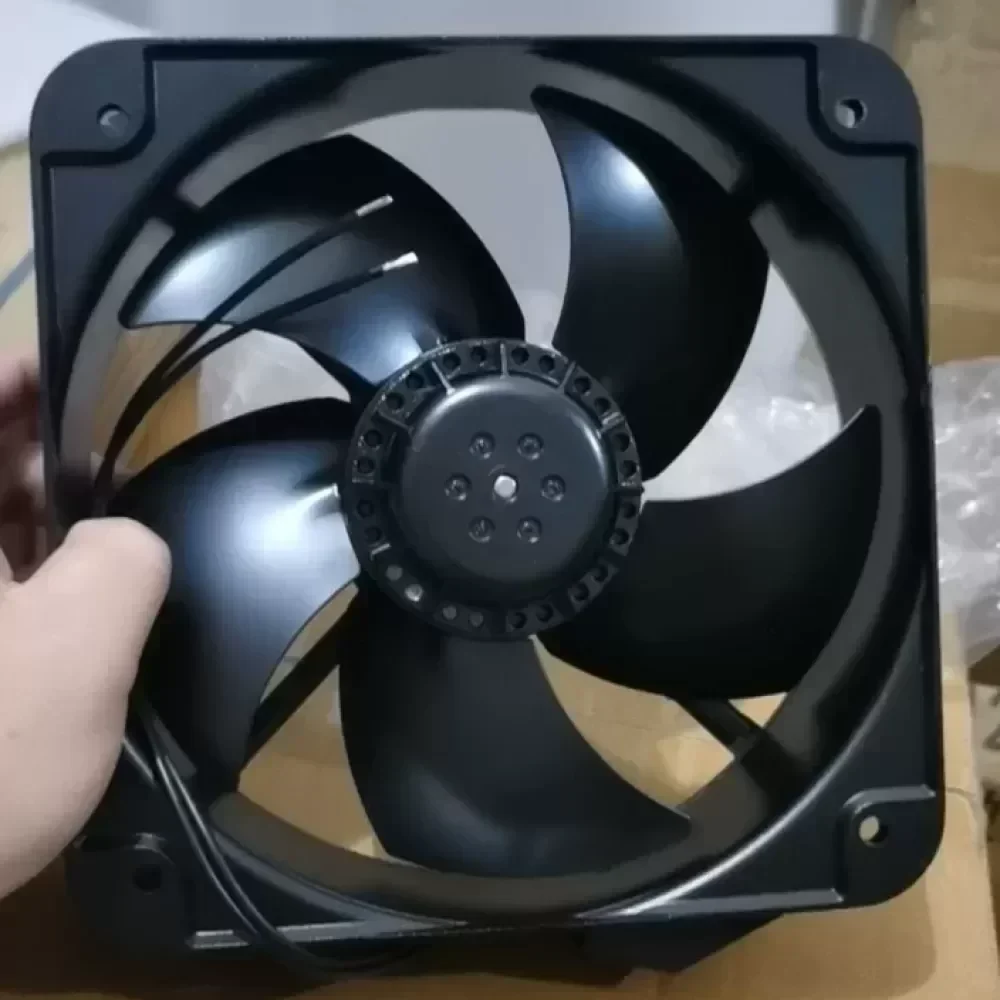

The Taiwan Sanju SJ2206HA2 is a robust AC axial fan engineered for high-capacity thermal regulation in industrial machinery and power distribution systems. Designed with a heavy-duty die-cast aluminum frame and a metal impeller, this model withstands harsh operating environments while delivering superior airflow performance. The fan utilizes a capacitor-run induction motor optimized for 220V/240V AC operation, ensuring consistent rotational stability and longevity. Its square form factor allows for seamless integration into standard ventilation panels and server cabinets, providing a reliable solution for critical cooling requirements.

Technical Specifications:
Manufacturer: Taiwan Sanju Electric Machinery Co., Ltd.
Model: SJ2206HA2
Component Type: AC Axial Cooling Fan
Frame Size: 220mm x 220mm x 60mm
Rated Voltage: 220/240 VAC
Frequency: 50/60 Hz
Current Rating: 0.38 A
Power Consumption: 65 W
Rotational Speed: 2600 RPM
Maximum Airflow: 360 CFM (10.19 m³/min)
Static Pressure: 19 mmH2O
Noise Level: 60 dBA
Bearing System: Dual Ball Bearing
Frame Material: Die-Cast Aluminum with Anti-Corrosion Coating
Impeller Material: Steel (Metal)
Operating Temperature Range: -20°C to +70°C
Insulation Resistance: 100M Ohms at 500VDC
Dielectric Strength: 1500 VAC for 1 Minute
Weight: 1.4 kg
Life Expectancy: 50,000 Hours

Industrial Application:
This specific model is critical for heat dissipation in large-scale variable frequency drive (VFD) cabinets and industrial welding equipment where plastic impellers may deform under thermal stress. The metal blade design ensures reliable operation in high-vibration environments, effectively removing waste heat to maintain system efficiency and prevent thermal shutdown of sensitive electronics.

Procurement Data:
Verify Technical Compatibility with your specific enclosure cutout dimensions before ordering. As a supplier of Original Engineering components, we prioritize authentic parts to maintain equipment warranty standards. Please request a quote to confirm current Lead Time and stock availability.

SJ2206HA2 Sanju 20060/220V axial fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
