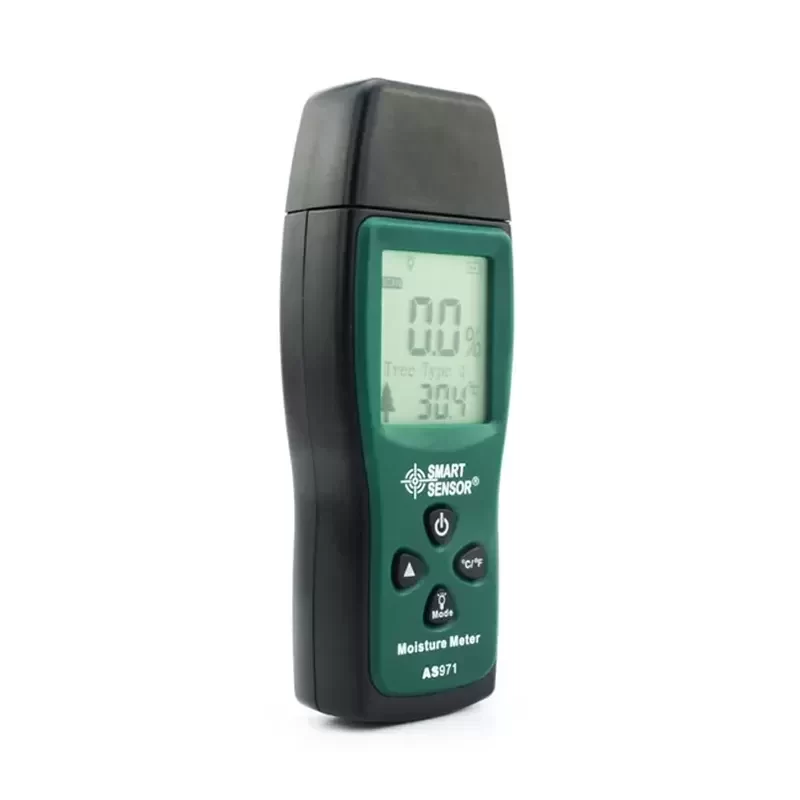

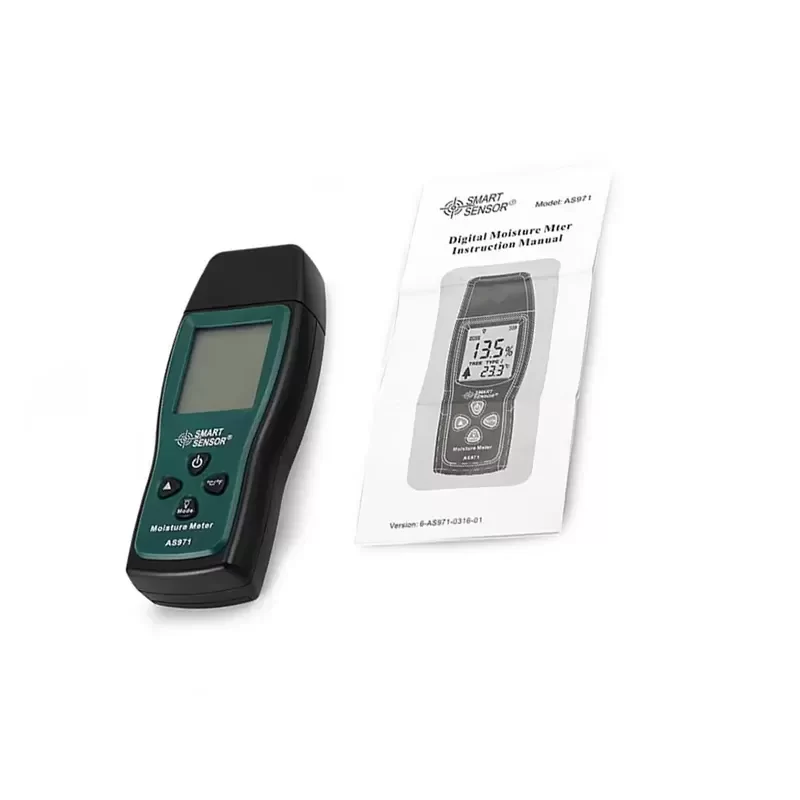

Smart Sensor AS971 Mini Lumber Humidity Digital Wood Moisture

Description

The Smart Sensor AS971 is a professional-grade, conductivity-based digital hygrometer engineered for the precise quantification of moisture content in timber, bamboo, and cellulosic materials. Utilizing a dual-pin electrical resistance interface, this instrument delivers rapid diagnostic data critical for assessing material viability before processing. The device features four distinct calibration modes, allowing operators to adjust the measurement algorithm based on specific wood density groups, ranging from softwoods to dense hardwoods. This ensures high data fidelity and operational safety by identifying moisture levels that could lead to structural warping, delamination, or microbial growth. The AS971 is constructed with a robust ABS housing suitable for field environments and includes energy-saving logic with automatic shutdown capabilities.

Technical Specifications:
Brand: Smart Sensor
Model Number: AS971
Measurement Principle: Electrical Resistance
Probe Configuration: Integrated Dual Pin
Moisture Measurement Range: 2% to 70%
Resolution: 0.5%
Accuracy: ±(1%RH + 0.5)
Density Calibration Modes: 4 Selectable Modes (A/B/C/D)
Display Type: Large Digital LCD
Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
Data Functions: Data Hold, Low Battery Indication
Power Management: Auto Power Off (10 Minutes)

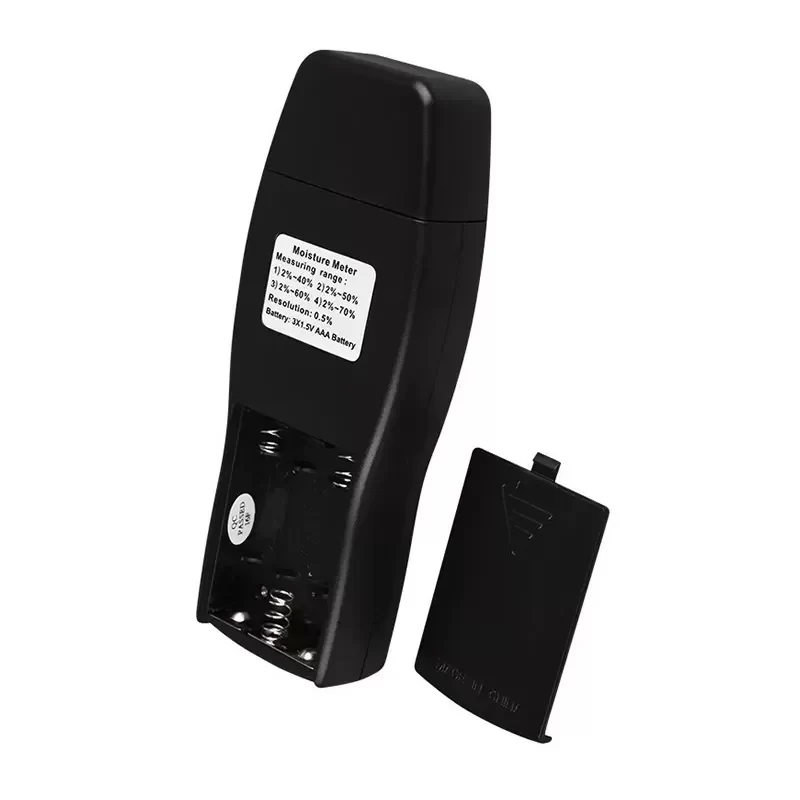

Power Supply: 3 x 1.5V AAA Batteries
Housing Material: Reinforced ABS Plastic
Device Dimensions: 135mm x 47mm x 25mm
Package Dimensions: 200mm x 120mm x 60mm
Gross Weight: 0.450 kg
Certifications: CE, RoHS

Industrial Application:
This device is essential for quality assurance in furniture manufacturing and hardwood flooring installation. Specifically, it validates that lumber has reached the required Equilibrium Moisture Content (EMC) prior to milling or adhesion. By detecting moisture pockets above the critical threshold in kiln-dried stock, the AS971 prevents costly post-installation failures such as cupping, crowning, and joint separation. We guarantee Original Engineering standards and verify Technical Compatibility with standard lumber grading protocols. Contact us for current Lead Time and bulk procurement details.

Key Attributes
Application: Wood Moisture Meter
Type: Wood Moisture Meter
Place of origin: Guangdong, China
Material: Plastic
Model number: AS971
Brand name: Smart Sensor
Customized support: OEM
Display Type: Digital
Product name: Smart Sensor AS971 Mini Lumber Humidity Digital Wood Moisture Meter
Moisture Range: 2%~70%
Application: Wood Moisture Measurement
Display: LCD
Warranty: 1 Year
Temperature Range: 0~40℃ / 32~99℉
Resolution: 0.5%
Key word: Wood moisture meter

Packaging and Delivery
Selling Units: Single item
Single package size: 20X12X6 cm
Single gross weight: 0.450 kg
