SNDWAY Cheaper SW-32A 32X Optical Automatic Engineering Survey

Description

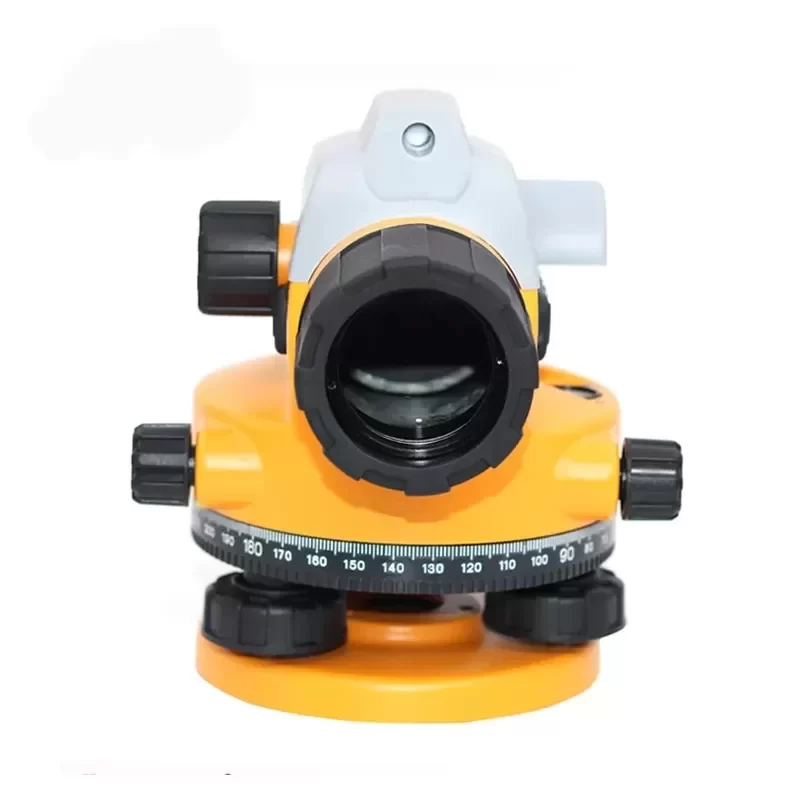

The SNDWAY SW-32A 32X Optical Automatic Level Kit is a comprehensive precision surveying solution designed for high-accuracy geodetic measurement and construction engineering. This complete package integrates the SW-32A optical instrument with a heavy-duty aluminum tripod and a telescopic leveling rod, ensuring immediate operational readiness upon delivery. The optical system features a high-definition 32X magnification lens with a large aperture, delivering sharp, erect images even in low-light conditions or over long distances. At the core of the device is a rapid-response magnetic damping compensator, which automatically stabilizes the line of sight within a working range of ±15 minutes, effectively neutralizing errors caused by ground vibrations or wind. The housing is engineered from industrial-grade ABS polymer, providing robust protection against impact and environmental elements. This unit adheres to Original Engineering specifications for durability and precision.

Technical Specifications:
Model: SW-32A
Magnification: 32X
Objective Aperture: 38mm
Standard Deviation (1km Double Run): 1.5mm
Compensator Type: Magnetic Damping System with X-Wire Suspension
Compensator Working Range: ±15′
Setting Accuracy: ±0.5″
Minimum Focusing Distance: 0.5m
Field of View: 1°20′
Image Orientation: Erect
Horizontal Circle: 360° with 1° Graduation
Tripod Mount Thread: 5/8 inch x 11 (M16)
Protection Rating: IP54 (Dust and Splash Resistant)
Housing Material: High-Impact ABS Plastic
Kit Gross Weight: 16.00 kg
Packaging Dimensions: 127cm x 23cm x 17cm

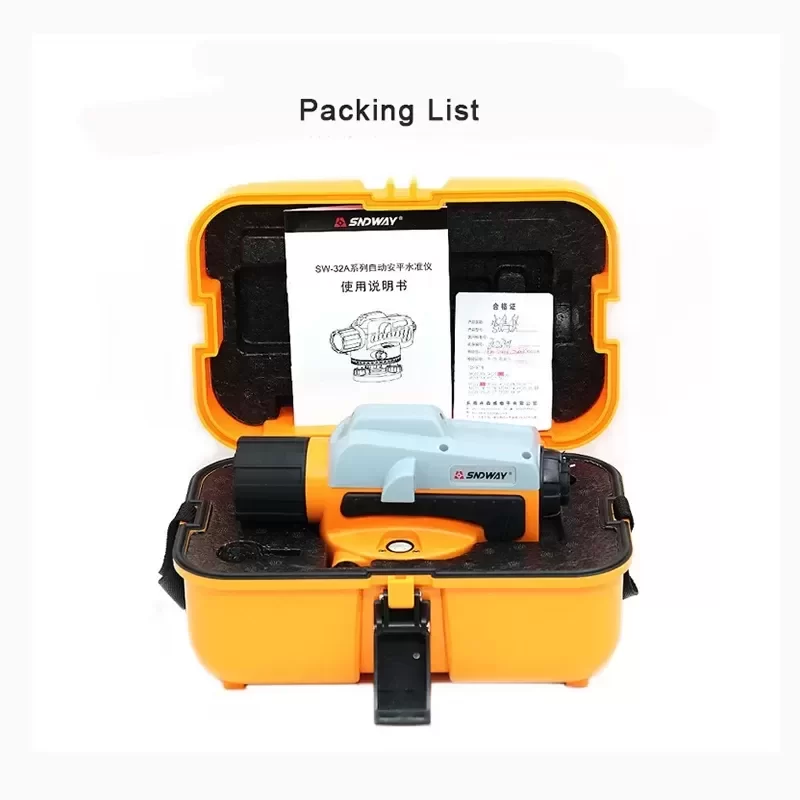

Included Components: Optical Level, Aluminum Tripod, Leveling Rod, Hard Carrying Case

Industrial Application:
This instrument is specifically calibrated for critical elevation transfer and grade checking in active construction zones. The high 32X magnification solves the problem of reading graduated staffs at extended distances across large foundation sites or road alignments. The magnetic compensator ensures Technical Compatibility with environments subject to heavy machinery vibration, maintaining a stable line of sight where standard pendulum systems might oscillate. This stability is essential for maintaining grade accuracy during concrete pours and landscaping. Please verify current Lead Time for bulk project requirements.

Key Attributes
Accuracy: 0.01
Smart App: None
Place of origin: Guangdong, China
Material: Plastic cover
Brand name: SNDWAY
Customized support: OEM
Warranty: 1 year
Product Name: SNDWAY Cheaper SW-32A Optical Automatic Engineering Survey Auto Level
Type: Self-leveling auto level
Usage: Outdoor Engineering
Keyword: Auto level
Magnification: 32X
Color: Yellow + White
Installation method: With tripod
Material: ABS Plastic cover

Packaging and Delivery
Selling Units: Single item
Single package size: 127X23X17 cm
Single gross weight: 16.000 kg
