Description
The SNDWAY SW-DG100 is a precision-engineered bilateral laser distance meter designed for high-efficiency spatial quantification in industrial construction, architectural surveying, and facility management. Distinguished by its dual-direction measurement capability, this device utilizes advanced green laser diode technology to provide superior visibility and optical clarity, particularly in bright ambient environments where standard red lasers fail. The unit features Original Engineering that allows for simultaneous measurement in opposite directions, enabling the operator to calculate total span from a central reference point without traversing the workspace. Encased in a robust metallic alloy housing, the SW-DG100 is built to withstand rigorous job site conditions while maintaining high-precision accuracy. The integration of an electronic angle sensor and real-time Pythagorean logic ensures Technical Compatibility with complex geometric calculation requirements. This tool significantly reduces operational Lead Time by streamlining the data acquisition process for large-scale layouts.
Manufacturer: SNDWAY
Model Number: SW-DG100
Device Type: Bilateral Handheld Laser Rangefinder
Laser Spectrum: Green Laser (500-535nm)
Laser Classification: Class II, <1mW
Max Measurement Range: 100m (Combined Bidirectional)
Measurement Accuracy: ±2mm
Minimum Display Unit: 0.001m
Display Type: 2.0-inch Auto-Rotating Color LCD
Power Supply: Built-in 3.7V 850mAh Li-ion Battery
Charging Interface: USB Type-C
Battery Cycle Life: 8000 measurements per full charge
Housing Material: Metal Alloy / High-Impact ABS
Dimensions: 115.3mm x 50mm x 24.5mm
Weight: 330g

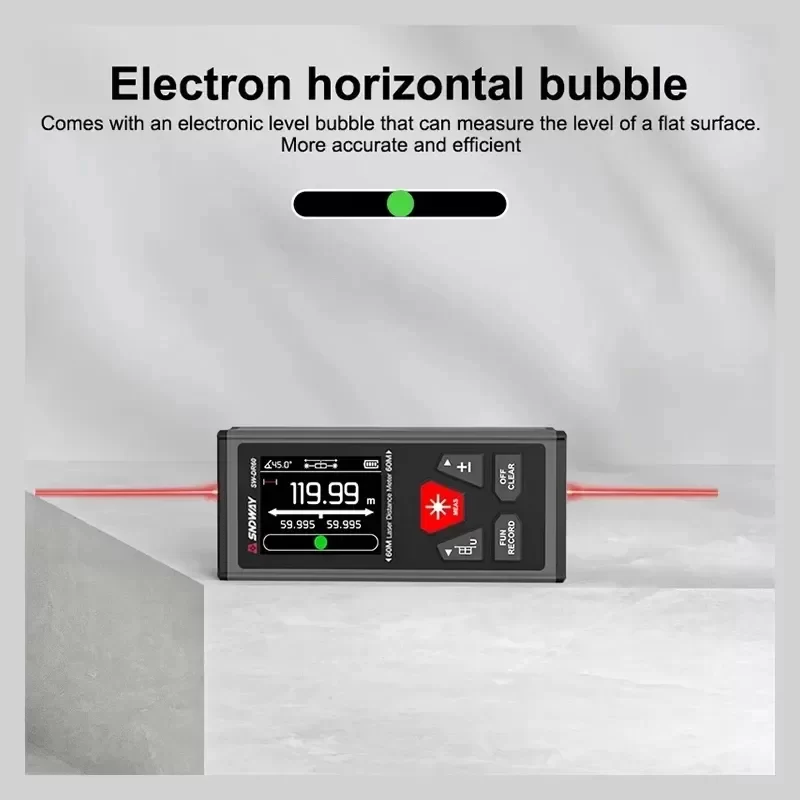

Angle Measurement: Electronic Level Sensor (±90°)
Calculation Modes: Distance, Area, Volume, Pythagorean, Wall Area
Data Storage: 100 Groups
Operating Temperature: 0°C to +40°C
Storage Temperature: -20°C to +60°C
Auto Cut-off Laser: 20s
Auto Power-off: 150s
Certifications: CE, FCC, RoHS
Industrial Application:
This device is critical for interior fit-outs, HVAC duct installation, and elevator shaft alignment where physical access to end-points is obstructed, hazardous, or impractical. The SW-DG100 solves the specific problem of measuring wall-to-wall or floor-to-ceiling spans in furnished or cluttered environments. By positioning the device at any point along the measurement line, the bilateral laser system captures the distance to both boundaries simultaneously, instantly computing the total length. This capability eliminates the need for reflector plates or assistants, ensuring safety and precision in single-operator surveying scenarios.
Key Attributes
Type: Handheld Laser Rangefinders
Place of origin: Guangdong, China
Material: METAL
Size: 115.3x50x24.5mm
Weight: 330g
Model number: SW-DG60/DG100
Brand name: SNDWAY
Customized support: OEM
Warranty: 1 Year
Product name: SNDWAY Laser Distance Meter
Function: Area, Length, Volume, Pythagorean
Certificate: CE FCC
Type: Digital laser distance meter
Power Supply: 3.7V 850mAh Li-ion
Laser level: Class II
Screen size: 2 inches
Packaging and Delivery
Selling Units: Single item
Single package size: 24X11X12 cm
Single gross weight: 0.500 kg
