Description

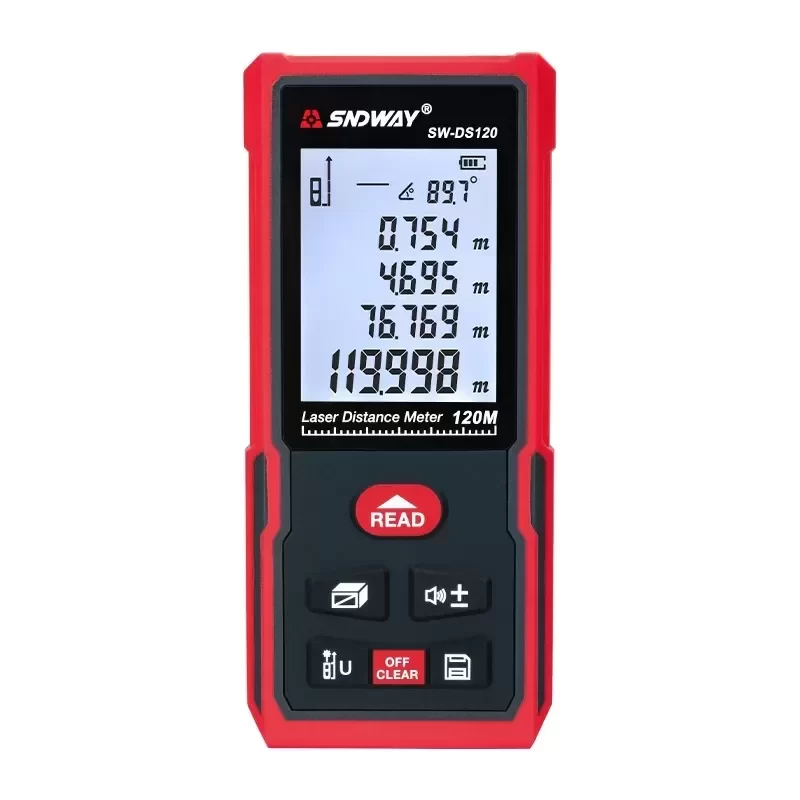

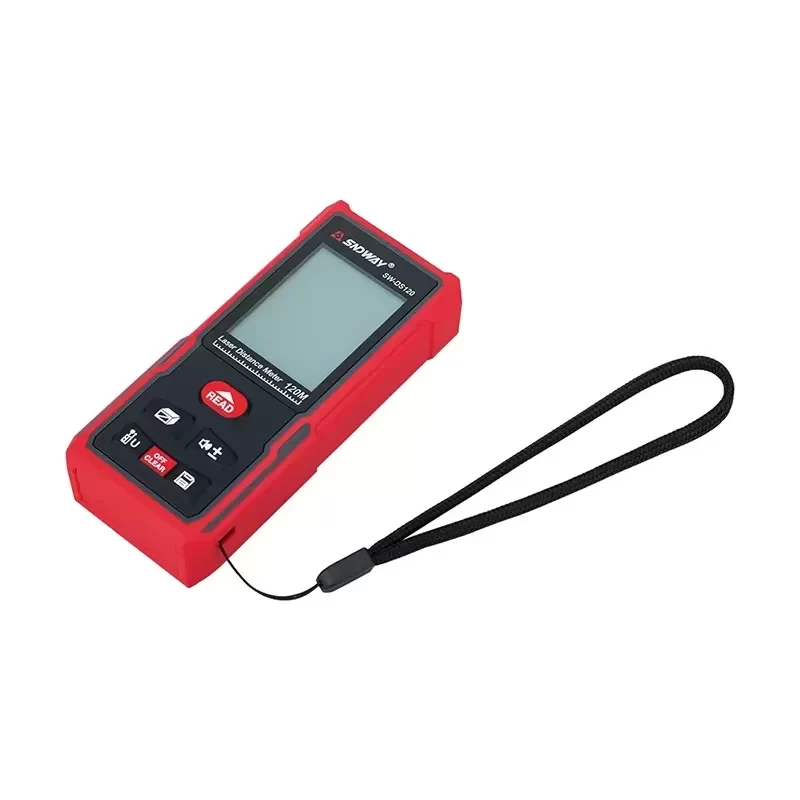

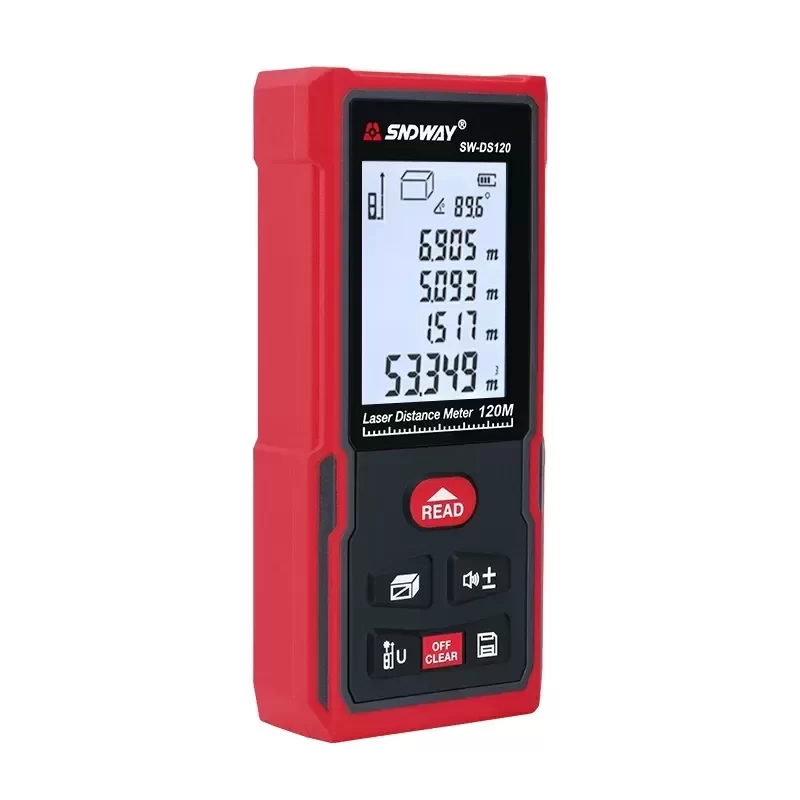

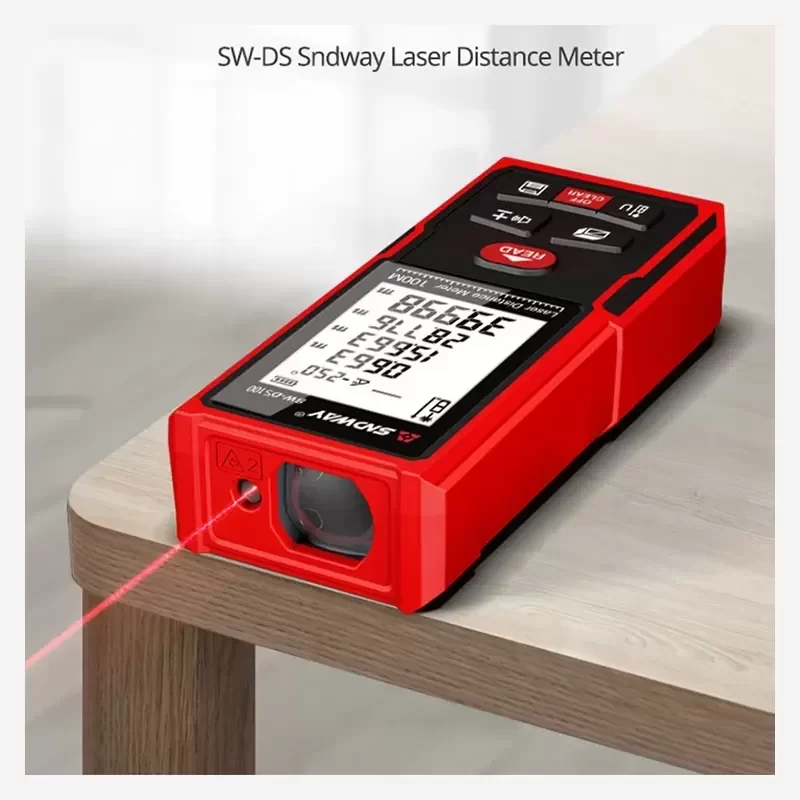

The SNDWAY SW-DS120 is a professional-grade laser distance meter engineered for high-precision industrial surveying and construction layout. This device integrates an advanced electronic angle sensor, enabling real-time inclination data and enhanced indirect measurement capabilities via Pythagorean theorem logic. Designed for efficiency, the SW-DS120 supports a measurement range up to 120 meters with a high-fidelity optical lens that ensures signal stability even in complex lighting conditions. The unit features a robust ABS housing rated to IP54 standards, providing necessary protection against dust ingress and water splashing in active job sites. The internal processor handles complex arithmetic operations, including addition, subtraction, area, and volume calculations, streamlining workflow for field technicians.
Technical Specifications:
Brand: SNDWAY
Model Number: SW-DS120
Measurement Range: 0.05m to 120m
Measurement Accuracy: ±2mm
Laser Class: Class II
Laser Wavelength: 635nm
Laser Output: <1mW
Tilt Sensor: Electronic Angle Sensor (±90°)
Measurement Functions: Single Distance, Continuous, Area, Volume, Pythagorean (Indirect)
Data Storage Capacity: 30 Sets
Display: 4-Line LCD with Backlight
Measurement Units: m / in / ft
Ingress Protection: IP54
Auto Power Off: 150 seconds
Laser Auto Cut-off: 20 seconds
Battery Life: Approximately 8000 measurements

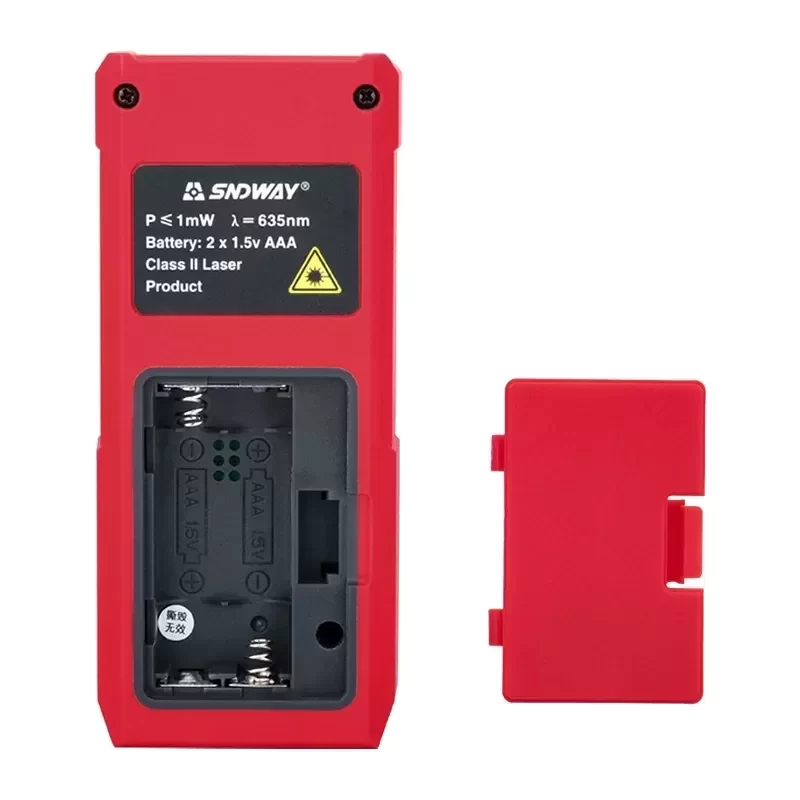

Power Supply: 2 x 1.5V AAA Alkaline Batteries
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Housing Material: ABS Plastic
Dimensions: 112mm x 50mm x 25mm
Device Weight: 110g
Gross Weight: 0.320 kg
Industrial Application:
This instrument is critical for facility managers and structural engineers requiring rapid, non-contact dimensional verification of large-scale infrastructure. The electronic level and 120m range are specifically optimized for calculating the vertical clearance of high-bay warehouse ceilings and determining the volume of industrial storage tanks where physical tape measurement is hazardous or impossible due to height or obstruction constraints.
Procurement Data:
We supply Original Engineering products directly from the manufacturer to ensure data integrity and device longevity. Please verify Technical Compatibility with your specific surveying requirements. Contact our sales team for current stock levels and estimated Lead Time for volume orders.
Key Attributes
Magnification: 00x
Type: Handheld Laser Rangefinders
Place of origin: Guangdong, China
Ingress Protection: IP54
Material: ABS Plastic
Size: 112*50*25MM
Weight: 230g
Logo/graphic design: SCREEN PRINTING
Model number: SW-DS120
Brand name: SNDWAY
Customized support: OEM
Warranty: 1 year
Product name: SNDWAY SW-DS120 LASER DISTANCE METER
Feature 1: Larger Screen Display
Feature 2: Electronic angle distance meter
Level Type: Electric Level
Accuracy: 2mm
Auto power off: 150s
Battery life/times: 8000 Times
Color: Red
Packaging and Delivery
Selling Units: Single item
Single package size: 20X13X10 cm
Single gross weight: 0.320 kg
