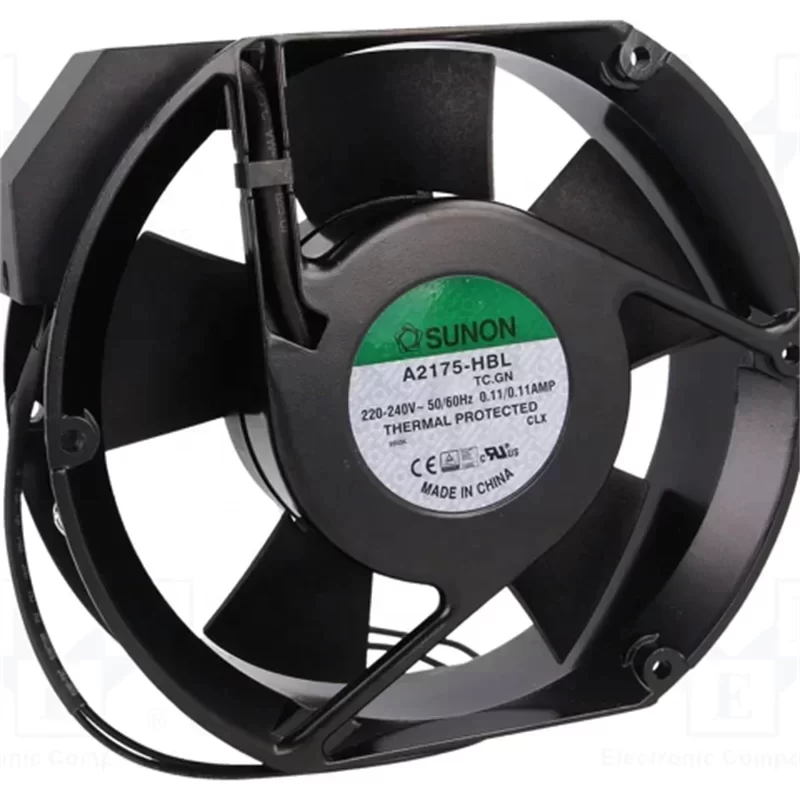

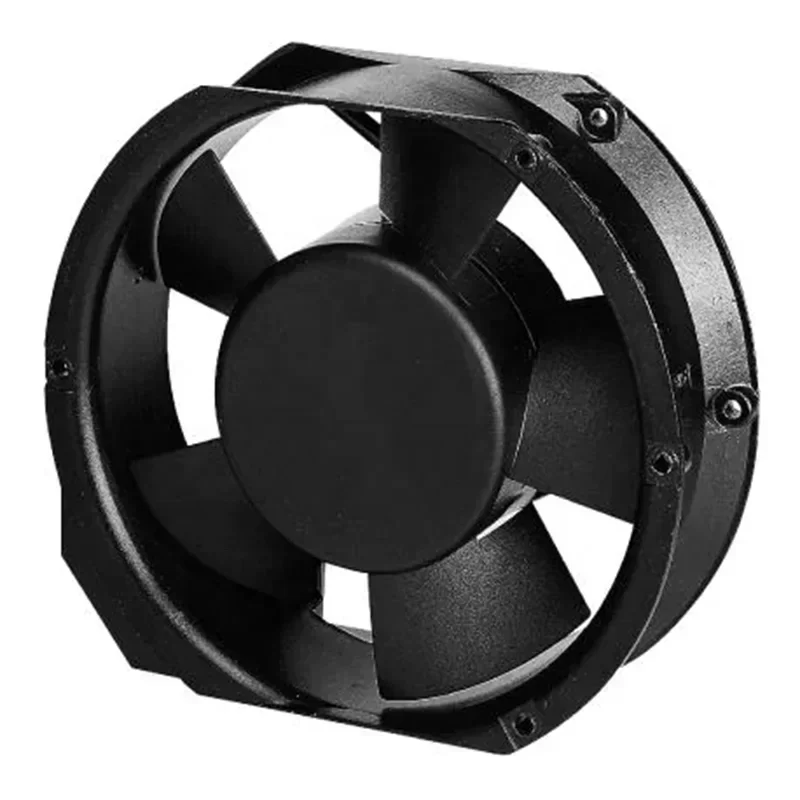

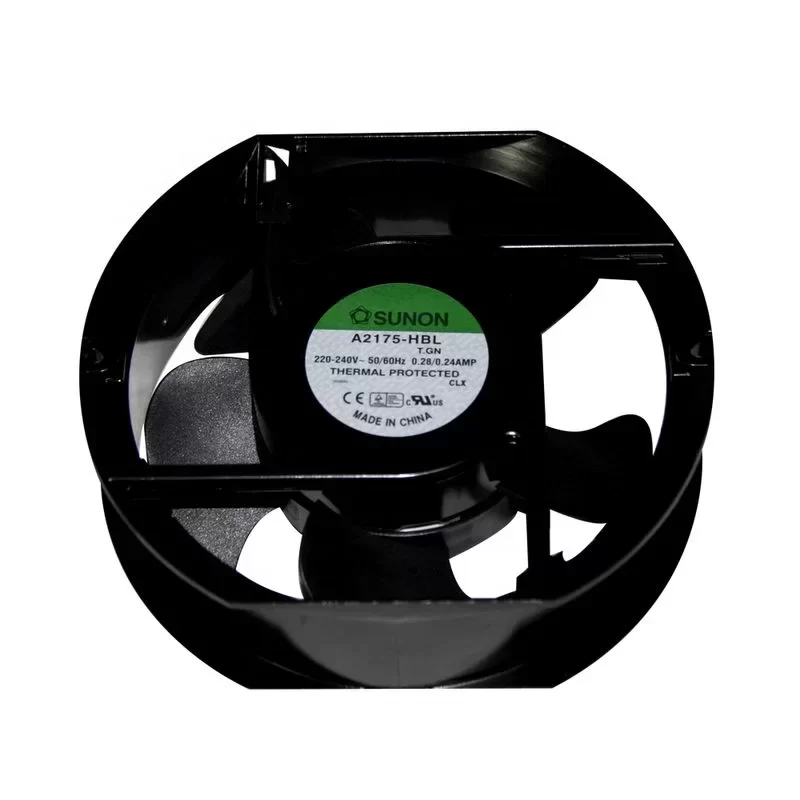

Sunon A2175HBL 230V AC 171x151x51mm Inverter Axial Fan

Sunon A2175HBL 230V AC 171x151x51mm Inverter Axial Fan

Name: Sunon A2175HBL 230V AC 171x151x51mm Inverter Axial Fan
Brand: SUNON
SKU: 10000006635631
Availability: InStock
Rating: 5 (4 reviews)

$18.50

SKU: 10000006635631 Brand: SUNON

Description
Reviews (0)

Description

The Sunon A2175HBL is a high-performance industrial axial fan engineered for critical thermal management in high-density electronic enclosures and power conversion systems. This unit features a robust die-cast aluminum housing and a precision-engineered thermoplastic impeller designed for continuous operation in demanding environments. Utilizing a dual ball bearing system, the A2175HBL ensures extended service life and reliable performance under varying thermal loads, maintaining high-speed rotation stability at 2800 RPM. This model is optimized for Original Engineering applications where high static pressure and volumetric airflow are required to maintain system integrity.

Technical Specifications:
Manufacturer: Sunon
Model Number: A2175HBL
Frame Size: 171 x 151 x 51 mm
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Input Power: 36 Watts
Rated Current: 0.24 Amps
Rated Speed: 2800 RPM
Maximum Airflow: 306 m³/h
Static Pressure: 0.48 Inch-H2O
Noise Level: 51 dBA
Bearing Type: Dual Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: Thermoplastic PBT (UL 94V-0)
Motor Type: Shaded Pole Motor
Insulation Class: Class B
Operating Temperature: -10°C to +70°C
Safety Certifications: UL, CE, TUV, VDE
Weight: 908g
Connection Type: Lead Wires
Technical Compatibility: Standard 171mm Oval Mounting

Industrial Application:
The A2175HBL is specifically designed for integration into large-scale frequency inverters, server racks, and industrial control cabinets where heat dissipation is critical to prevent component degradation. Its high static pressure capability allows it to push air through dense filter mats and complex heat sinks, ensuring thermal stability in enclosed environments. This component is essential for maintenance and repair operations requiring high-reliability thermal regulation to minimize system downtime and extend the lifecycle of power electronics. Lead Time and availability are optimized for global B2B supply chains requiring consistent technical standards.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China
Brand name: Ebmpapst
Model number: A2175HBL
Voltage: 230V
Size: 171x151x51mm
Speed: 2800rpm
Air flow: 306m3/h
Current: 240mA
Power: 36W
Bearing type: Ball Bearing
Noise: 51dBA

Packaging and Delivery
Selling Units: Single item

Sunon A2175HBL 230V AC 171x151x51mm Inverter Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
