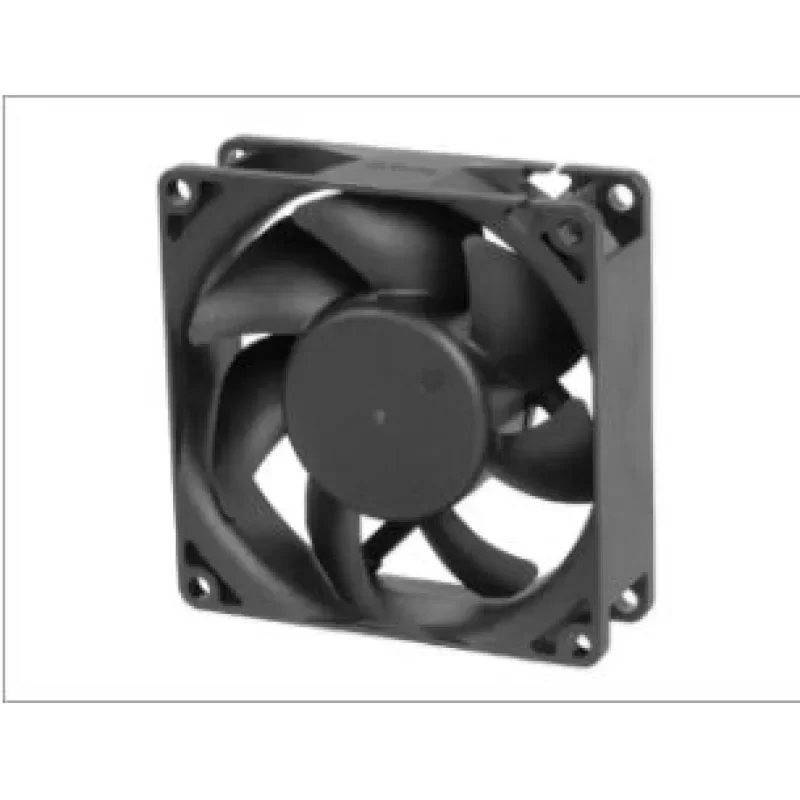

Sunon MA2082-HVL.GN 8cm 220V 240V AC Cabinet Axial Fan

Name: Sunon MA2082-HVL.GN 8cm 220V 240V AC Cabinet Axial Fan
Brand: SUNON
SKU: 62505571208
Availability: InStock
Rating: 5 (4 reviews)

$11.00

SKU: 62505571208 Brand: SUNON

Description
Reviews (0)

Description

The Sunon MA2082-HVL.GN is a high-performance AC axial cooling fan engineered for precision thermal management in industrial enclosures and electronic cabinets. Utilizing a dual ball bearing system, this 80mm unit ensures extended operational life and stable performance under continuous duty cycles. The MA series incorporates a shaded pole motor design with impedance protection, optimized for 220V to 240V AC power sources. This component is designed for high-density electronic environments where Technical Compatibility with standard 80mm mounting patterns is required. Its robust construction makes it ideal for CNC machine control panels, telecommunications racks, and power supply cooling where Original Engineering standards are critical for maintaining system uptime. The dual ball bearing configuration allows for multi-directional mounting without compromising the MTBF. This component serves as a critical replacement part for legacy cooling systems, ensuring minimal Lead Time during maintenance cycles.

Technical Specifications:
Manufacturer: Sunon
Model Number: MA2082-HVL.GN
Frame Dimensions: 80 x 80 x 25 mm
Rated Voltage: 220V – 240V AC
Frequency: 50/60 Hz
Input Power: 4.6 Watts
Rated Current: 0.215/0.255 Amps
Rated Speed: 2800/3200 RPM
Maximum Airflow: 40/41 CFM
Static Pressure: 0.18/0.21 Inch-H2O
Noise Level: 32/33 dBA
Bearing Type: Dual Ball Bearing
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Motor Design: Shaded Pole Motor
Insulation Resistance: 500M ohm at 500VDC
Dielectric Strength: 1500VAC for 1 minute
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Weight: 150g
Safety Certifications: UL, TUV, CE
Termination: Lead Wires
Mounting Type: Free Standing / Flange Mount
Ingress Protection: Standard Industrial Rating

Key Attributes
Voltage: 220(V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China Taiwan
Brand name: SUNON
Model number: MA2082-HVL.GN
Product name: MA2082-HVL.GN
Type: Axial Fan
Nominal voltage: 220V
Power consumption: 4.6w
Rotating speed: 3200 RPM
Air Volume: 40/41CFM
Current: 0.215/0.255A
Noise: 32/33DBA
Weight: 150g
Bearing: Ball Beairng

Packaging and Delivery
Selling Units: Single item

Sunon MA2082-HVL.GN 8cm 220V 240V AC Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
