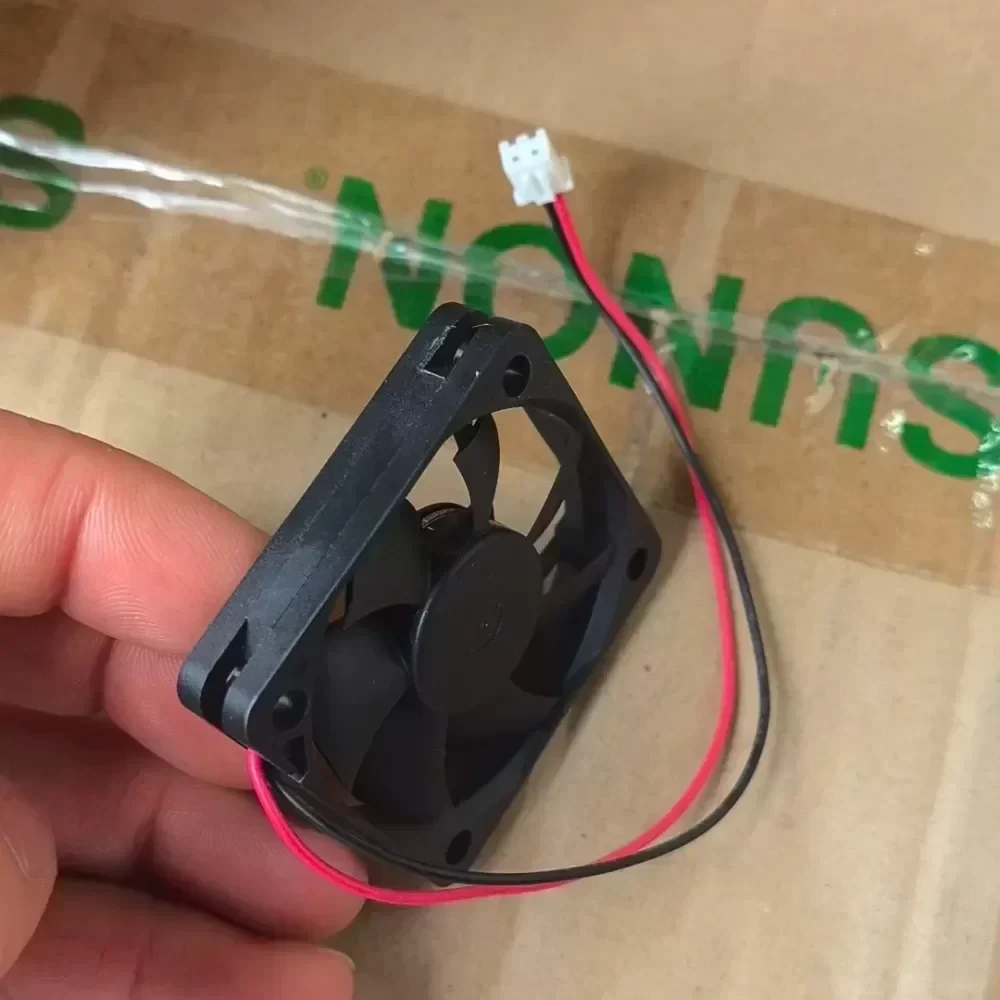

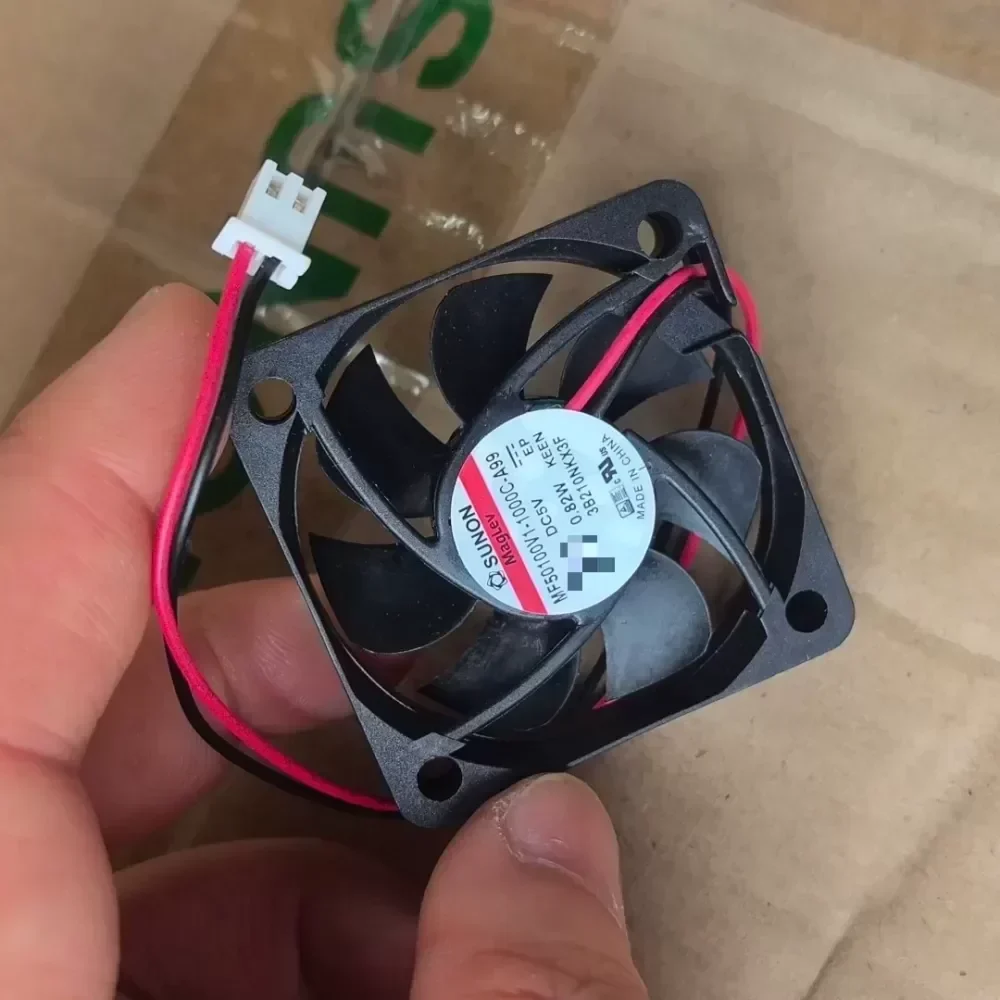

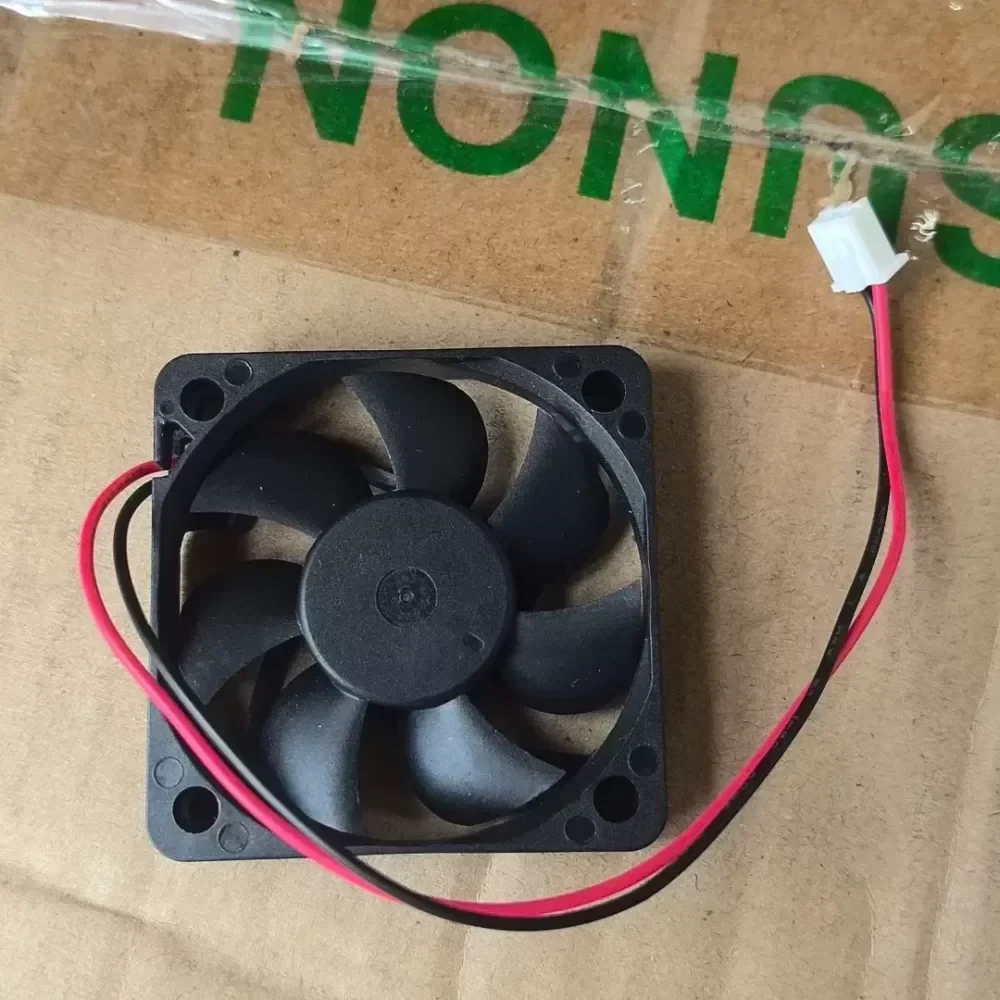

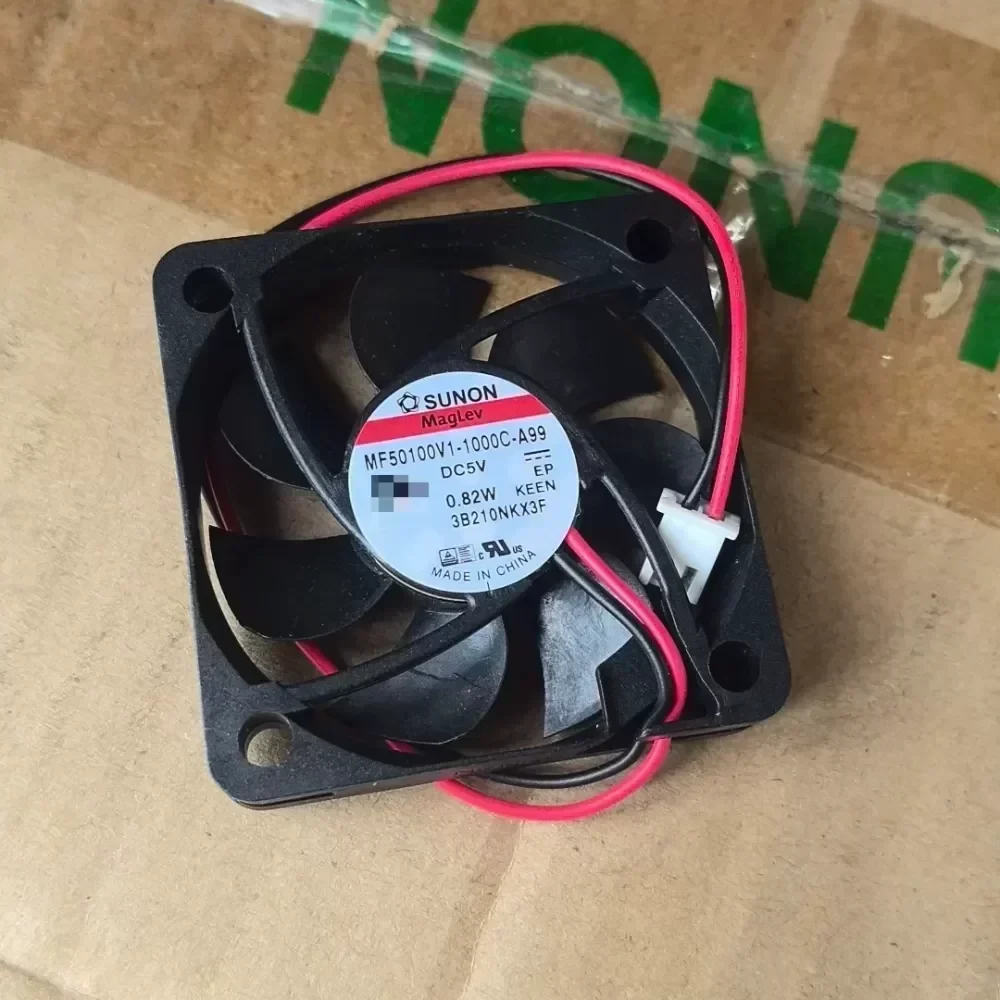

SUNON MF50100V1-1000C-A99 fan

Name: SUNON MF50100V1-1000C-A99 fan
Brand: SUNON
SKU: 919429192379
Availability: InStock
Rating: 5 (4 reviews)

$2.57

SKU: 919429192379 Brand: SUNON

Description
Reviews (0)

Description

Secure optimal thermal management for compact electronic assemblies with the SUNON MF50100V1-1000C-A99. This unit features Sunon’s proprietary MagLev (Magnetic Levitation) technology, specifically the Vapo bearing system, which eliminates physical contact between the shaft and bearing to significantly reduce noise and extend operational lifespan. Designed for high-density PCBs and low-profile enclosures, this 50mm x 50mm x 10mm axial fan delivers a precise balance of airflow and static pressure while maintaining an ultra-silent acoustic profile. The Original Engineering behind the MF series ensures resistance to dust and prevents oil leakage, making it superior to standard sleeve bearing alternatives. This component is engineered for Technical Compatibility with precision instrumentation, portable medical devices, and compact DVR/NVR surveillance systems where 5V logic and minimal acoustic interference are mandatory. The MagLev architecture ensures reliable startup and consistent RPMs, mitigating thermal throttling in enclosed chassis environments. Contact our supply chain team to verify current Lead Time and bulk availability.

Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
Model Number: MF50100V1-1000C-A99
Series: MagLev MF Series
Frame Dimensions: 50mm x 50mm x 10mm
Rated Voltage: 5V DC
Operating Voltage Range: 2.5V – 6V DC
Power Rating: 0.82 W
Rated Current: 0.164 A
Rotational Speed: 5000 RPM ± 15%
Maximum Airflow: 13.0 CFM (Cubic Feet per Minute)
Static Pressure: 0.12 Inch-H2O
Noise Level: 26.0 dB(A)
Bearing System: MagLev Vapo Bearing
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 60,000 Hours (at 40°C/65% RH)
Termination: 2-Wire Lead (Red +, Black -)
Wire Gauge: UL1007 26AWG
Weight: 20 g
Protection: Auto Restart / Polarity Protection
Safety Certifications: UL, CUR, TUV, CE

SUNON MF50100V1-1000C-A99 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
