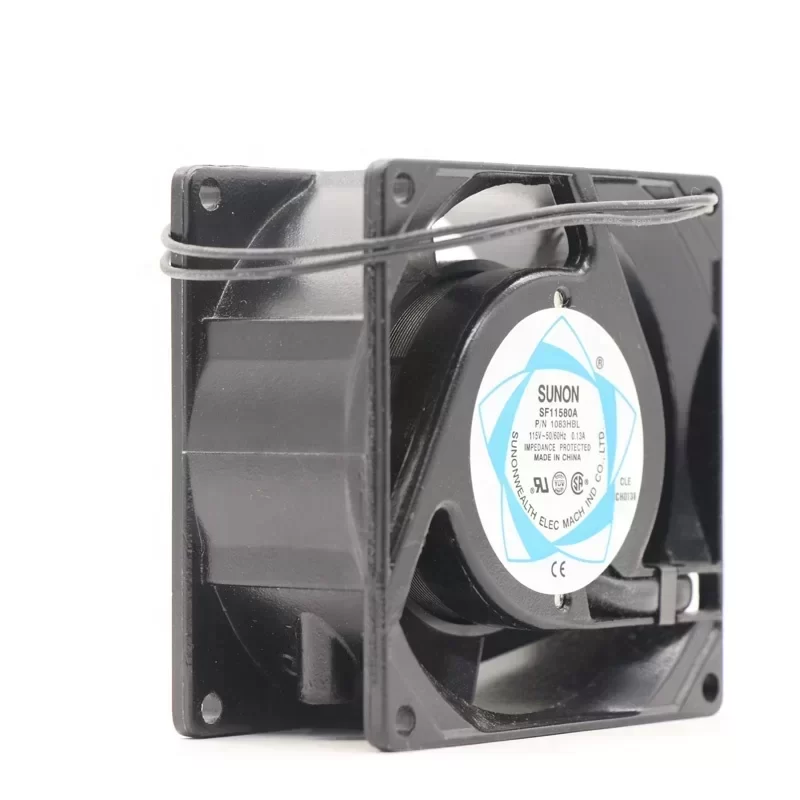

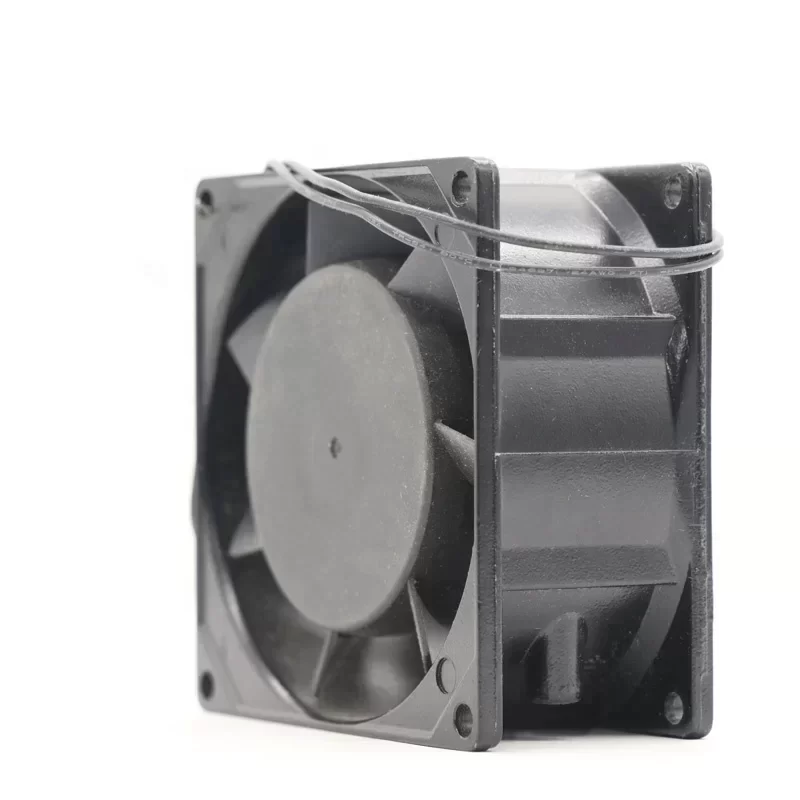

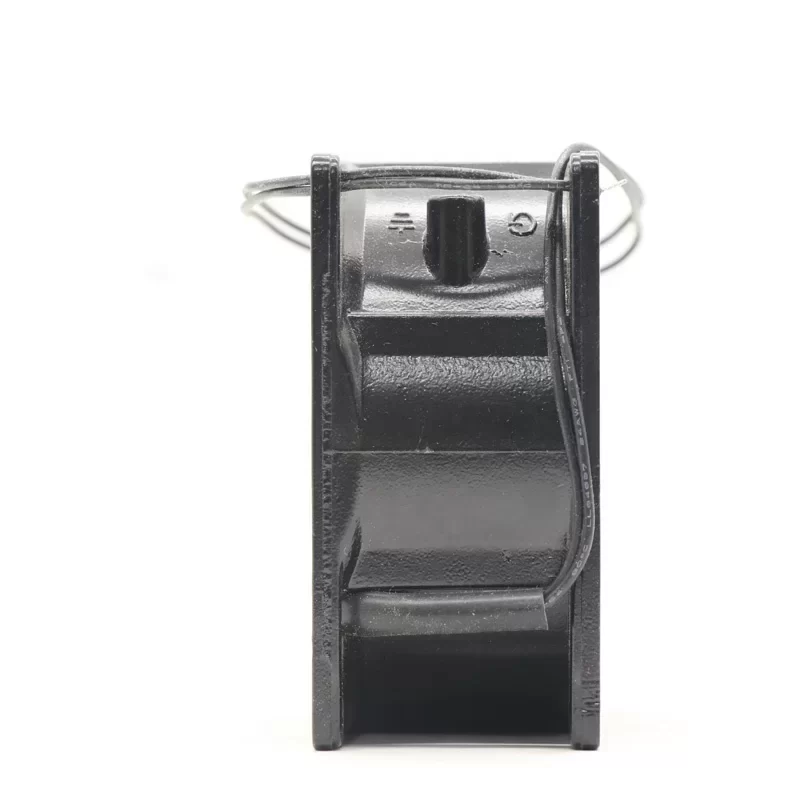

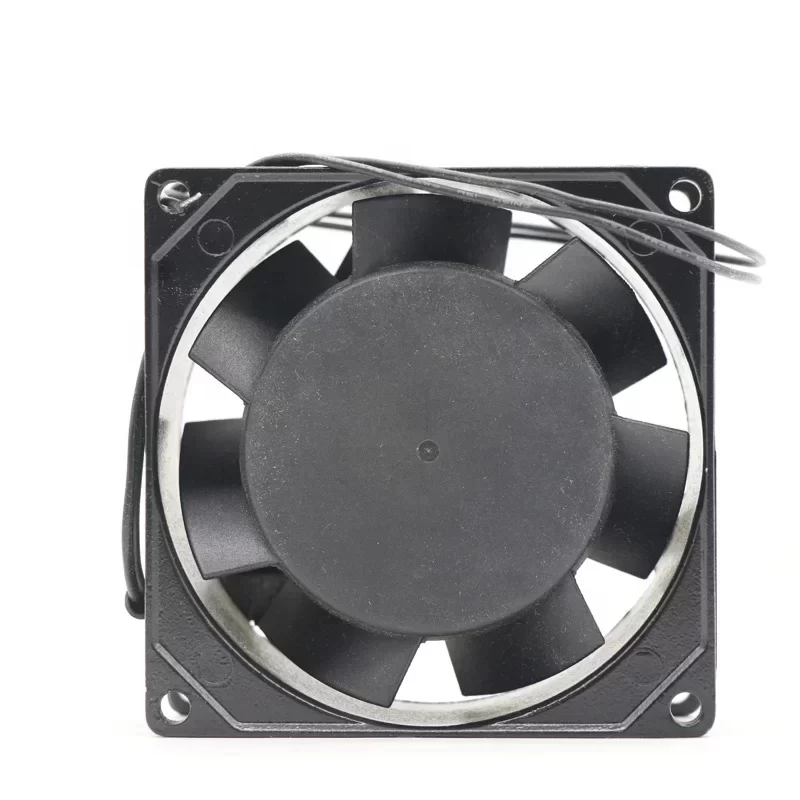

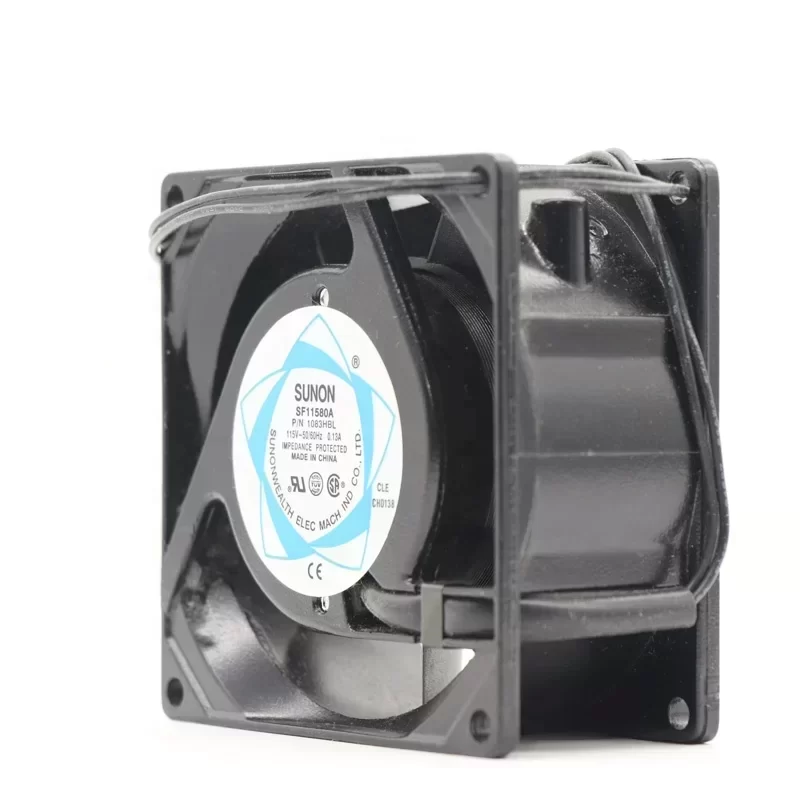

SUNON SF11580A 1083HBL.GN 115V AC 80x80x38mm Axial Fan

SUNON SF11580A 1083HBL.GN 115V AC 80x80x38mm Axial Fan

Name: SUNON SF11580A 1083HBL.GN 115V AC 80x80x38mm Axial Fan
Brand: SUNON
SKU: 62054237360
Availability: InStock
Rating: 5 (4 reviews)

$4.98

SKU: 62054237360 Brand: SUNON

Description
Reviews (0)

Description

The SUNON SF11580A 1083HBL.GN is a professional-grade AC axial cooling fan engineered for high-reliability thermal management in industrial and commercial environments. This 80x80x38mm unit features a robust aluminum die-cast frame and a high-precision dual ball bearing system, ensuring extended service life and stable performance in continuous operation. Designed for 115 VAC systems, it provides efficient heat dissipation for sensitive electronic components within enclosures, server racks, and power supply units. The SF11580A series is recognized for its original engineering standards, offering a balance of high static pressure and low acoustic noise, making it a critical component for maintaining system integrity in CNC machinery and telecommunications infrastructure.

Technical Specifications:
Brand: SUNON
Model Number: SF11580A 1083HBL.GN
Frame Dimensions: 80 x 80 x 38 mm
Input Voltage: 115 VAC (50/60 Hz)
Rated Current: 0.15 – 0.13 A
Power Consumption: 14 W
Rotational Speed: 2400 RPM
Airflow Capacity: 24 CFM
Bearing Type: Dual Ball Bearing
Frame Material: Aluminum Die-Cast
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 °C to +70 °C
Weight: 340 g
Mounting Type: Free Standing / Flange Mount
Warranty: 1 Year

Application Scenarios:
This axial fan is specifically utilized in industrial control cabinets, medical imaging equipment, and automated laboratory systems where consistent airflow is required to prevent thermal failure. Its durable construction makes it suitable for harsh environments requiring reliable lead time and original equipment manufacturer (OEM) quality standards.

Key Attributes
Voltage: 115 (V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China,TAIWNA
Brand name: SUNON
Model number: SF11580A 1083HBL.GN
Type: Axial Fan
Nominal voltage: 115V
Bearing Type: Ball Bearing
Power consumption: 14(w)
Current: 0.15(A)
Air flow: 2400RPM

Packaging and Delivery
Selling Units: Single item

SUNON SF11580A 1083HBL.GN 115V AC 80x80x38mm Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
