TG22580HA6BL Jiulong 380V AC axial fan

Name: TG22580HA6BL Jiulong 380V AC axial fan
SKU: 913484332715
Availability: InStock
Rating: 5 (4 reviews)

$24.29

SKU: 913484332715

Description
Reviews (0)

Description

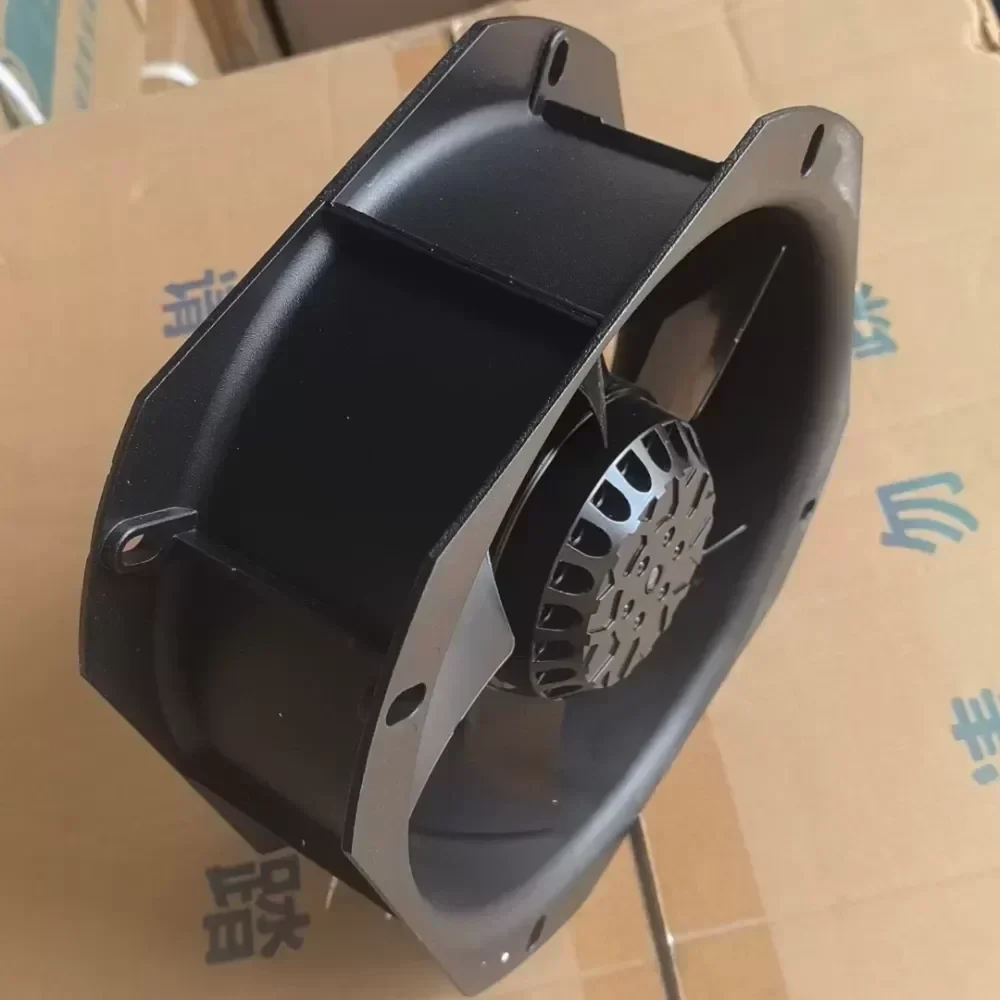

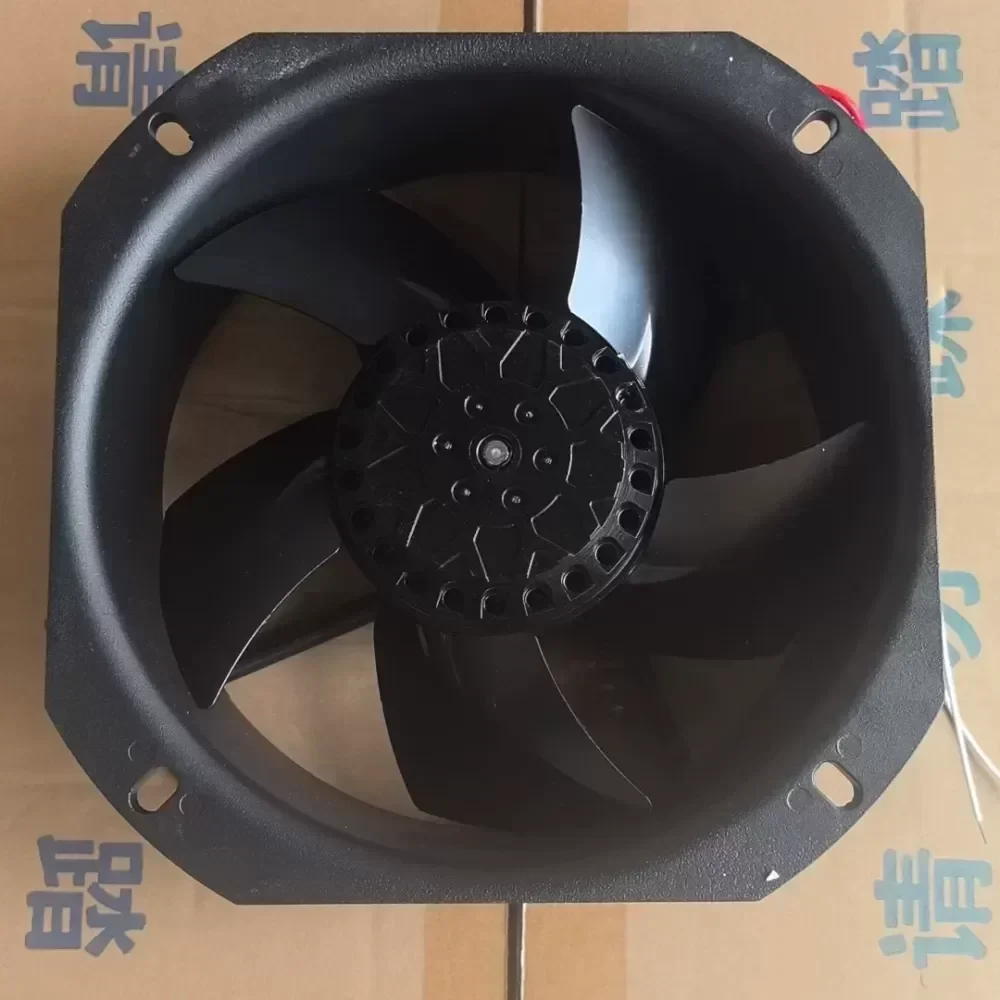

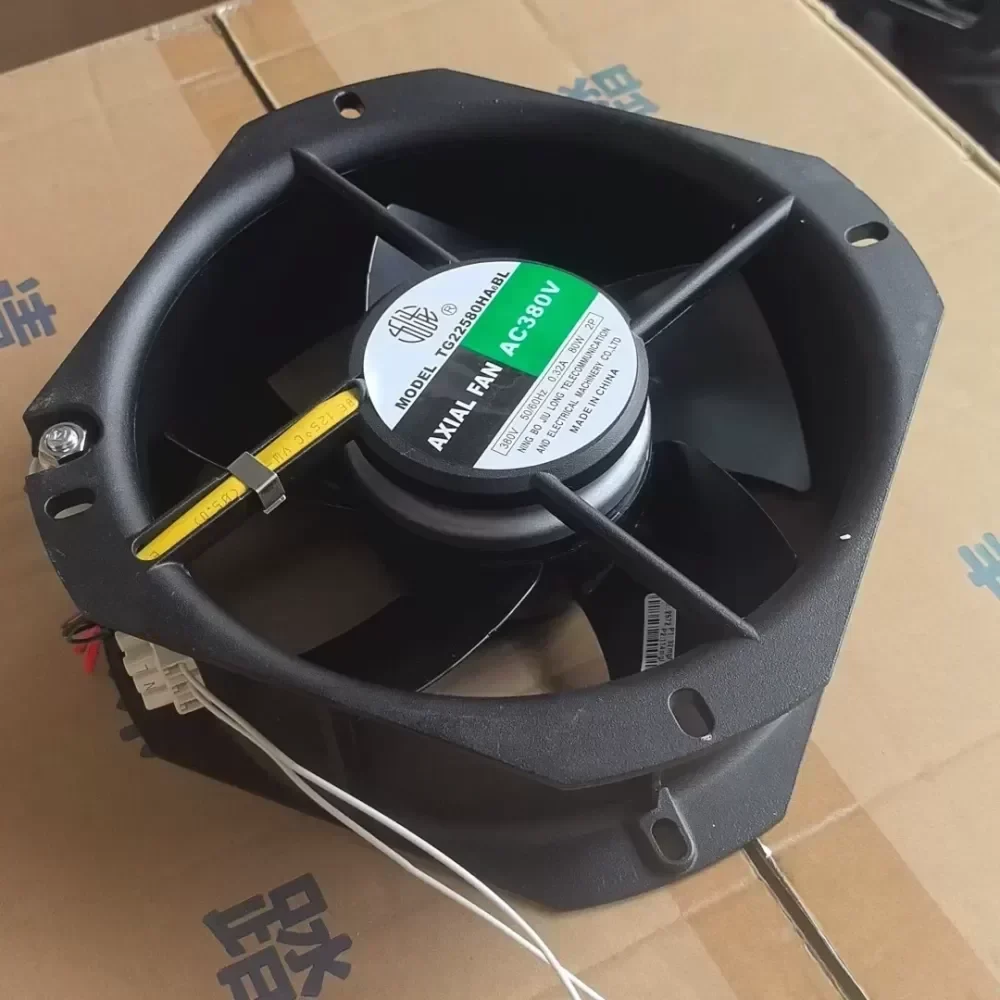

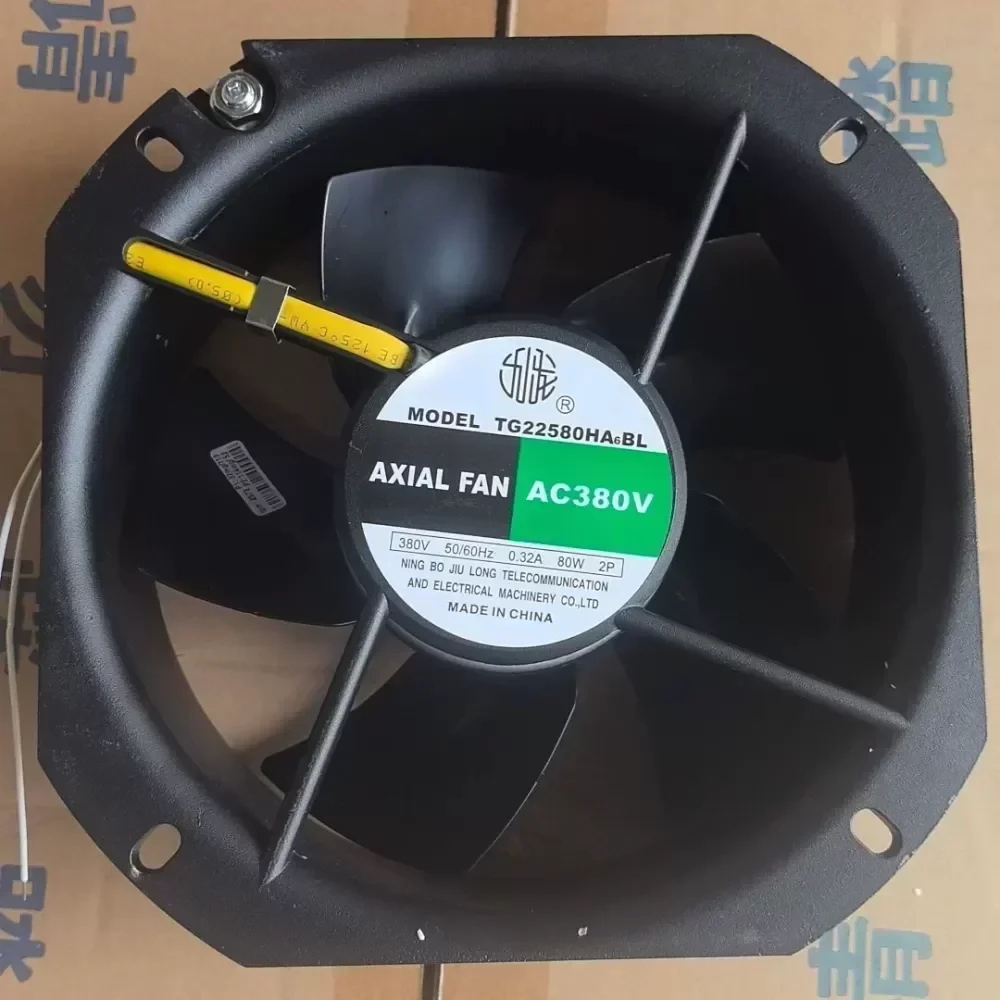

The Ningbo Jiulong TG22580HA2/6BL is a heavy-duty AC axial fan designed for high-capacity thermal dissipation in industrial power electronics. Sourced directly to ensure Original Engineering specifications, this 225mm unit utilizes a robust die-cast aluminum frame and a high-torque motor assembly to deliver consistent airflow against significant static pressure. It is specifically calibrated for 380V AC operation, making it the standard cooling solution for three-phase industrial machinery. The unit features a ball bearing system for extended service life and reduced maintenance intervals, ensuring reliability in continuous-duty applications.

Technical Specifications:
Manufacturer: Ningbo Jiulong Machinery
Model Number: TG22580HA2/6BL
Device Type: AC Axial Fan
Frame Dimensions: 225mm x 225mm x 80mm
Rated Voltage: 380V AC (3-Phase)
Power Consumption: 80W
Frequency: 50/60 Hz
Current Rating: 0.22 A
Rotational Speed: 2550 RPM
Max Airflow: Approx. 580 CFM (985 m³/h)
Bearing Type: Dual Ball Bearing
Housing Material: Die-Cast Aluminum with Anti-Corrosion Coating
Impeller Material: Reinforced PBT or Steel (High-Temp Resistant)
Noise Level: 70 dB(A)
Operating Temperature: -20°C to +70°C
Insulation Resistance: > 500MΩ
Dielectric Strength: 1500V AC/1min

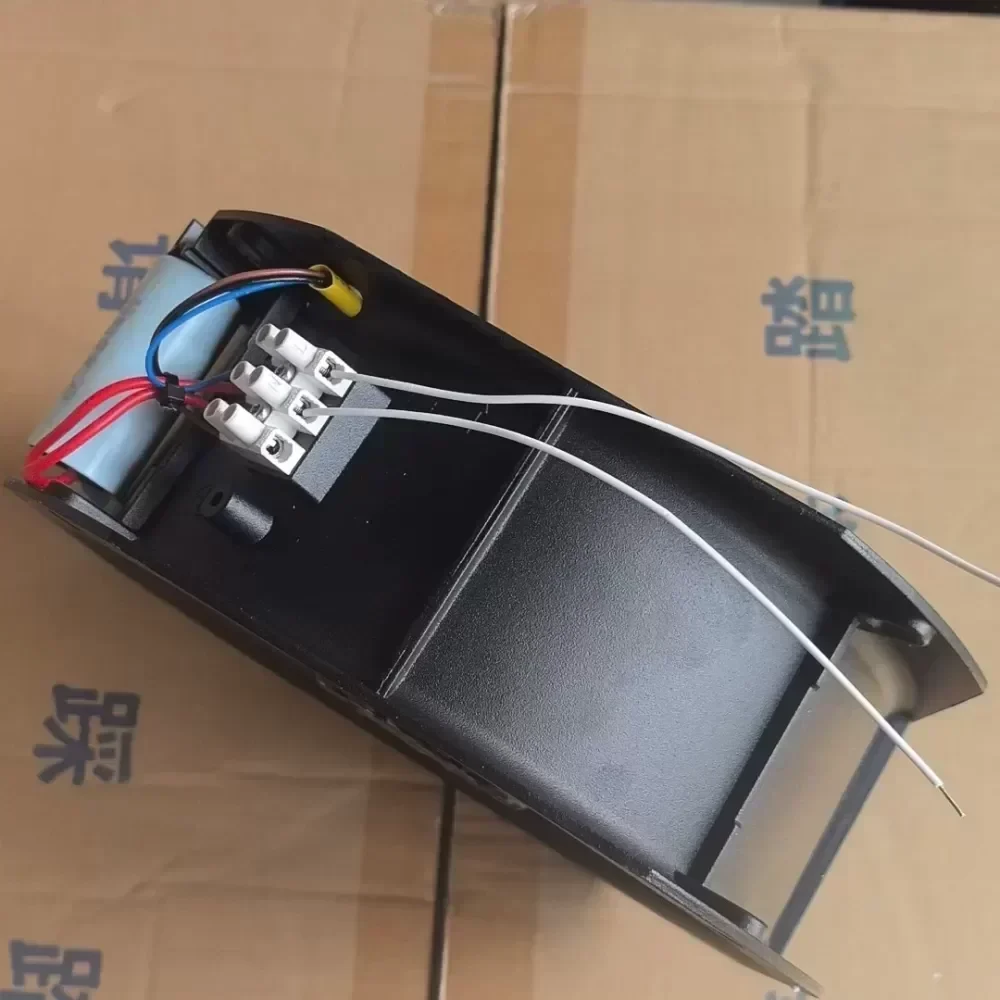

Connection: Lead Wire Interface
Protection Class: IP44
Weight: 2.1 kg

Industrial Application:
This fan is engineered to solve overheating issues in high-amperage welding equipment and industrial inverters. By providing high-velocity airflow directly over heat sinks and transformers, it prevents thermal throttling in MIG/TIG welding machines during long duty cycles. Its rugged design ensures Technical Compatibility with harsh manufacturing environments where vibration and heat are constant factors. Contact us for current Lead Time and availability.

TG22580HA6BL Jiulong 380V AC axial fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
