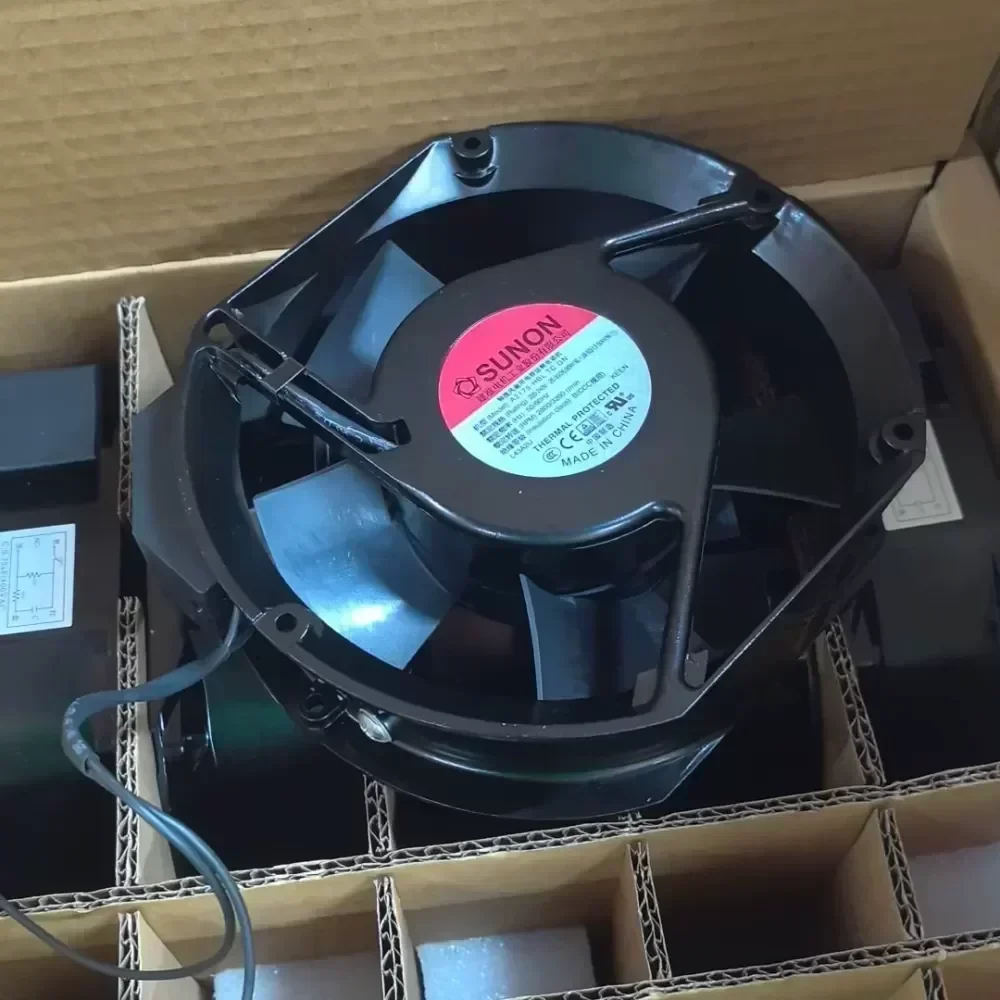

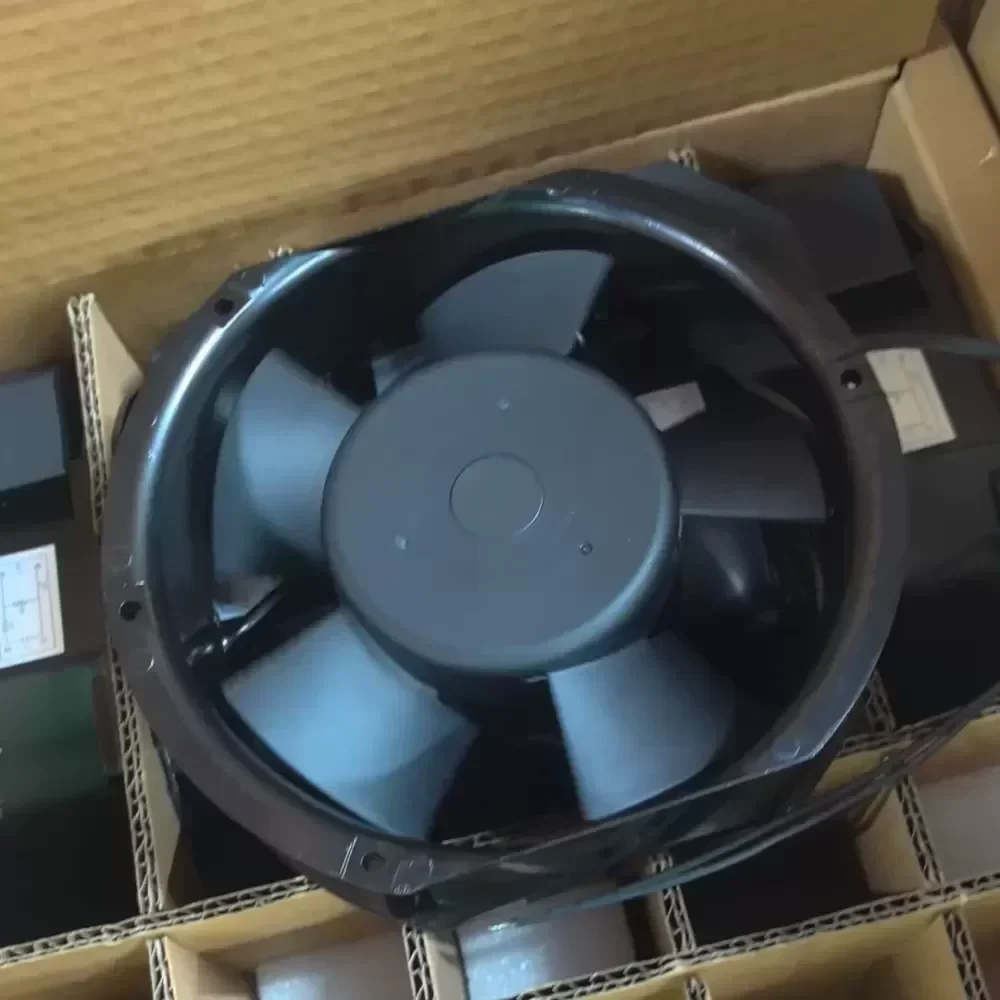

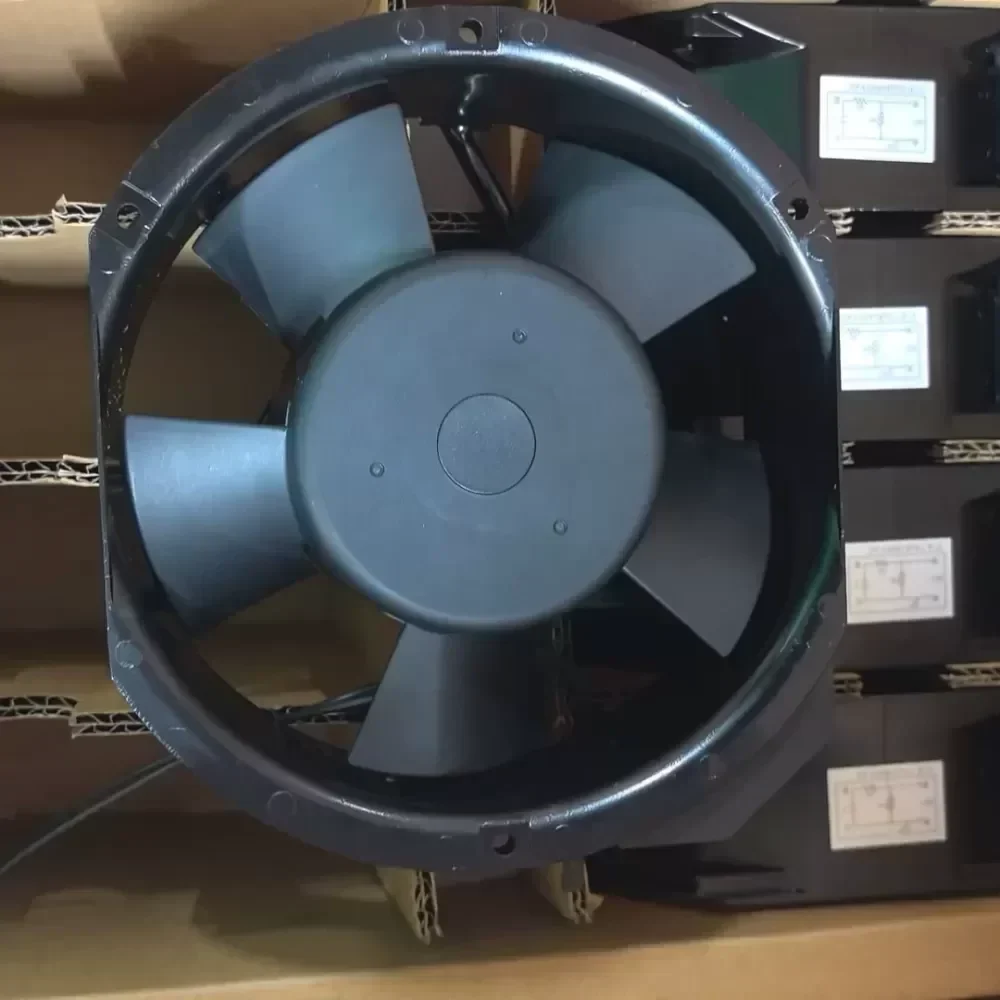

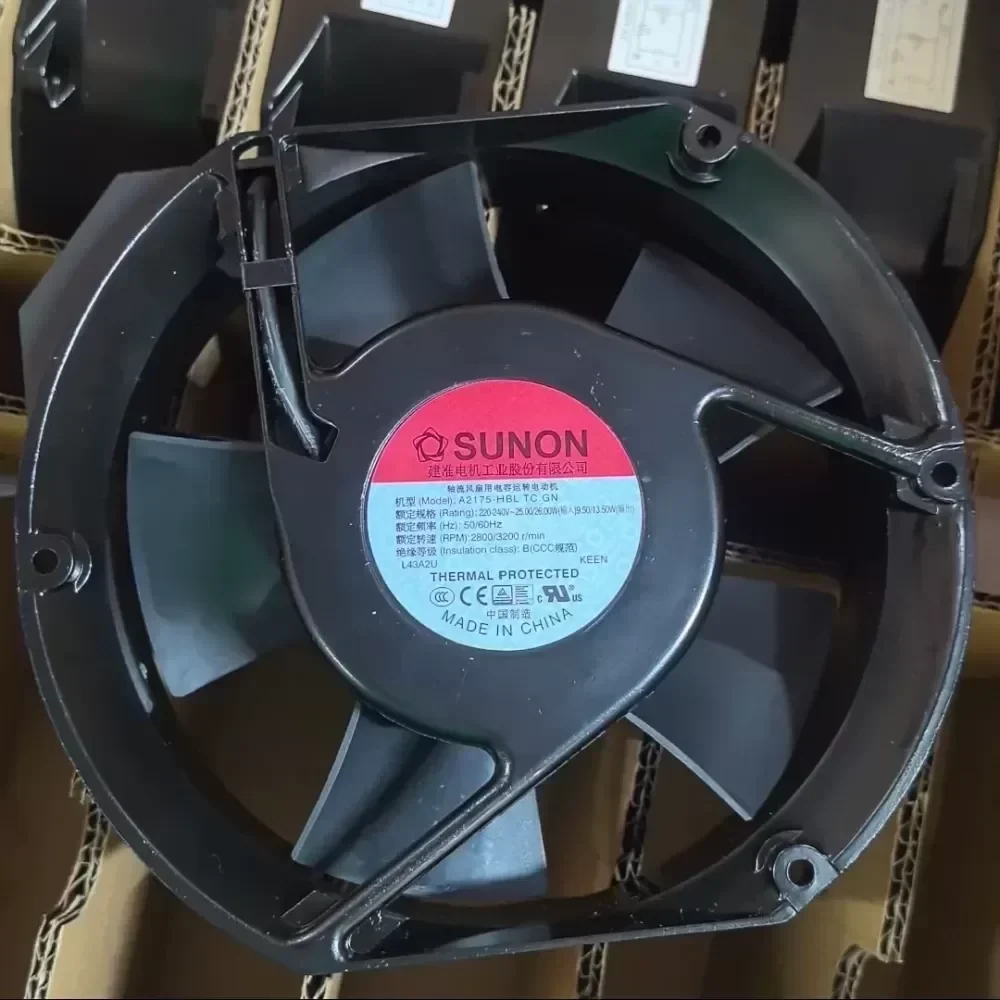

The new SUNON A2175-HBL TC.GN Axial Fan

Name: The new SUNON A2175-HBL TC.GN Axial Fan
Brand: SUNON
SKU: 916582614897
Availability: InStock
Rating: 5 (4 reviews)

$19.29

SKU: 916582614897 Brand: SUNON

Description
Reviews (0)

Description

The SUNON A2175-HBL TC.GN is a high-performance AC axial fan engineered for critical thermal management in industrial enclosures and server chassis. This unit features Original Engineering from Sunonwealth Electric Machine Industry Co., Ltd., utilizing a robust die-cast aluminum frame and a thermoplastic PBT impeller to ensure structural integrity under continuous operation. The model designation indicates a 220-240V AC input, high-speed configuration, and a durable ball bearing system designed for extended lifecycle value. The TC.GN suffix denotes a terminal connection type with environmentally compliant (RoHS) construction, eliminating the need for external capacitive lead wires in specific integration scenarios.

Technical Specifications:
Manufacturer: SUNON
Model Number: A2175-HBL TC.GN
Product Type: AC Axial Fan
Dimensions: 172mm x 151mm x 51mm
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Current Rating: 0.11/0.11 A
Power Consumption: 25/26 W
Rotational Speed: 2800/3200 RPM ± 10%
Max Airflow: 203/239 CFM
Max Static Pressure: 0.62/0.69 Inch-H2O
Noise Level: 51/58 dB(A)
Bearing Type: Precision Ball Bearing
Motor Architecture: Capacitor-Run Induction Motor
Frame Material: Aluminum Alloy (Die-Cast)
Blade Material: PBT Plastic (UL94V-0)
Insulation Class: Class B
Operating Temperature: -10°C to +70°C

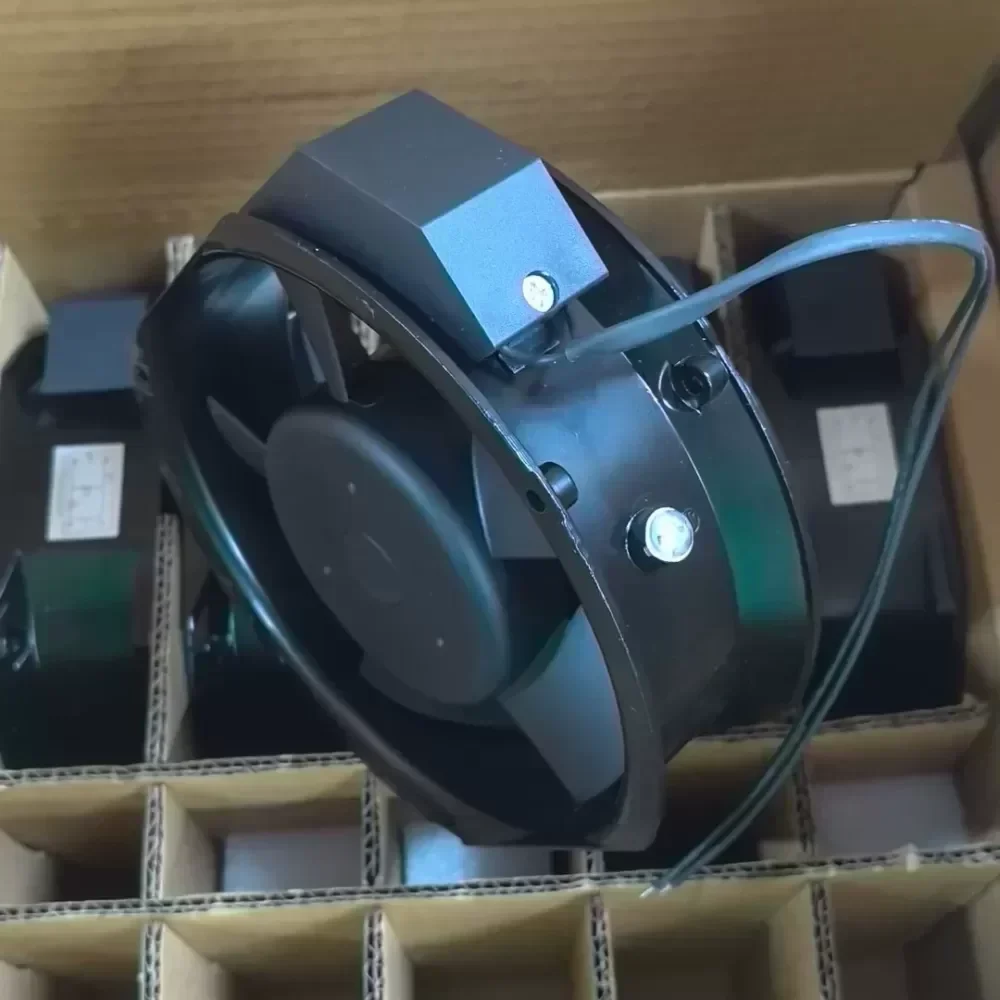

Termination Style: Terminal Type (Flat Pin)
Weight: 908 g
Safety Approvals: UL, CUR, TUV, CE
Environmental Compliance: RoHS (Green Product)

Industrial Application:
This fan is specifically optimized for high-density cabinet chassis cooling where back-pressure is a factor. Its high static pressure capabilities make it ideal for telecommunications racks, industrial automation control panels, and power supply units requiring consistent forced air convection. The ball bearing architecture ensures Technical Compatibility with 24/7 operational requirements, minimizing maintenance downtime in harsh industrial environments.

Procurement Data:
Ensure precise model matching for system integration. Contact us to verify current Lead Time and stock availability for this specific revision.

The new SUNON A2175-HBL TC.GN Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
