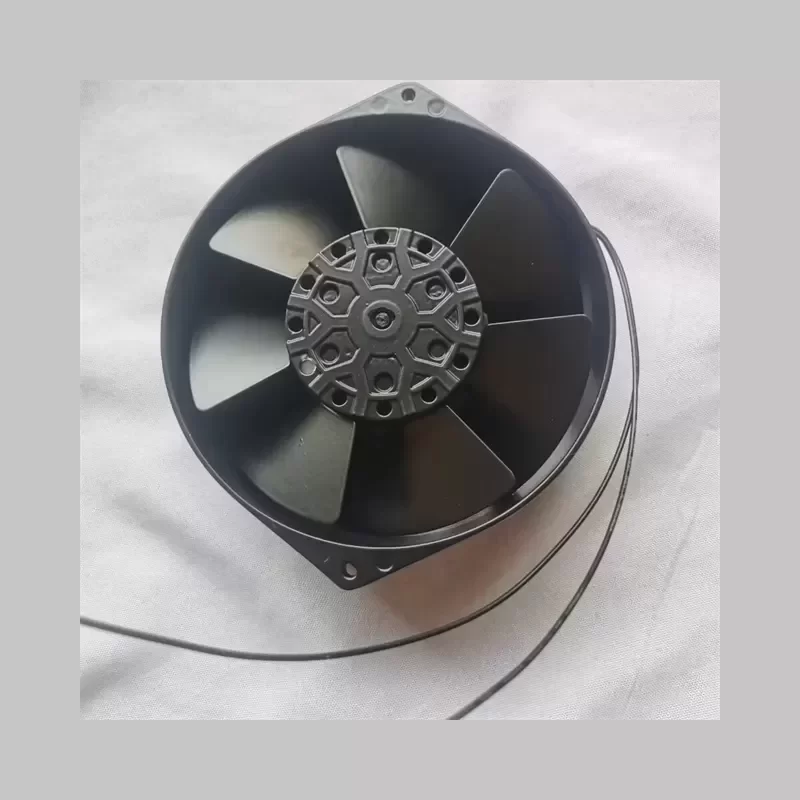

U7556KX-TP 172x150x55 230V Ventilation DC Axial Fan

Name: U7556KX-TP 172x150x55 230V Ventilation DC Axial Fan
SKU: 1601031439228
Availability: InStock
Rating: 5 (4 reviews)

$21.33

SKU: 1601031439228

Description
Reviews (0)

Description

The U7556KX-TP is a high-performance AC axial fan engineered for critical thermal management in industrial power systems and electrical enclosures. Designed with a robust die-cast aluminum frame and metal impeller, this unit offers superior durability compared to plastic alternatives, ensuring structural integrity under high-vibration conditions. The 172x150x55mm form factor provides Original Engineering dimensional accuracy for seamless retrofitting into server racks, welding machines, and control cabinets. Operating at 230V AC, the motor utilizes a precision ball bearing system to sustain a high rotational speed of 2650 min-1, delivering a substantial volumetric airflow of 211 CFM. This airflow is essential for mitigating thermal loads in high-density electronic environments. Technical Compatibility is verified for systems requiring standard AC input with terminal pin connections. Please verify stock availability and current Lead Time for maintenance planning.

Technical Specifications
Model Number: U7556KX-TP
Component Type: AC Axial Cooling Fan
Frame Dimensions: 172mm x 150mm x 55mm
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Rotational Speed: 2650 min-1
Airflow Capacity: 211 CFM
Housing Material: Die-Cast Aluminum Alloy
Impeller Material: Metal
Bearing Structure: Dual Ball Bearing
Termination Style: Terminal Pins (TP)
Motor Protection: Impedance Protected
Operating Temperature Range: -10°C to +70°C
Mounting Pattern: Standard 162mm Center-to-Center
Net Weight: 0.800 kg

Industrial Application
This specific model is optimized for forced convection cooling within Variable Frequency Drive (VFD) inverters and high-power rectifier cabinets. The metal blade construction allows the fan to operate reliably in environments with elevated ambient temperatures and potential particulate contaminants, preventing thermal throttling of sensitive IGBT modules and power transformers.

Key Attributes
Voltage: 230v
Mounting type: Other
Warranty: Other
Blade material: Metal
After-sales service provided: Online support
Place of origin: Guangdong, China
Model number: U7556KX-TP
Fan type: AC Axial Brushless Fan
Product name: Inverter fan
Size: 172x150x55mm
Speed: 2650 min-1
Application: Industry
Air Flow: 211.CFM
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item
Single package size: 17.2X15X5.5 cm
Single gross weight: 0.800 kg

U7556KX-TP 172x150x55 230V Ventilation DC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
