UF-80A11BTH FULLTECH 115V AC 80x80x38mm Axial Fan

UF-80A11BTH FULLTECH 115V AC 80x80x38mm Axial Fan

Name: UF-80A11BTH FULLTECH 115V AC 80x80x38mm Axial Fan
Brand: Fulltech
SKU: 62306287366
Availability: InStock
Rating: 5 (4 reviews)

$23.45

SKU: 62306287366 Brand: Fulltech

Description
Reviews (0)

Description

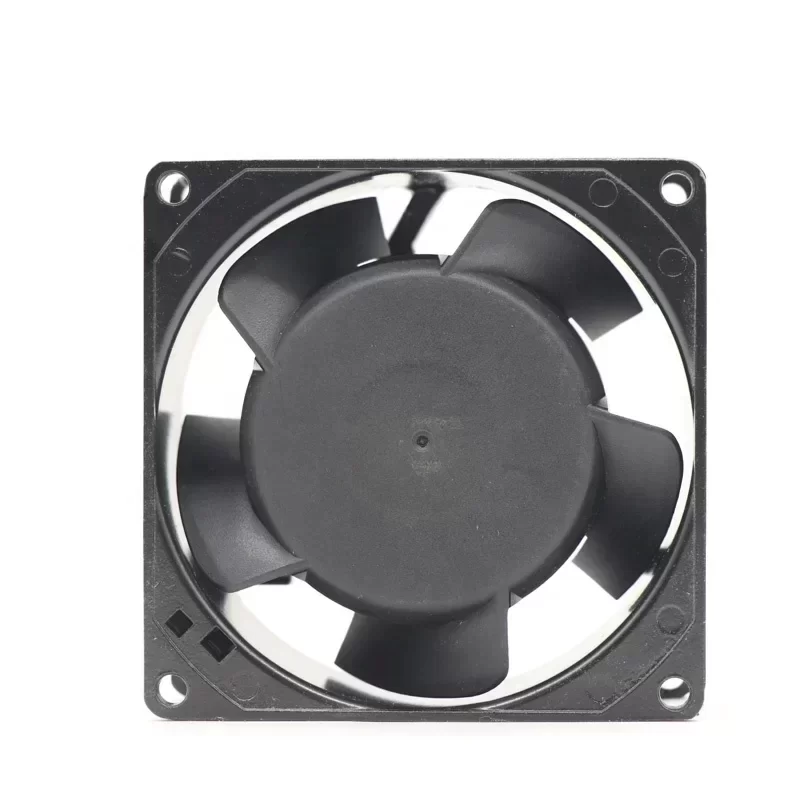

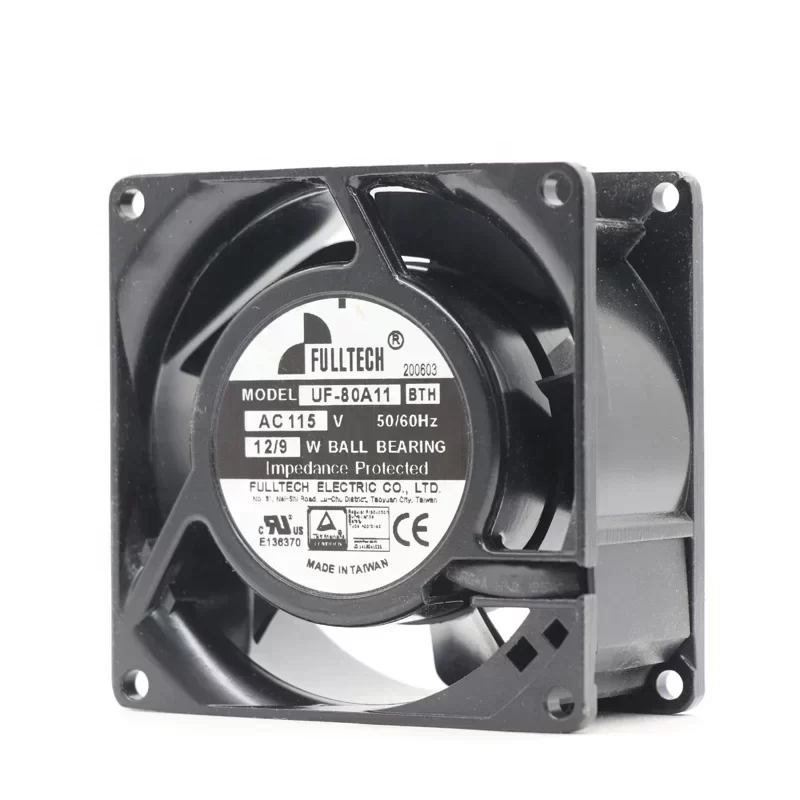

The Fulltech UF-80A11BTH is a high-performance industrial axial cooling fan engineered for critical thermal management in demanding B2B environments. This 80x80x38mm unit features a robust die-cast aluminum frame and metal blades, ensuring structural integrity and flame resistance under high thermal loads. Utilizing a precision dual ball bearing system, the UF-80A11BTH provides an extended service life and allows for versatile mounting in any orientation within electrical cabinets or server enclosures. This model is optimized for 115V AC operation, delivering consistent airflow to prevent component degradation in high-density electronic systems.

Technical Specifications:
Manufacturer: Fulltech
Model Number: UF-80A11BTH
Fan Type: Axial Cooling Fan
Dimensions: 80 x 80 x 38 mm
Frame Material: Die-cast Aluminum
Blade Material: Metal
Bearing Type: Dual Ball Bearing
Nominal Voltage: 115V AC
Frequency: 50/60 Hz
Input Power 50Hz: 9W
Input Power 60Hz: 12W
Rated Current 50Hz: 0.12A
Rated Current 60Hz: 0.14A
Rotational Speed 50Hz: 2500 RPM
Rotational Speed 60Hz: 3000 RPM
Airflow 50Hz: 24 CFM
Airflow 60Hz: 30 CFM
Static Pressure 50Hz: 0.13 Inch-H2O
Static Pressure 60Hz: 0.18 Inch-H2O
Termination: Terminal Type
Operating Temperature Range: -10°C to +70°C
Insulation Resistance: 100M Ohm at 500V DC
Dielectric Strength: 1500V AC for 1 minute
Safety Compliance: UL, CUL, TUV, CE
Weight: 340g

Industrial Application and Technical Compatibility:
The UF-80A11BTH is specifically designed for high-density electronic packaging and industrial control systems. Its metal construction provides superior heat dissipation and resistance to environmental contaminants compared to standard plastic components. This model is a critical spare part for maintaining optimal operating temperatures in CNC machinery, power supplies, and telecommunications infrastructure. Original Engineering ensures seamless integration into existing systems, reducing maintenance lead time and preventing equipment downtime due to thermal throttling. The high-speed (H) rating and terminal (T) connection type facilitate rapid installation and high-velocity cooling in restricted spaces.

Key Attributes
Voltage: 115(V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Metal
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China
Brand name: Fulltech
Model number: UF-80A11BTH
Type: Axial Fan
Nominal voltage: 115V
Bearing Type: Ball Bearing
Power consumption: 12/9W
Current: 0.14/0.12A
Air flow: 24/30CFM
Speed: 2500/3000RPM

Packaging and Delivery
Selling Units: Single item

UF-80A11BTH FULLTECH 115V AC 80x80x38mm Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
