Description

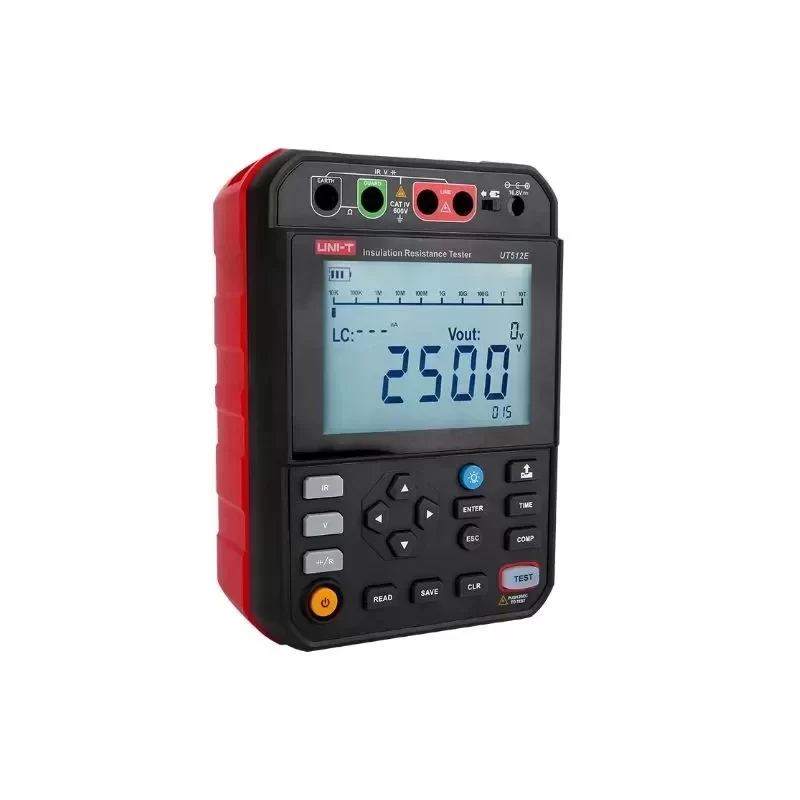

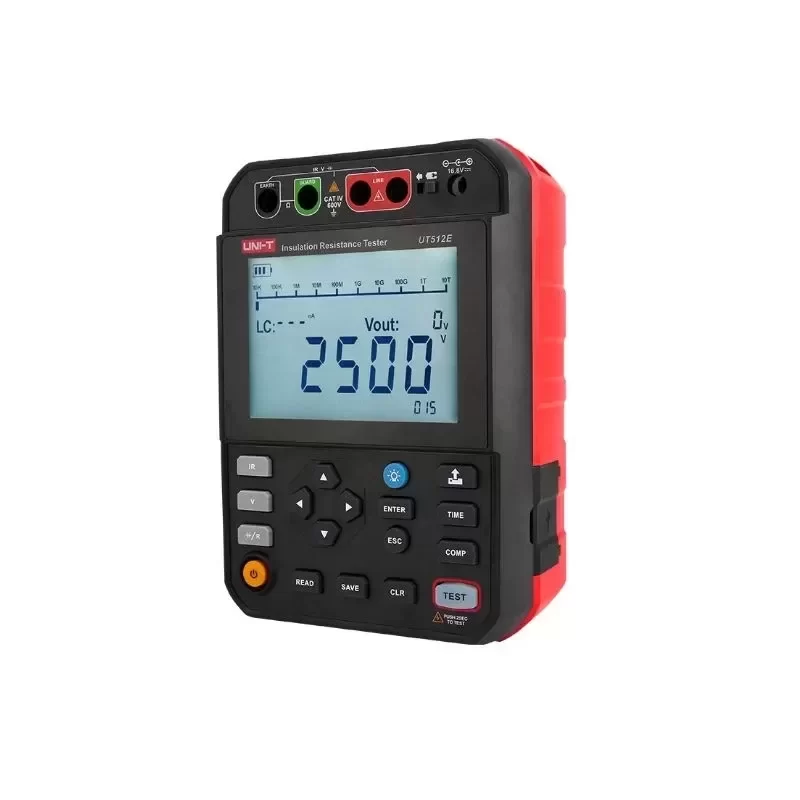

The UNI-T UT512E is a precision Digital Insulation Resistance Tester designed for electrical maintenance and industrial diagnostics. This Megohmmeter offers robust performance in critical automation environments, ensuring safety and compliance in high-voltage systems.
UT512E Key Features
- Industrial Grade: Engineered with a rugged, impact-resistant ABS housing and double insulation for field durability.
- High Performance: Delivers precise insulation testing up to 2.5KV with auto-calculation of PI (Polarization Index) and DAR.
- Connectivity: Features a dedicated USB interface for seamless data logging and PC analysis via UNI-T software.
- Reliability: Certified to CAT III 600V and CAT IV 300V safety standards with overload protection.
Technical Specifications for UT512E
Comprehensive engineering data for verification:
| Part Number | UT512E |
| Manufacturer | UNI-T (Uni-Trend) |
| Test Voltage Output | 250V / 500V / 1000V / 2500V |
| Insulation Resistance Range | 0.0MΩ to 100GΩ |
| Short Circuit Current | < 2mA |
| AC/DC Voltage Measurement | 30V to 600V |
| Power Supply | 8 x 1.5V Batteries (LR14) or DC Adapter |
| Display Type | Large LCD with Backlight (9999 Counts) |
| Dimensions (H x W x D) | 202mm x 155mm x 94mm |
| Net Weight | Approx. 2.0 kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | < 85% RH |
| Safety Rating (IP/Cat) | CAT III 600V, CAT IV 300V |
| Interface | USB 2.0 |
| Data Storage | 18-Group Internal Memory |
| Advanced Functions | PI (Polarization Index), DAR, Auto Range |
| Product Status | Active |
| Country of Origin | China |
Industrial Applications
Frequently deployed in Power Generation, Cable Manufacturing, and Industrial Maintenance. This unit is critical for controlling transformer insulation integrity and motor winding safety.
Installation & Quality Assurance
This UT512E is a genuine spare part. Please refer to the official UNI-T manual for wiring diagrams and firmware configuration.
Key Attributes
Accuracy Class: ±(5%+5)
Measuring Range: 2.50TΩ
Testing Voltage: 2500V
Place of Origin: Guangdong, China
Model Number: UT512E
Brand Name: UNI-T
Dimensions: 238 * 166 * 90.5mm
Display Type: Digital Only
Operating Temperature: -4 to 122°F (-20 to 50°C)
Capacitance test: 0.01uF~2.0uF
Low resistor test: 0.1Ω~600Ω
PI test: Automatic display
DAR test: Automatic display
CAT rating: CAT rating
Certificates: CE/UKCA
Packaging and Delivery
Selling Units: Single item
Single package size: 30X21X18 cm
Single gross weight: 2.500 kg
