Description

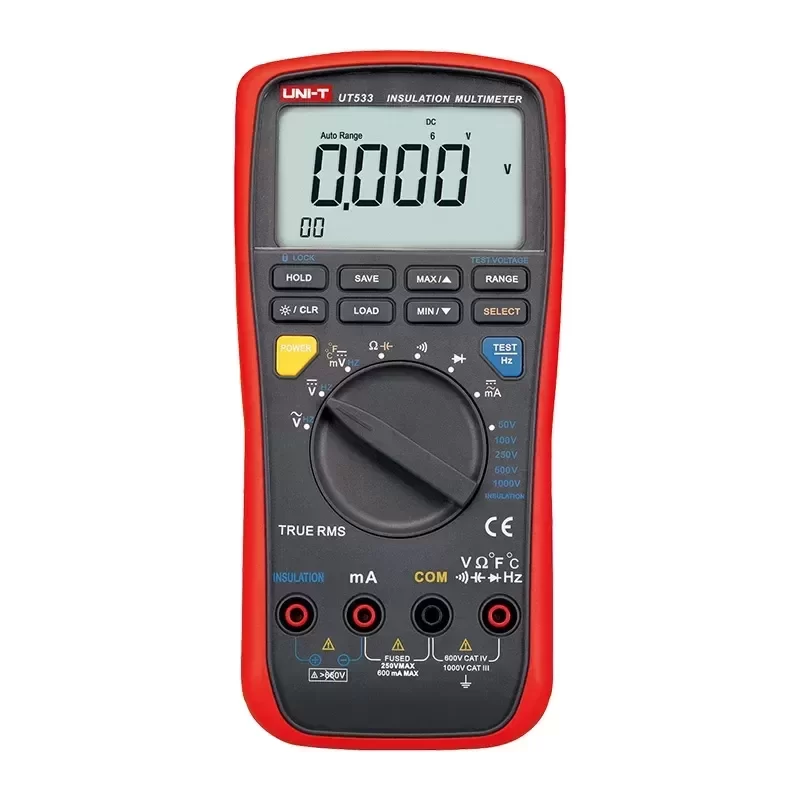

The UNI-T UT533 is a professional-grade True RMS Digital Insulation Multimeter engineered for rigorous industrial diagnostics and preventative maintenance. This dual-function instrument combines a high-precision digital multimeter with a wide-range insulation resistance tester, streamlining field operations by eliminating the need for multiple devices. Built with Original Engineering standards, the UT533 delivers reliable performance in high-noise electrical environments, ensuring Technical Compatibility with variable frequency drives (VFDs) and non-linear loads. Its robust architecture supports critical safety ratings, making it suitable for power distribution systems and electromechanical troubleshooting. Short Lead Time availability ensures rapid deployment for facility maintenance teams.
Technical Specifications:
Manufacturer: Uni-Trend Technology (UNI-T)
Model Reference: UT533
Instrument Type: True RMS Digital Multimeter / Insulation Tester Combo
Display Architecture: 6000 Counts LCD with Backlight
Insulation Test Voltages: 50V, 100V, 250V, 500V, 1000V
Insulation Resistance Range: 0.1 MΩ to 2.0 GΩ
DC Voltage Accuracy: ±(0.09% + 6)
AC Voltage Range: Up to 1000V (True RMS)
DC Voltage Range: Up to 1000V
AC/DC Current Range: 60mA to 600mA
Resistance Measurement: 600 Ω to 40 MΩ
Capacitance Range: 10nF to 100µF
Frequency Response: 60Hz to 1MHz
Temperature Measurement: -40°C to +537°C
Data Logging: 99-slot internal memory
Safety Category: CAT III 1000V / CAT IV 600V
Input Impedance: ≥10 MΩ
Power Supply: 1.5V Batteries (AA) x 6
Single Package Dimensions: 260mm x 110mm x 130mm
Gross Weight: 1.15 kg
Material: High-Impact ABS Polymer
Industrial Application:
Designed for the comprehensive analysis of motor windings, power cables, and transformers. The UT533 is essential for identifying dielectric breakdown and insulation degradation in industrial machinery. Technicians utilize the 1000V insulation test mode to verify cable integrity in harsh environments, while the True RMS voltage measurement ensures accurate readings on distorted waveforms found in modern power electronics and HVAC control systems.
Key Attributes
Measuring Current Range: 600mA
Measuring Voltage Range: 1000V
Parameters Measured: DC Current, AC Voltage, Temperature, DC Voltage, Capacitance, Continuity, Diode, Resistance, AC Current
Place of Origin: Guangdong, China
Model Number: UT533
Brand Name: UNI-T
Application: Industrial Use, Household Use
Dimensions: 480mm x 370mm x 365mm
Feature: Standard
Low Battery Indicator: Yes
Material: ABS
Max. AC Current: 600mA
Max. AC Voltage: 1000V
Max. DC Current: 600mA
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 10nF~100uF
Measuring Resistance Range: 0.1MΩ~2GΩ
Operating Temperature: 0~40
Product Name: Digital Insulation Multimeter
Display: 5999 Counts LCD
DC voltage (V): 1000V
AC voltage (V): 1000V
Warranty: 12 Months
Packaging and Delivery
Selling Units: Single item
Single package size: 26X11X13 cm
Single gross weight: 1.150 kg
