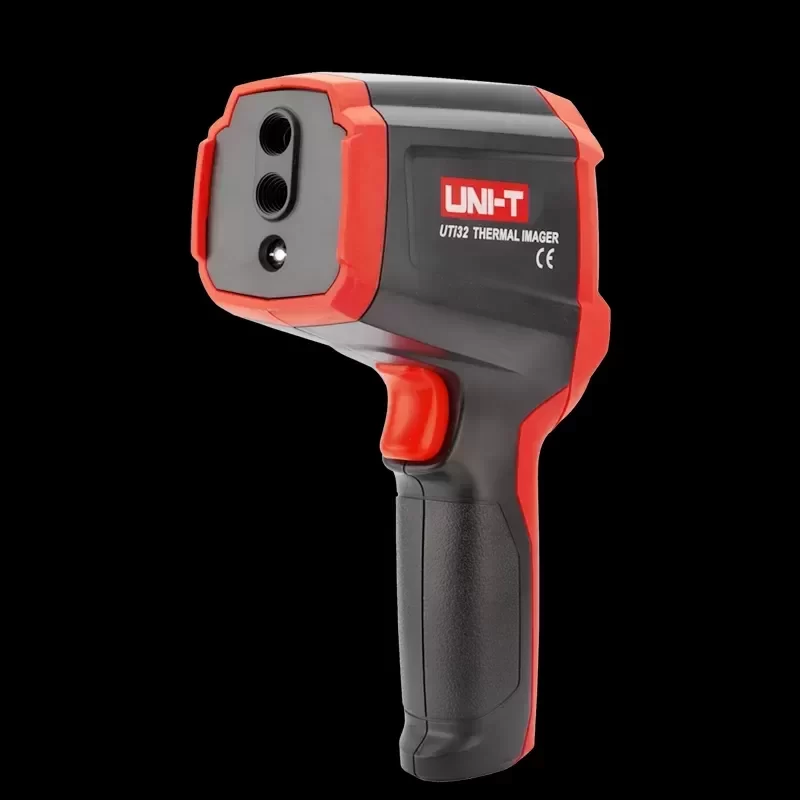

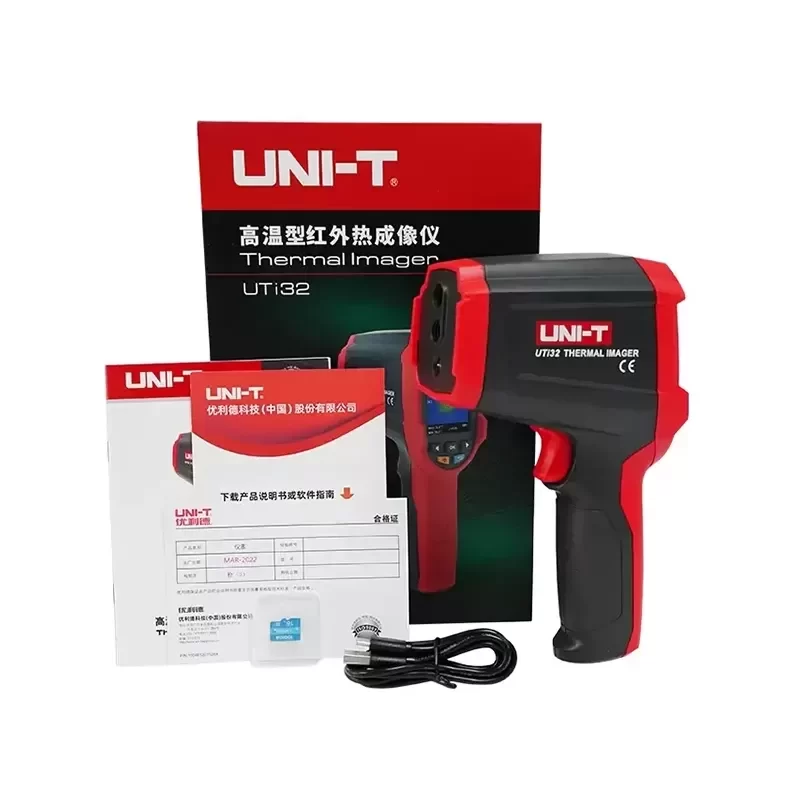

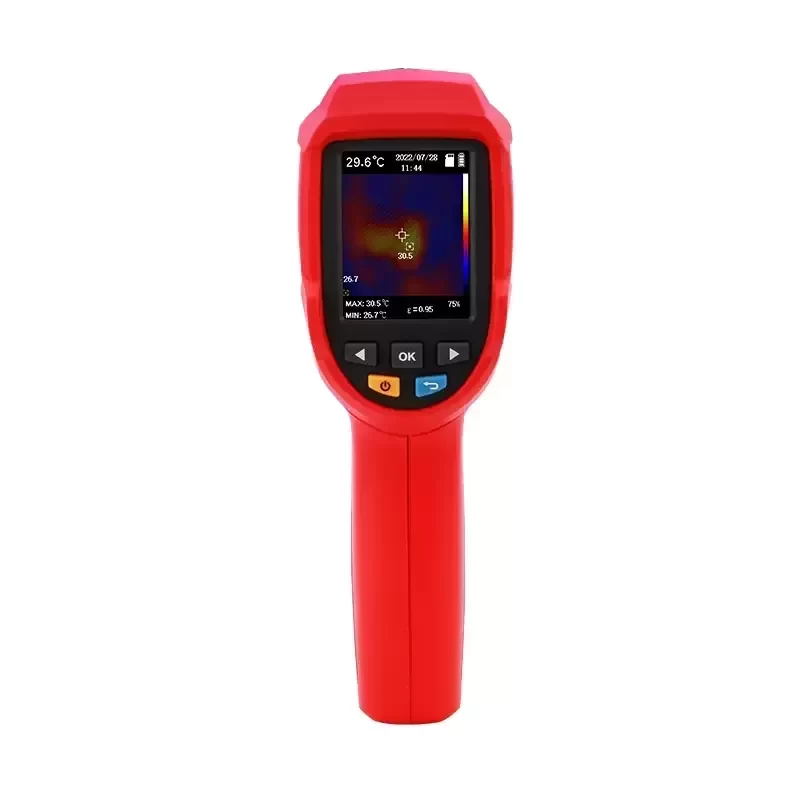

UTi32 UNI-T High Temperature 1000 Celsius Thermal Camera Imager

Description

The UNI-T UTi32 High Temperature Thermal Camera is a precision diagnostic tool engineered for extreme thermal environments, offering a measurement ceiling of 1000°C. This handheld imager utilizes a 32×32 pixel infrared sensor coupled with a visual camera for image blending, facilitating rapid identification of thermal anomalies in high-stress industrial components. The device architecture prioritizes Original Engineering standards, featuring automatic high/low spot tracking to instantly pinpoint critical temperature deviations. Its robust design ensures Technical Compatibility with rigorous field maintenance routines, providing essential thermal data for predictive analysis.

Brand: UNI-T
Model: UTi32
Device Type: High-Temperature Handheld Thermal Imager
IR Resolution: 32 x 32 pixels (1024 pixels)
Temperature Measurement Range: -20°C to 1000°C
Thermal Sensitivity (NETD): ≤150mK
Field of View (FOV): 30° x 30°
Spatial Resolution (IFOV): 11mrad
Display Type: 2.4-inch TFT LCD
Display Resolution: 320 x 240 pixels
Accuracy: ±2°C or ±2%
Emissivity Correction: Adjustable 0.01 to 0.99
Spectral Range: 8µm to 14µm
Image Modes: Thermal, Visual Image, Fusion
Color Palettes: Iron, Rainbow, Grey
Frame Rate: 9Hz
Storage Media: Micro SD Card (Supports up to 32GB)
Data Interface: USB Type-C
Battery System: Li-ion 3.7V 2600mAh Rechargeable
Operating Time: ≥6 hours
Drop Resistance: 1m
Gross Weight: 0.800 kg
Packaging Dimensions: 280mm x 160mm x 190mm

Application Scenario:
The UTi32 is critical for the metallurgical and petrochemical sectors, specifically for monitoring refractory insulation integrity in blast furnaces and inspecting kiln exteriors. Its 1000°C capacity allows operators to safely detect heat leakage and lining degradation while the equipment remains operational, preventing catastrophic failure and optimizing fuel efficiency. Please verify current Lead Time for volume procurement.

Key Attributes
Thermal color palettes: Other
Place of Origin: Guangdong, China
Model Number: UTi32
Brand Name: UNI-T
Product name: UTi32 High Temperature Thermal Camera

Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X19 cm
Single gross weight: 0.800 kg
