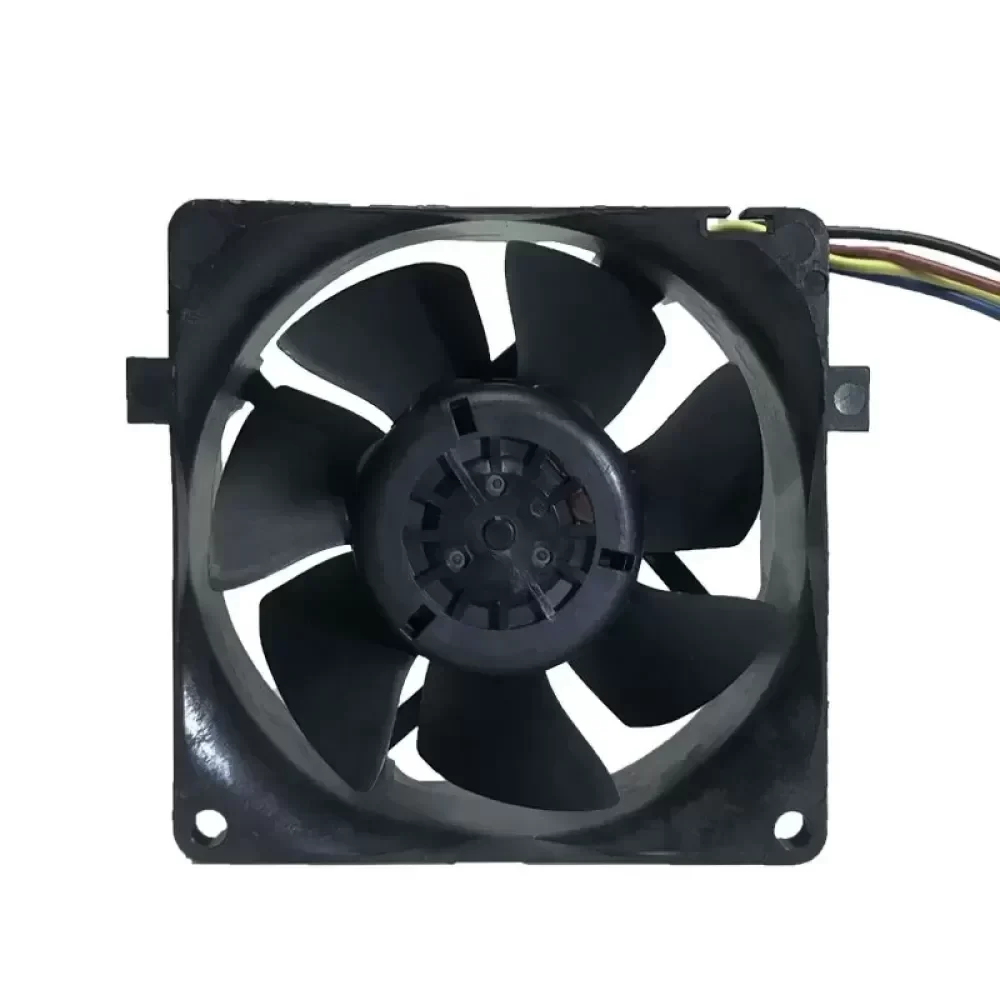

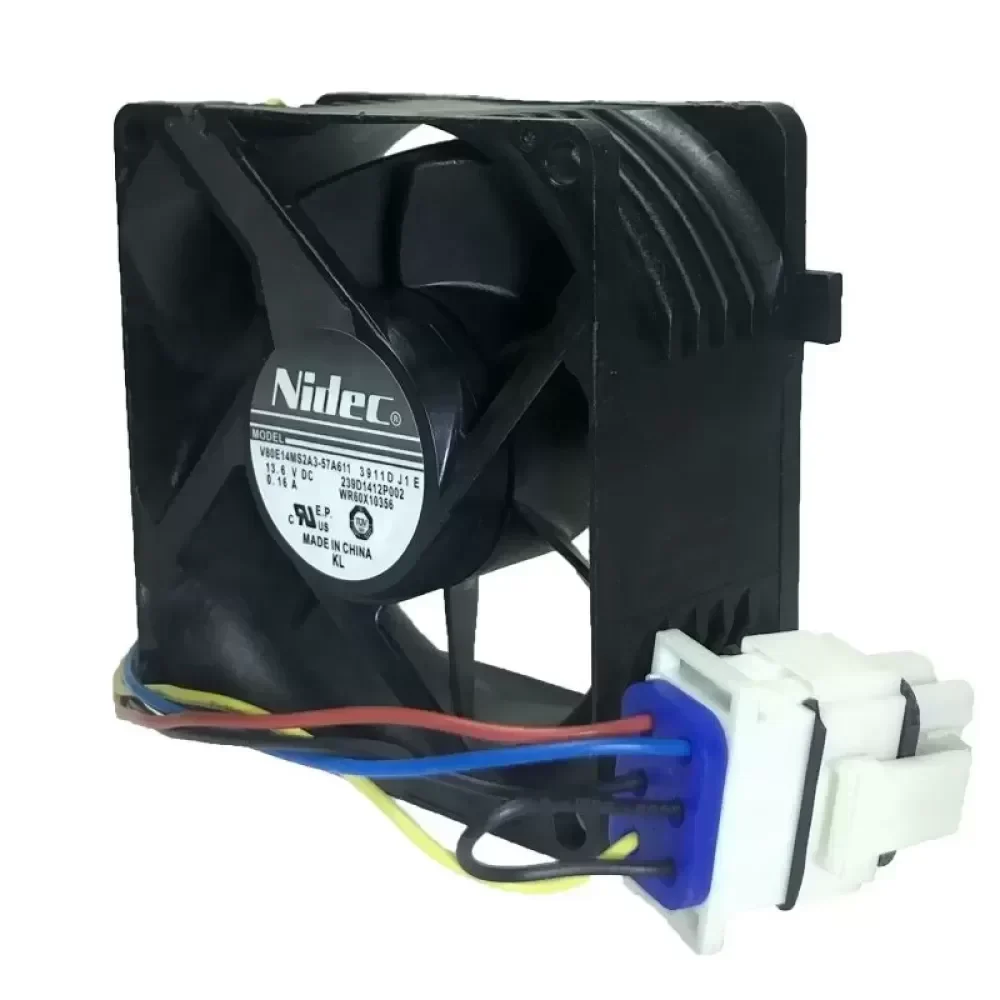

V80E14MS2A3-57A66 Nidec fan

Name: V80E14MS2A3-57A66 Nidec fan
Brand: Nidec
SKU: 676798334741
Availability: InStock
Rating: 5 (4 reviews)

$10.71

SKU: 676798334741 Brand: Nidec

Description
Reviews (0)

Description

The Nidec V80E14MS2A3-57A66 is a precision-engineered DC axial fan designed specifically for high-reliability thermal management in photovoltaic inverters and outdoor power electronics. This unit represents Original Engineering from Nidec, featuring a specialized 13.6V winding configuration optimized for the floating voltage levels found in solar power conversion systems and battery-backed infrastructure. Built on the robust 8038 frame platform, this fan integrates a high-torque motor with a fully encapsulated stator to achieve superior environmental resistance.

Technical Specifications:
Manufacturer: Nidec Corporation
Model Number: V80E14MS2A3-57A66
Component Type: Waterproof DC Axial Fan
Frame Dimensions: 80mm x 80mm x 38mm
Nominal Voltage: 13.6V DC
Operating Voltage Range: 12V – 14.5V DC
Bearing System: Dual Ball Bearing
Ingress Protection: IP68 (Waterproof/Dustproof)
Housing Material: Reinforced PBT (UL94V-0)
Impeller Design: High Static Pressure Blade Geometry
Termination: 4-Wire Lead (PWM Control/Tachometer)
Cooling Capacity: High Airflow Density
Operating Temperature: -10°C to +70°C
Weight: 0.21 kg

Industrial Application:
This component is critical for maintaining the operational efficiency of grid-tied PV inverters and outdoor telecom cabinets where moisture ingress and thermal density are primary failure risks. The V80E14MS2A3-57A66 provides the necessary static pressure to force air through dense aluminum heatsink fins, preventing thermal throttling during peak solar irradiance. Its IP68 rating ensures Technical Compatibility with equipment installed in exposed environments subject to rain, humidity, and dust. Please verify your system voltage requirements to ensure this 13.6V specification matches your maintenance needs. Contact us for current Lead Time and bulk procurement options.

V80E14MS2A3-57A66 Nidec fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
