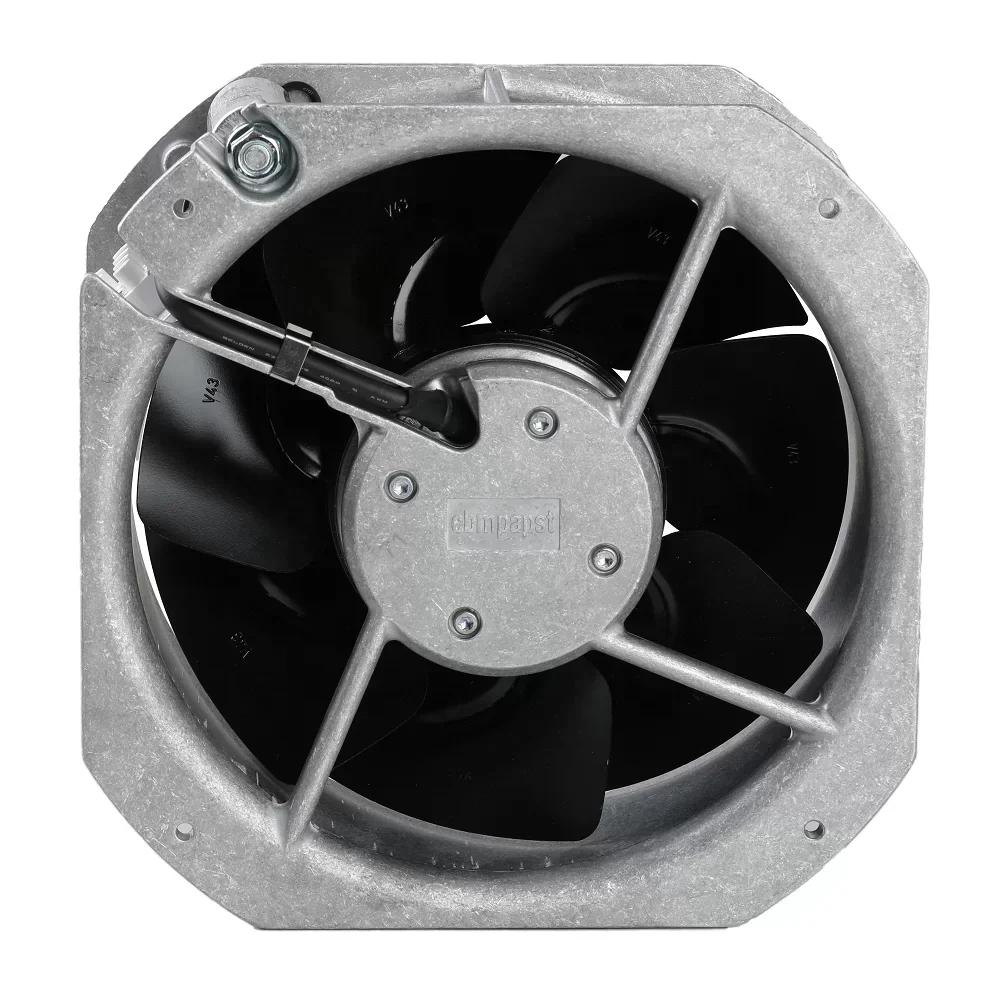

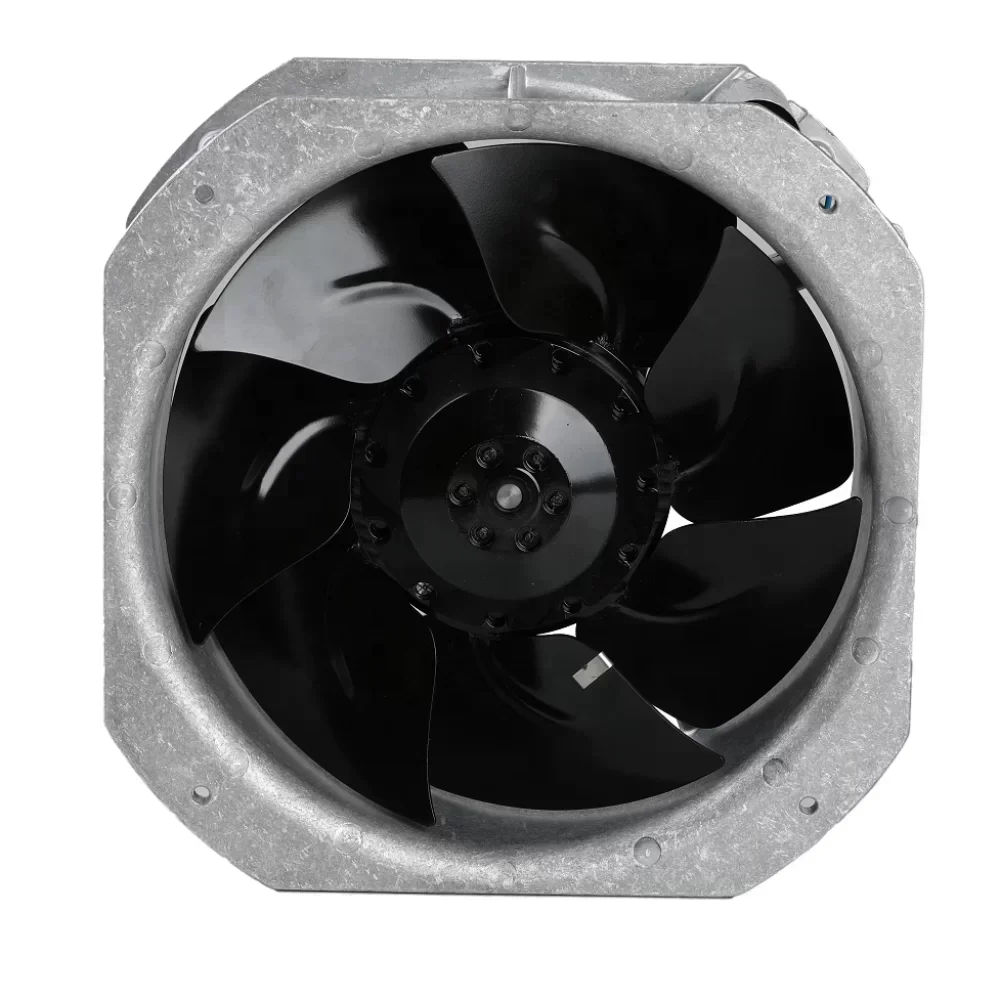

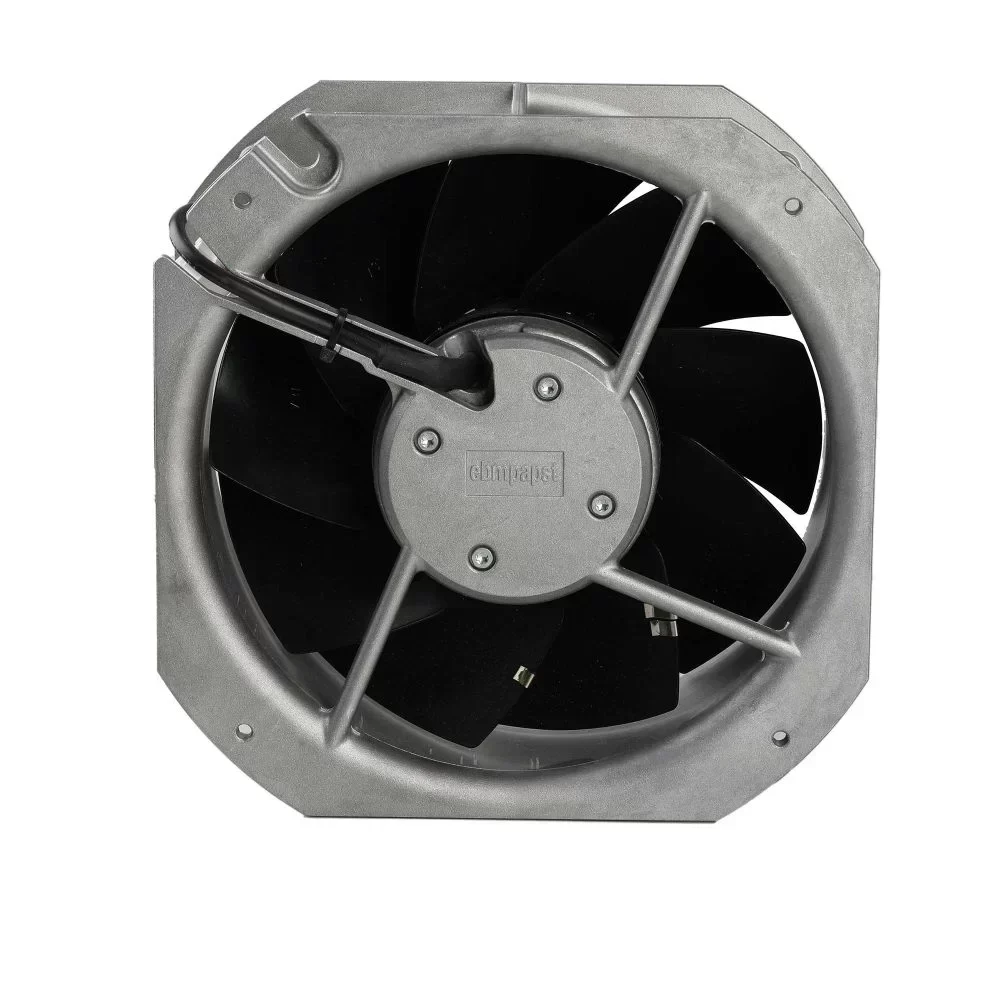

Name: W2E200-HH38-07 ebmpapst Axial Compact Fan ebmpapst TYPE :W2E200-HH38-07
Brand: ebmpapst
SKU: 1600496665839
Availability: InStock
Rating: 5 (4 reviews)

$148.00

SKU: 1600496665839 Brand: ebmpapst

Description
Reviews (0)

Description

This industrial cooling unit features Original Engineering from ebmpapst, utilizing the robust M2E068-BF external rotor motor to deliver superior thermal management performance. The W2E200-HH38-07 is designed for applications requiring high air throughput within a limited spatial footprint, ensuring Technical Compatibility with standard 200 mm ventilation cutouts. Constructed with a die-cast aluminum housing and a sheet steel impeller, this fan offers exceptional durability and vibration resistance. Operators should verify current Lead Time to ensure seamless maintenance cycles for critical infrastructure.

Technical Specifications:
Manufacturer: ebmpapst
Model Number: W2E200-HH38-07
Motor Type: M2E068-BF (AC External Rotor)
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Air Flow: 880 m³/h
Rotational Speed: 2550 / 2800 RPM
Power Consumption: 64 / 80 W
Nominal Current: 0.29 / 0.35 A
Starting Current: 0.55 A
Impeller Diameter: 200 mm
Bearing System: Maintenance-free Ball Bearings
Housing Material: Die-cast Aluminum
Impeller Material: Sheet Steel (Coated Black)
Direction of Air Flow: Exhaust over struts (V)
Direction of Rotation: Counter-clockwise (viewed on rotor)
Insulation Class: B
Motor Protection: Thermal Overload Protector (TOP)
Degree of Protection: IP44
Operating Temperature Range: -25°C to +65°C
Weight: 2.0 kg
Mounting Dimensions: 225 mm (Diagonal hole distance)
Phase: Single Phase
Capacitor: Integrated / Required

Industrial Application:
The W2E200-HH38-07 is specifically engineered for high-density heat dissipation scenarios in general industry and manufacturing environments. It is the primary cooling solution for large-scale control cabinets, variable frequency drive (VFD) enclosures, and power converter assemblies where consistent, high-volume airflow (880 m³/h) is required to prevent thermal derating of sensitive electronic components.

Voltage: 230V
Electric current type: AC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Stainless Steel
After-sales service provided: Online support
Place of origin: Germany
Brand name: Epmpapst
Model number: W2E200-HH38-07
Product name: Ebmpapst AC axial compact fan
Motor: M2E068-BF
Application: General industry
Size: 200 mm
Bearing Type: Ball bearing
Current: Starting current 0.55A
Weight: 2.0 kg
Air flow: 880m3/h
Frequency: 50HZ/60HZ
Type: Axial Flow Fan
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Selling Units: Single item
Single package size: 22.5X8X22.5 cm
Single gross weight: 2.000 kg

W2E200-HH38-07 ebmpapst Axial Compact Fan ebmpapst TYPE :W2E200-HH38-07

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
