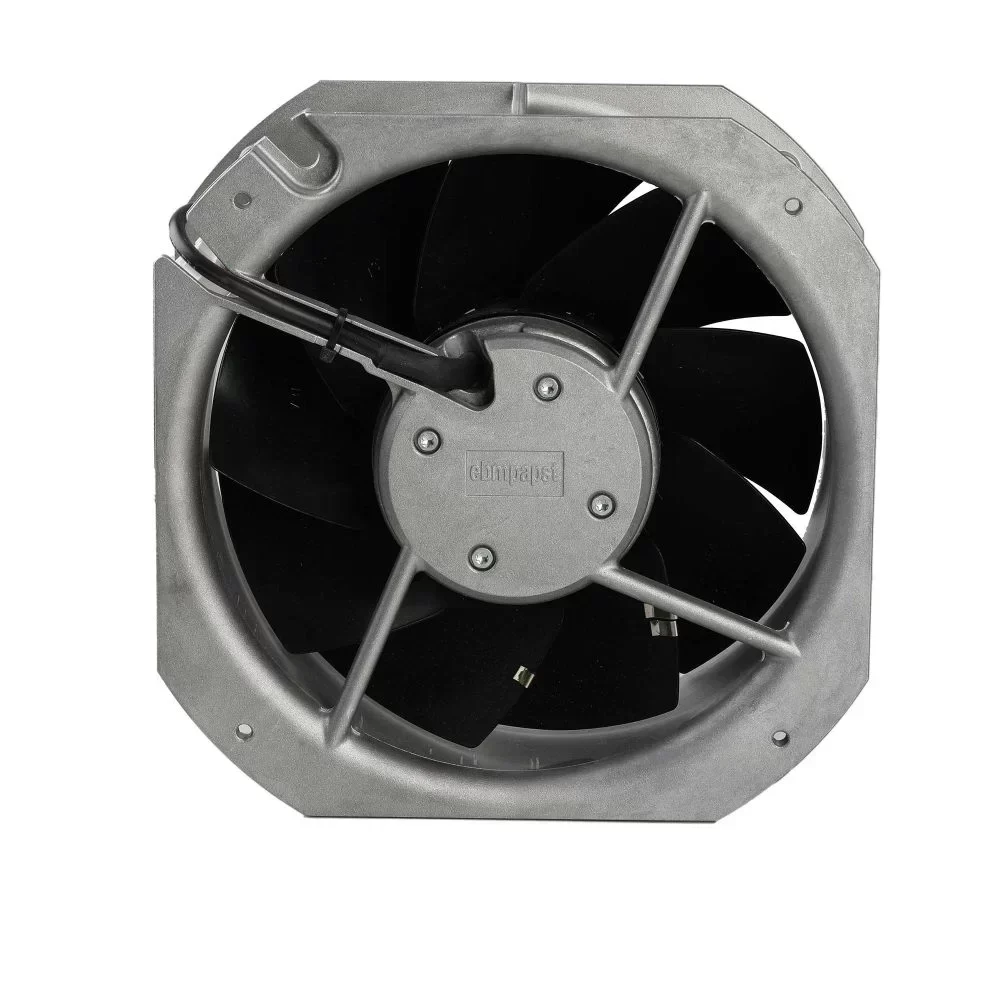

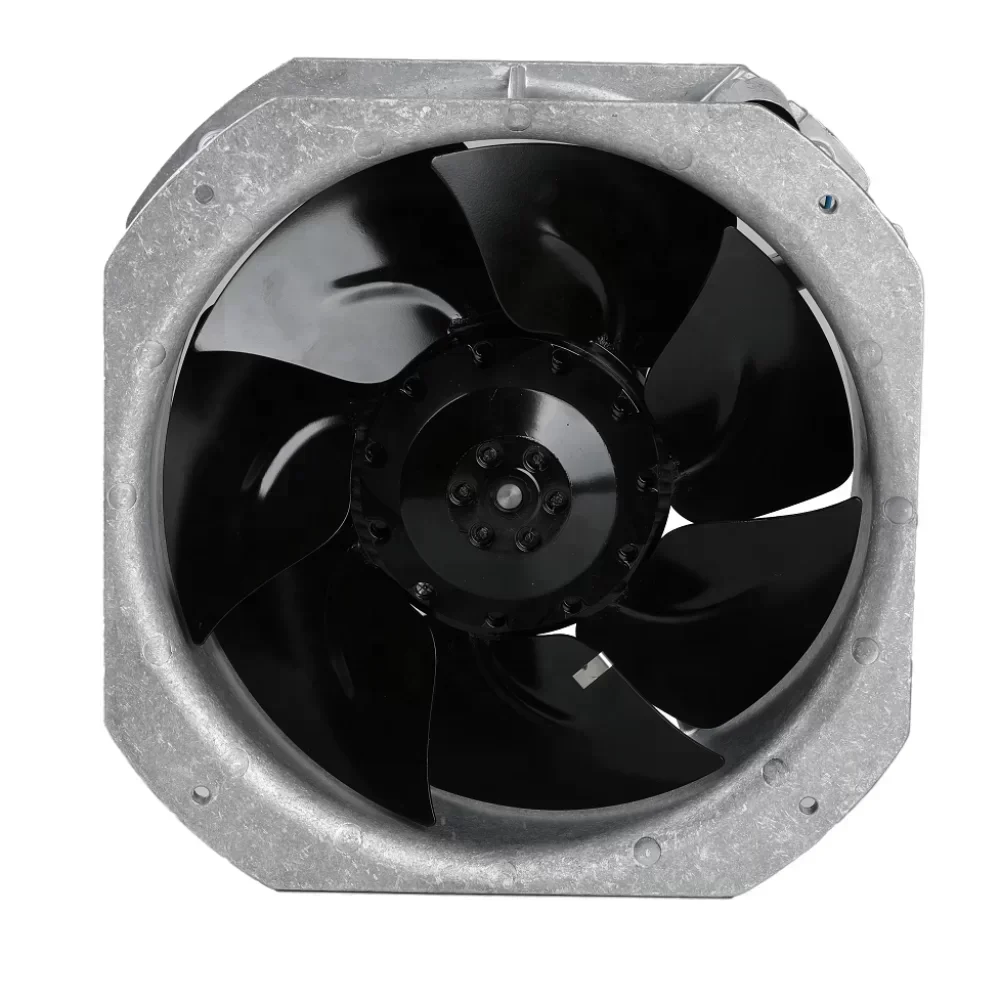

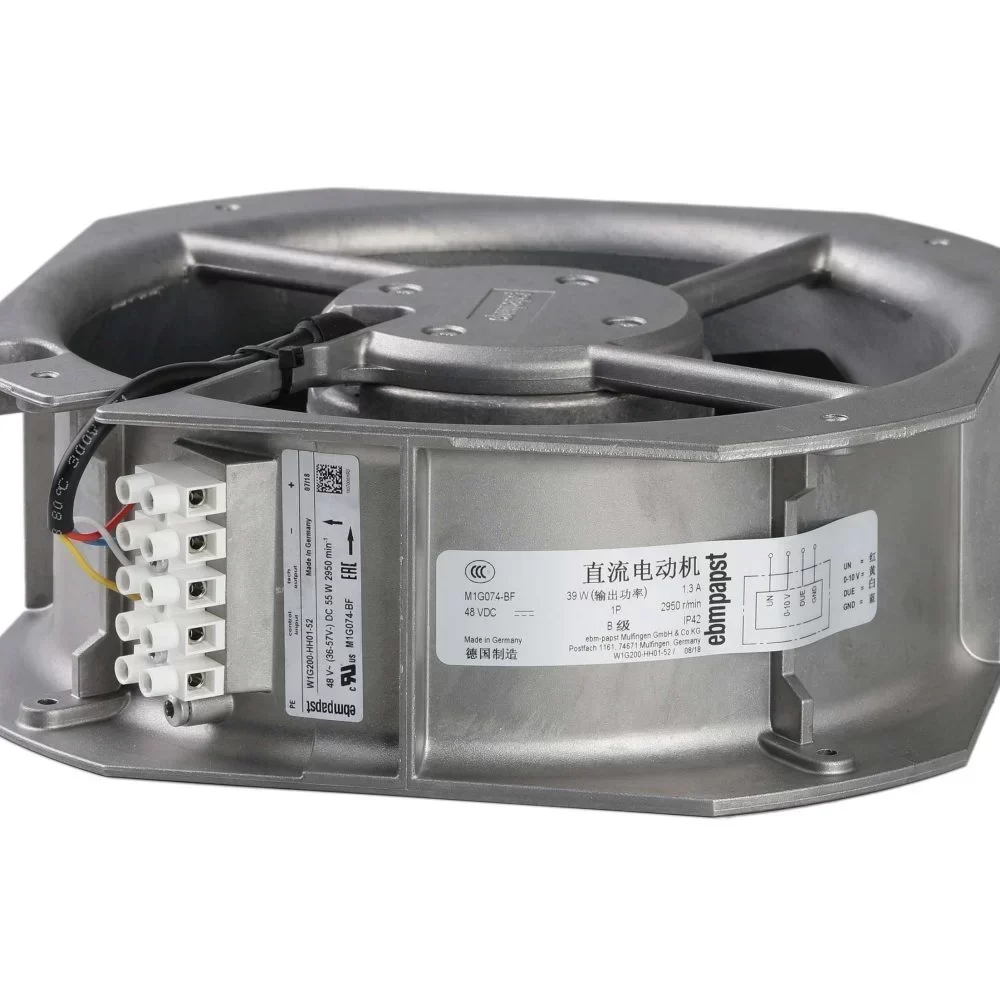

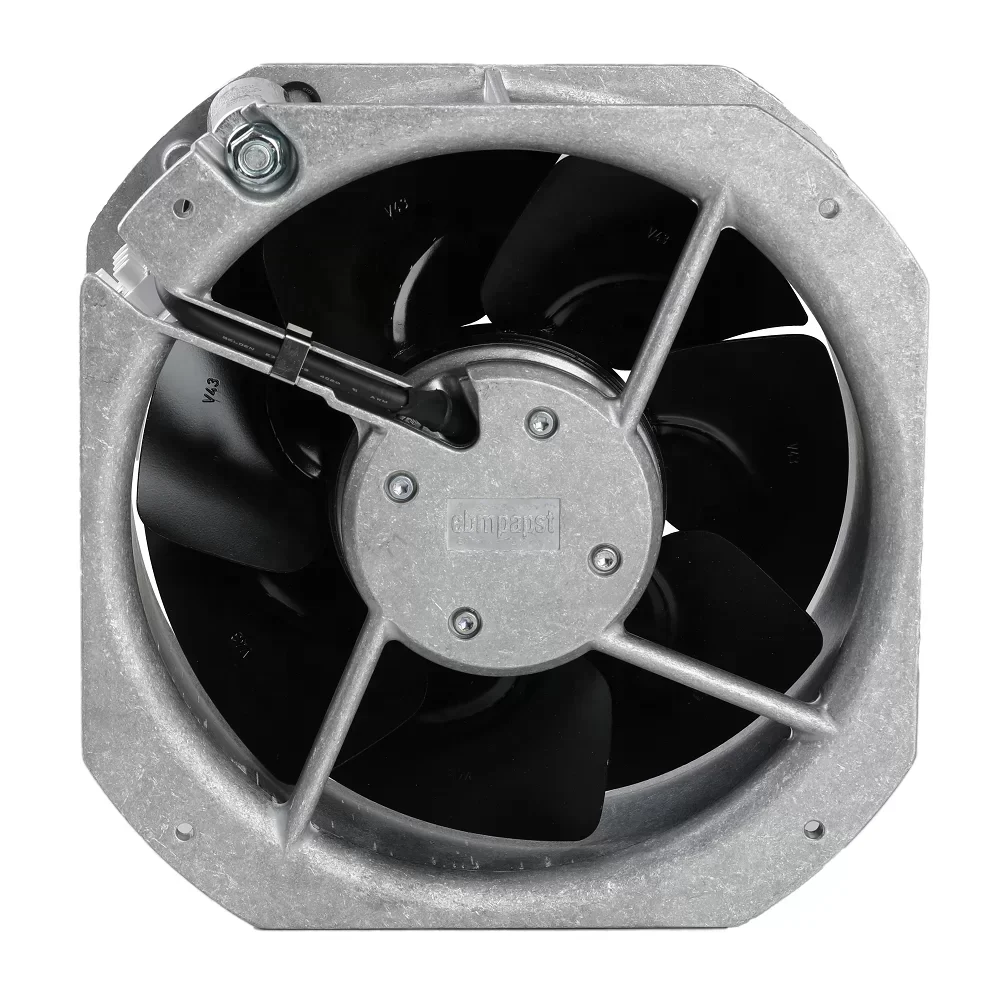

Name: W2E250-HL06-01 ebmpapst Axial Compact Stainless Steel Electric Power Source Fan
Brand: ebmpapst
SKU: 1600349184465
Availability: InStock
Rating: 5 (4 reviews)

$59.00

SKU: 1600349184465 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst W2E250-HL06-01 is a high-performance AC axial compact fan engineered for rigorous thermal management in industrial environments. This unit features an external rotor motor design (M2E068-DF) integrated directly into the impeller, providing a compact footprint with high power density. The 250 mm impeller geometry is aerodynamically optimized to deliver consistent airflow against moderate static pressure, making it a critical component for system reliability. Constructed with a die-cast aluminum housing and sheet steel impeller, the fan is designed to withstand mechanical stress and continuous operation. The maintenance-free ball bearing system ensures long service life and operational stability across a wide temperature range. This model includes an integrated operating capacitor and thermal overload protection, ensuring safety and compliance with global industrial standards.

TECHNICAL SPECIFICATIONS:
Manufacturer: ebmpapst
Model Reference: W2E250-HL06-01
Product Type: AC Axial Compact Fan
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Phase: 1~
Impeller Diameter: 250 mm
Nominal Speed: 2550 RPM (50 Hz) / 2750 RPM (60 Hz)
Max Air Flow: 1065 m³/h (Free Air) / 880 m³/h (Nominal)
Power Consumption: 127 W (50 Hz)
Current Draw: 0.56 A (50 Hz)
Starting Current: 0.55 A – 0.90 A
Capacitor: 4 µF / 400 VDB
Bearing System: Maintenance-free Ball Bearings
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Direction of Air Flow: V (Struts to Rotor)
Housing Material: Die-cast Aluminum
Impeller Material: Sheet Steel (Black Coated)
Electrical Connection: Terminal Strip
Insulation Class: B
Motor Protection: Thermal Overload Protector (TOP) wired internally
Degree of Protection: IP44
Ambient Temperature Range: -25°C to +55°C
Weight: 2.1 kg
Acoustic Noise Level: 76 dB(A)
Mounting: Free Standing / Flange Mount
Approvals: VDE, CSA, UL, CE

INDUSTRIAL APPLICATION:
This fan is specifically calibrated for Original Engineering applications requiring robust heat dissipation in enclosed spaces. It is the standard cooling solution for electrical control cabinets, variable frequency drive (VFD) ventilation systems, and industrial heat exchangers. The W2E250-HL06-01 provides the necessary static pressure to overcome resistance in dense filter mats and tightly packed electronic assemblies. We verify Technical Compatibility for retrofit and OEM integration to ensure seamless system performance. Contact our engineering team for current Lead Time and lifecycle support.

Voltage: 230V
Mounting type: Free Standing
Type: Axial Compact Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Stainless Steel
Bearing type: Ball Bearing
After-sales service provided: Online support
Place of origin: Germany
Brand name: Epmpapst
Model number: W2E250-HL06-01
Product name: Ebmpapst AC axial compact fan
Application: General industry
Size: 200 mm
Bearing Type: Ball bearing
Current: Starting current 0.55A
Weight: 2.1 kg
Air flow: 880m3/h
Frequency: 50HZ/60HZ
Selling Units: Single item
Single package size: 28X8X28 cm
Single gross weight: 2.800 kg

W2E250-HL06-01 ebmpapst Axial Compact Stainless Steel Electric Power Source Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
