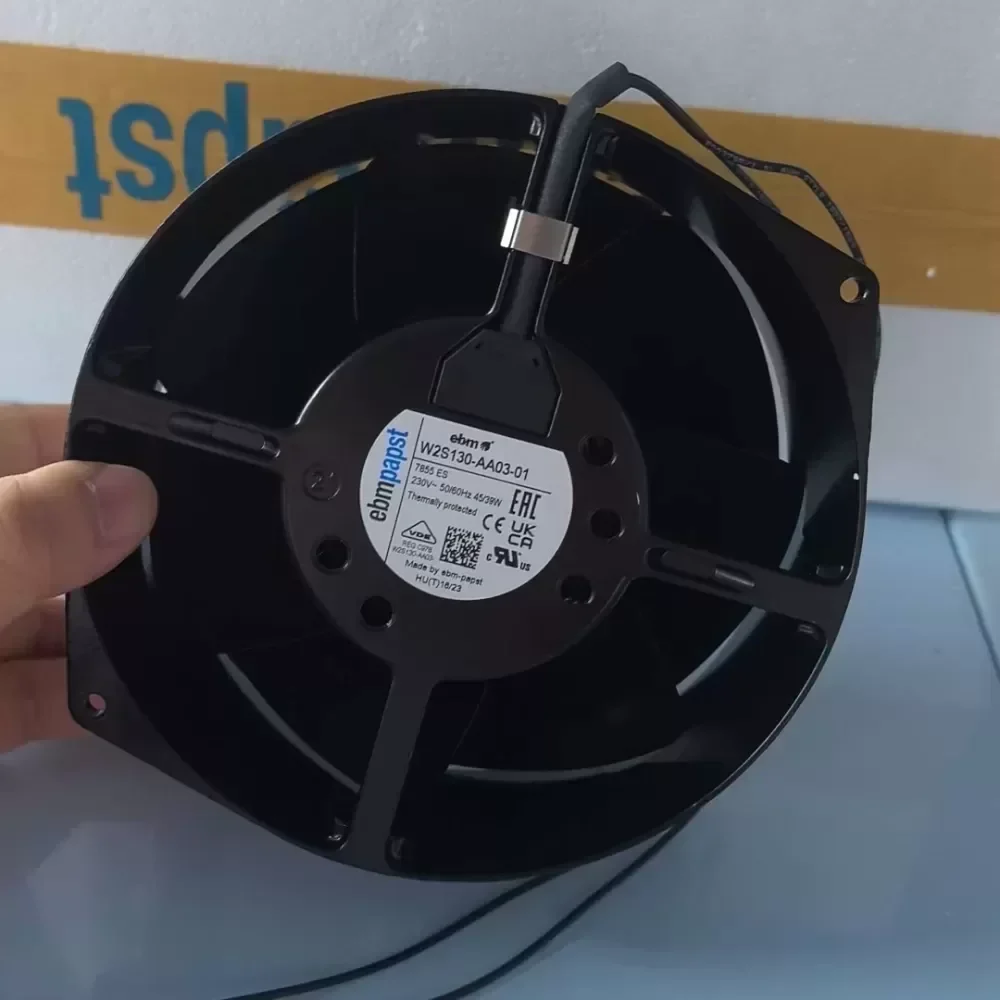

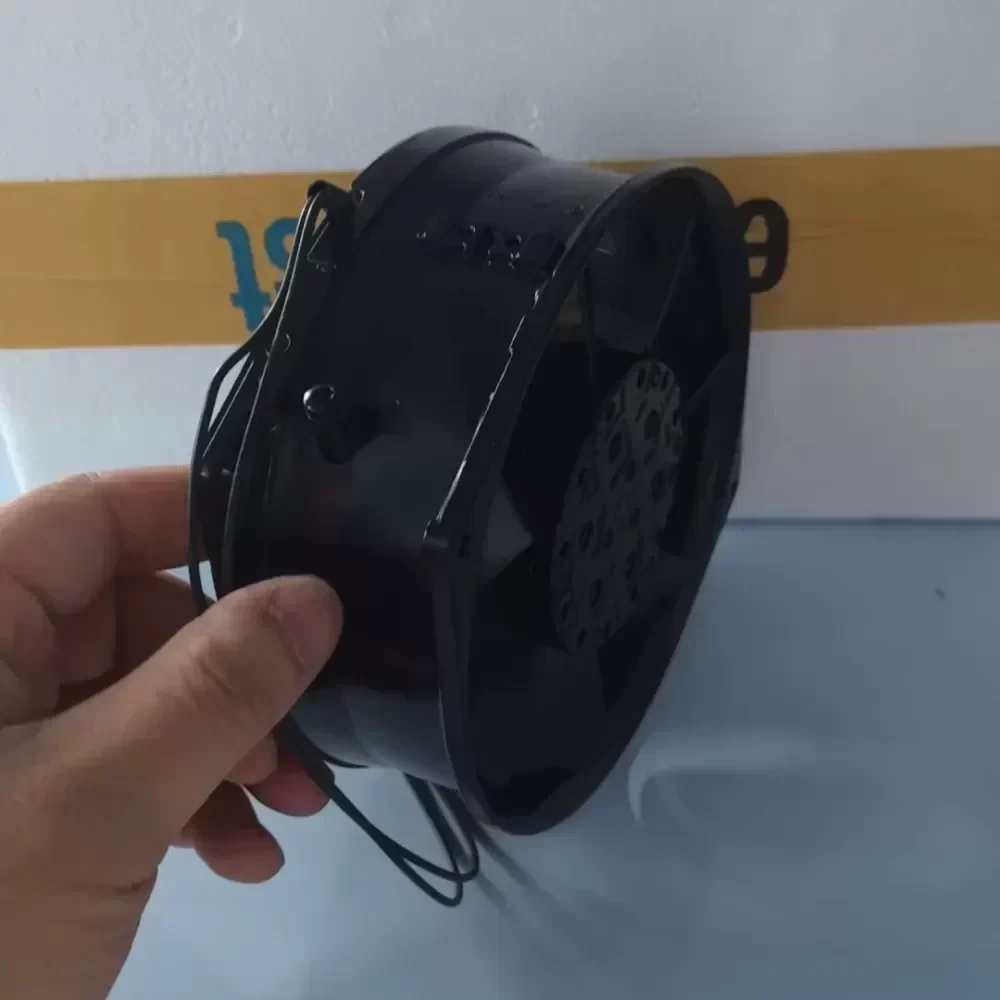

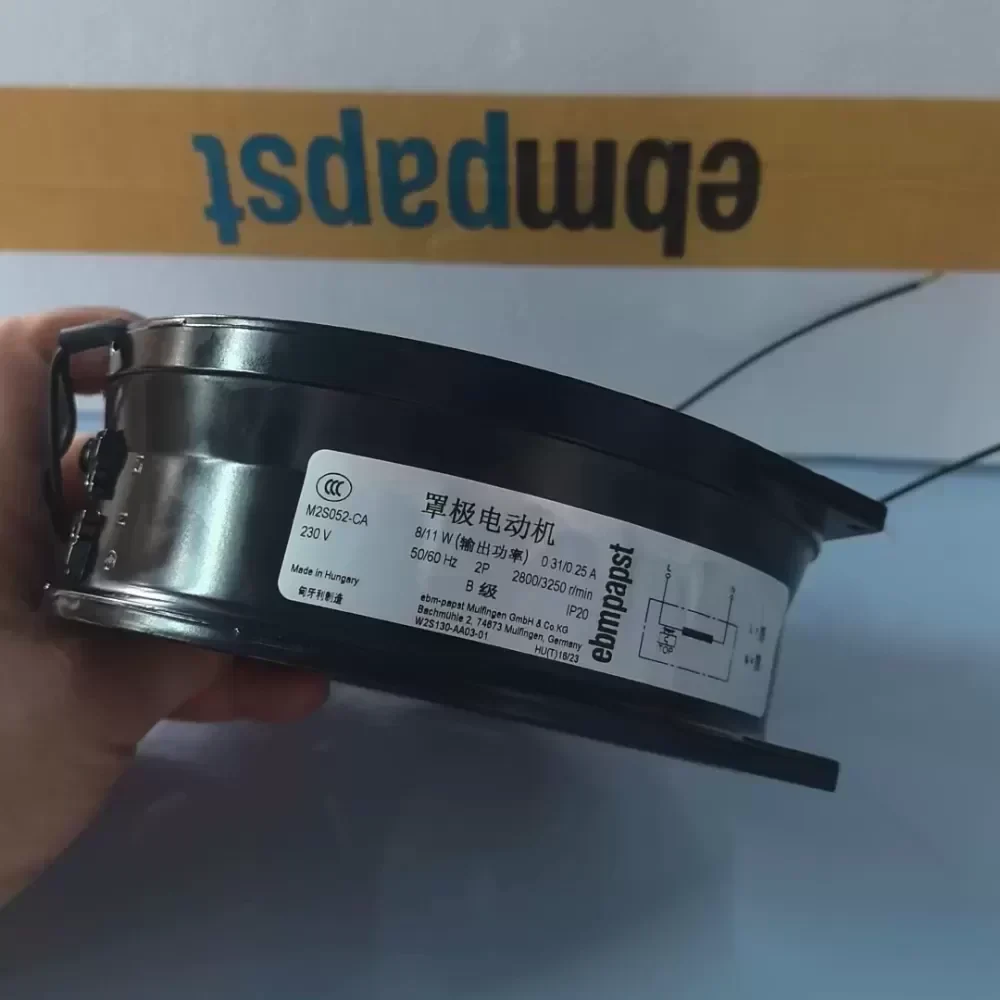

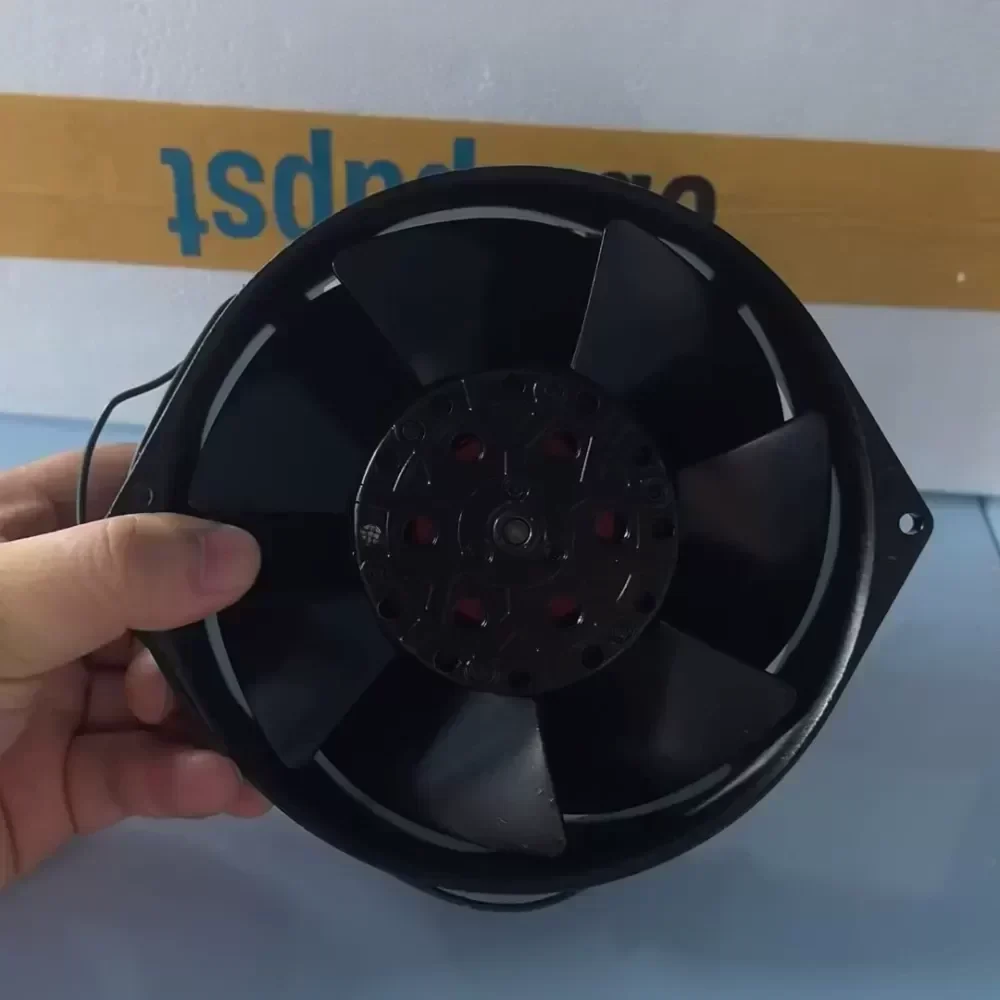

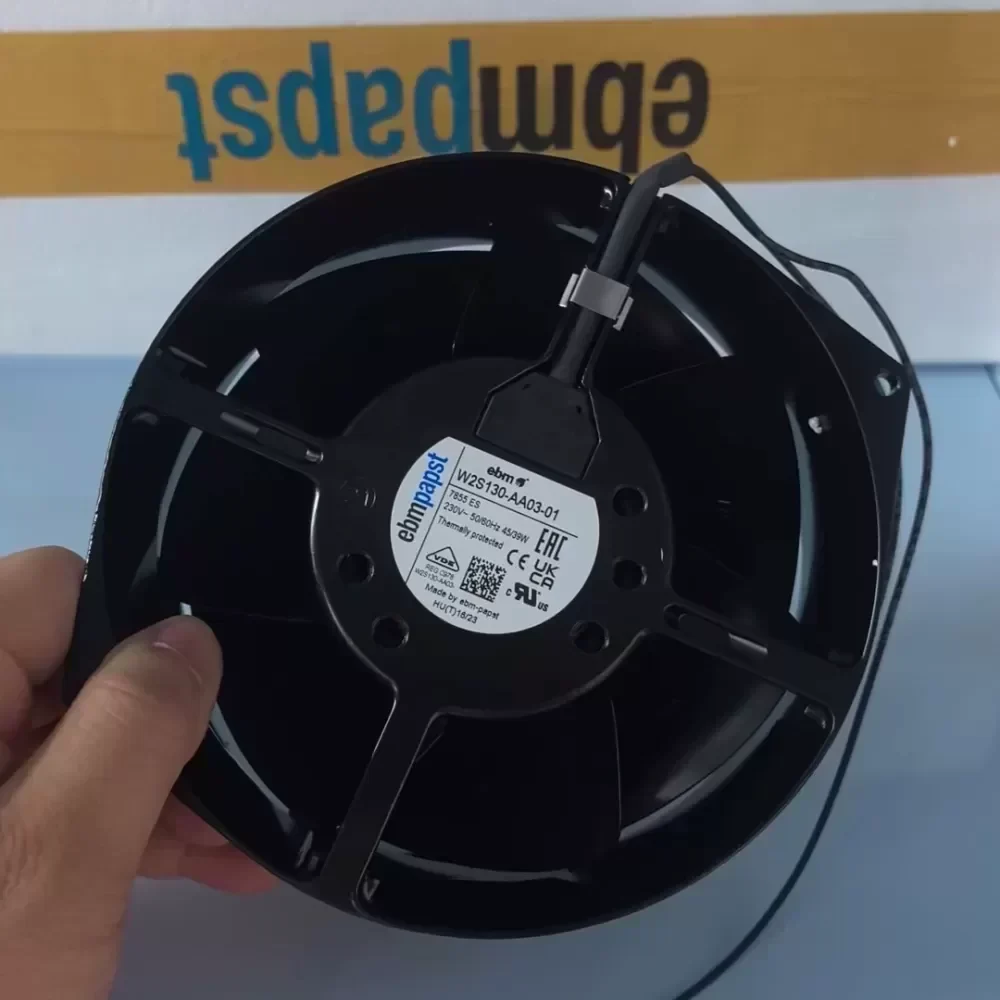

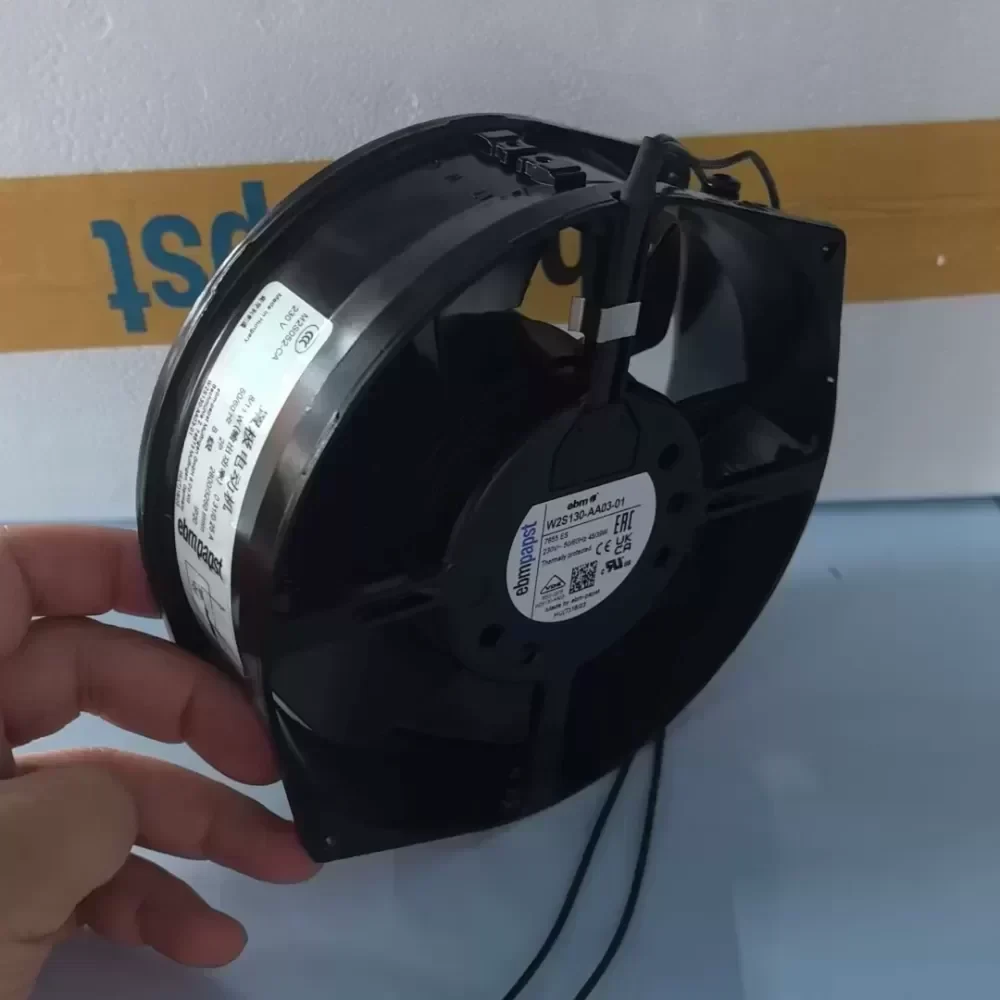

W2S130-AA03-01 EBMPAPST industrial fan

Name: W2S130-AA03-01 EBMPAPST industrial fan
Brand: ebmpapst
SKU: 922738839892
Availability: InStock
Rating: 5 (4 reviews)

$40.71

SKU: 922738839892 Brand: ebmpapst

Description
Reviews (0)

Description

The ebm-papst W2S130-AA03-01 is a high-performance AC axial fan engineered for industrial-grade thermal management. This unit features Original Engineering designed for continuous S1 operation in high-impedance environments. The all-metal construction, comprising a die-cast aluminum housing and sheet steel impellers, ensures structural integrity under elevated thermal loads and provides superior heat dissipation compared to plastic alternatives.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: W2S130-AA03-01
Motor: M2S052-CA
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Speed: 2800 / 3250 RPM
Power Consumption: 45 / 39 W
Current Draw: 0.31 / 0.25 A
Max Airflow: 325 / 380 m³/h
Max Back Pressure: 80 / 120 Pa
Bearing Type: Maintenance-free ball bearings
Impeller Material: Sheet steel, painted black
Housing Material: Die-cast aluminum
Number of Blades: 7
Direction of Rotation: Counter-clockwise viewed toward rotor
Direction of Airflow: Exhaust over struts
Insulation Class: B
Motor Protection: Thermal overload protector (TOP) wired internally
Degree of Protection: IP20
Operating Temperature Range: -25 °C to +70 °C
Weight: 1.1 kg
Dimensions: 150 x 172 x 38 mm
Technical Compatibility: Standard 130 series mounting pattern
Certifications: VDE, UL, CSA, CE

Industrial Application:
The W2S130-AA03-01 is specifically optimized for heat dissipation in Uninterruptible Power Supplies (UPS) and elevator frequency converters. In these scenarios, the fan addresses the critical problem of localized hotspots within power electronics cabinets. Its high-pressure characteristic allows for efficient airflow through dense internal components, maintaining system stability and extending the lifecycle of sensitive semiconductors. Global Lead Time is optimized for MRO requirements and OEM integration.

W2S130-AA03-01 EBMPAPST industrial fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
