Description

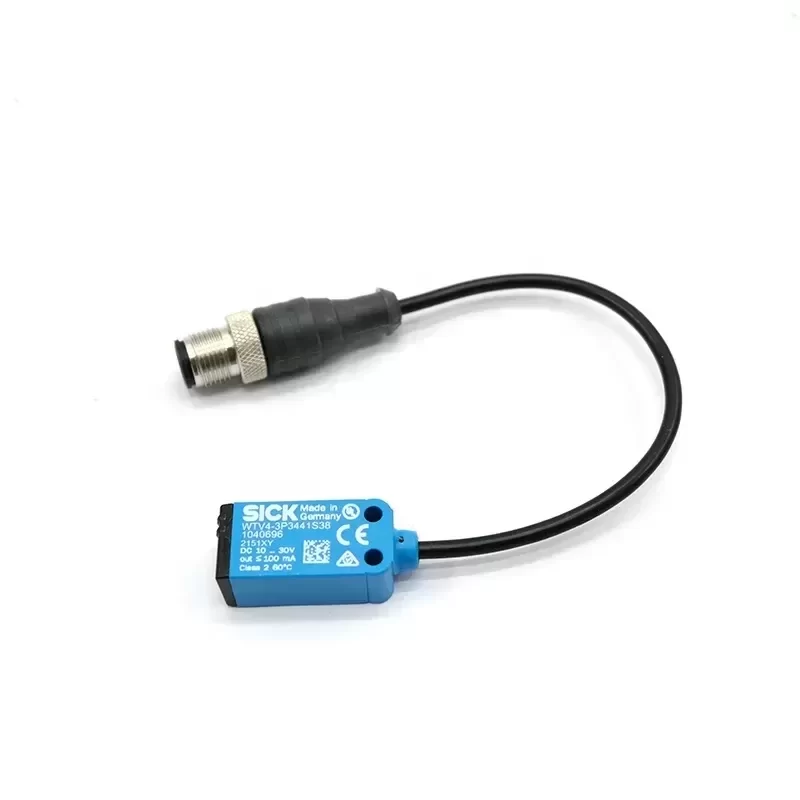

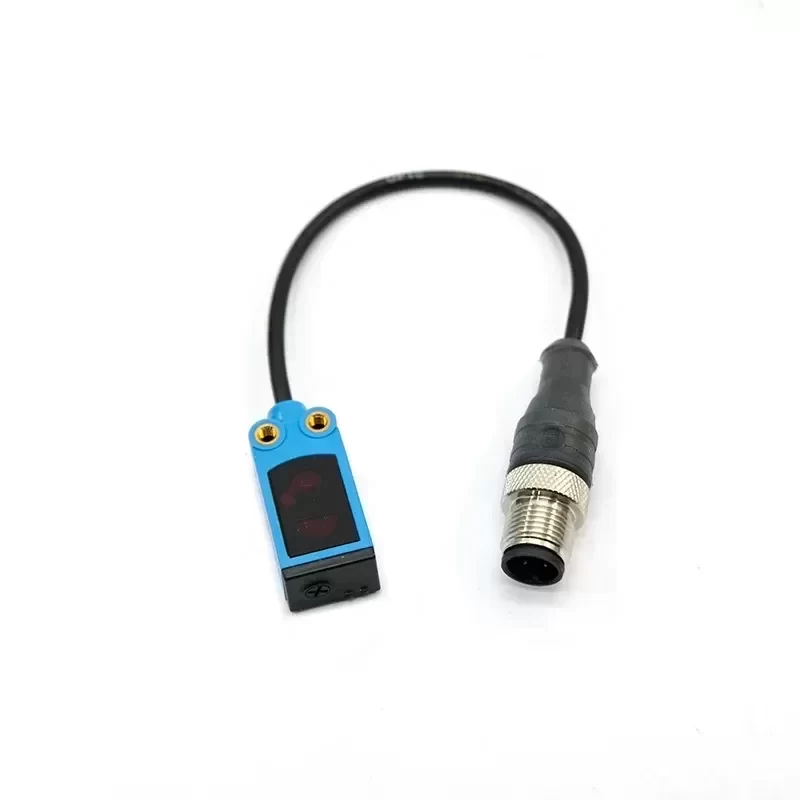

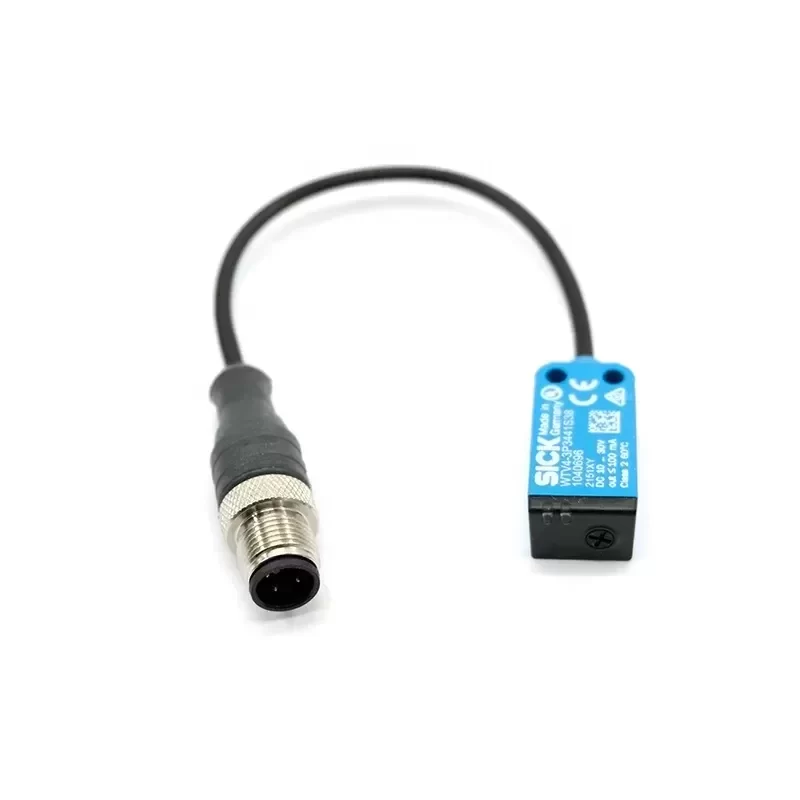

The SICK WTV4-3P3441S38 is a high-precision miniature photoelectric sensor featuring V-optics technology, specifically engineered for the detection of transparent, reflective, or irregular objects within confined industrial spaces. This unit leverages SICK’s proprietary PinPoint LED technology to generate a focused, intense light spot, ensuring reliable background suppression even against highly reflective machine surfaces. The S38 designation indicates a specialized configuration tailored for specific OEM integration, guaranteeing Original Engineering performance standards. The sensor is housed in a rugged VISTAL casing, providing superior mechanical strength and chemical resistance compared to standard ABS plastics, making it suitable for harsh CNC and automation environments.
Technical Specifications:
Manufacturer: SICK AG
Model Number: WTV4-3P3441S38
Sensor Principle: Photoelectric proximity sensor
Detection Method: Background suppression with V-Optics
Sensing Range: 2 mm … 50 mm
Light Source: PinPoint LED, Visible red light
Wave Length: 650 nm
Light Spot Size: Ø 2 mm (at 20 mm distance)
Output Type: PNP
Switching Mode: Light/Dark switching
Signal Voltage PNP HIGH/LOW: Approx. VS – 2.5 V / 0 V
Output Current Imax: 100 mA
Response Time: < 0.5 ms
Switching Frequency: 1,000 Hz
Connection Type: Cable with M12 male connector, 4-pin, 120 mm pigtail
Cable Material: PVC
Supply Voltage: 10 V DC … 30 V DC
Ripple: < 5 Vpp
Current Consumption: 20 mA
Housing Material: Plastic, VISTAL (Glass-fiber reinforced)
Optics Material: Plastic, PMMA
Enclosure Rating: IP66, IP67
Ambient Operating Temperature: -40 °C … +60 °C
Circuit Protection: A (VS connections reverse-polarity protected), C (Interference suppression), D (Outputs overcurrent and short-circuit protected)
Protection Class: III
Weight: Approx. 30 g
Industrial Application:
The WTV4-3P3441S38 is critical for automated assembly lines requiring the detection of difficult targets such as solar wafers, glass panels, or transparent trays in packaging machinery. Its V-optic geometry eliminates the blind zone typically found in standard sensors, allowing for precise detection of flat objects on conveyor belts. This Technical Compatibility with high-speed CNC and electronic component manufacturing ensures seamless integration. Immediate stock availability ensures a short Lead Time for urgent spare part requirements.
Key Attributes
Application: Cnc Machine, Electric Power Transmission, Electronic Equipment, Industrial Equipment
Motor Type: Servo, Universal, AC, DC
Place of Origin: Germany
Model Number: WTV4-3P3441S38
Brand Name: Sick
Product name: Photoelectric sensor
Payment method: Western Union & T/T & Paypal
Quality: 100% original
Payment term: All terms are accepted
Warranty: 3 Months for Used and 12 Months for New
Service: One-stop Service
Port of export: ShenZhen
MOQ: 1 Piece
Lead time: In stock

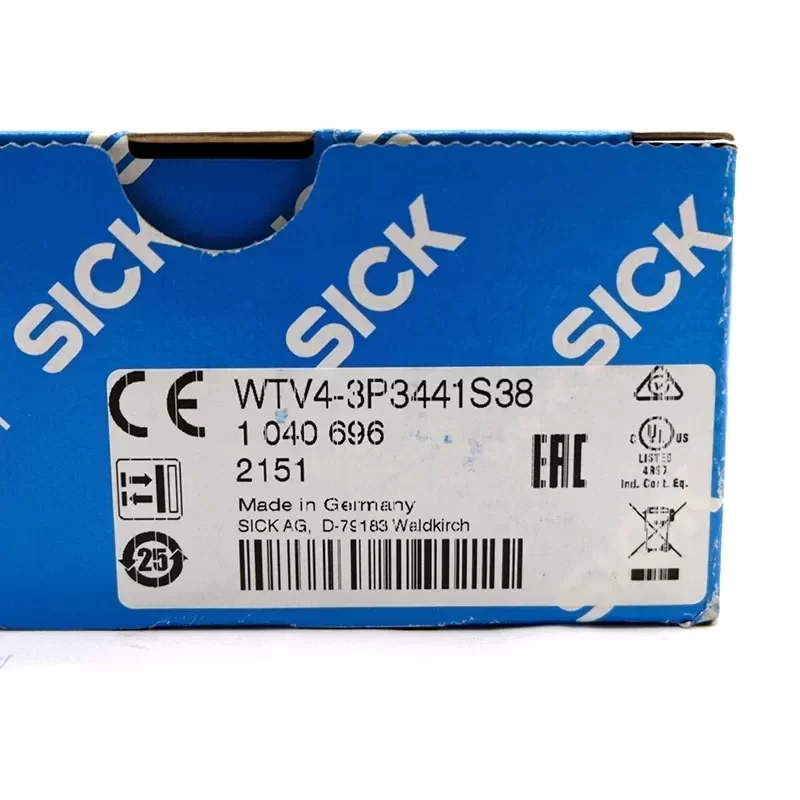

Package: With Carton Package
Packaging and Delivery
Selling Units: Single item
Single package size: 10X10X8 cm
Single gross weight: 0.500 kg
