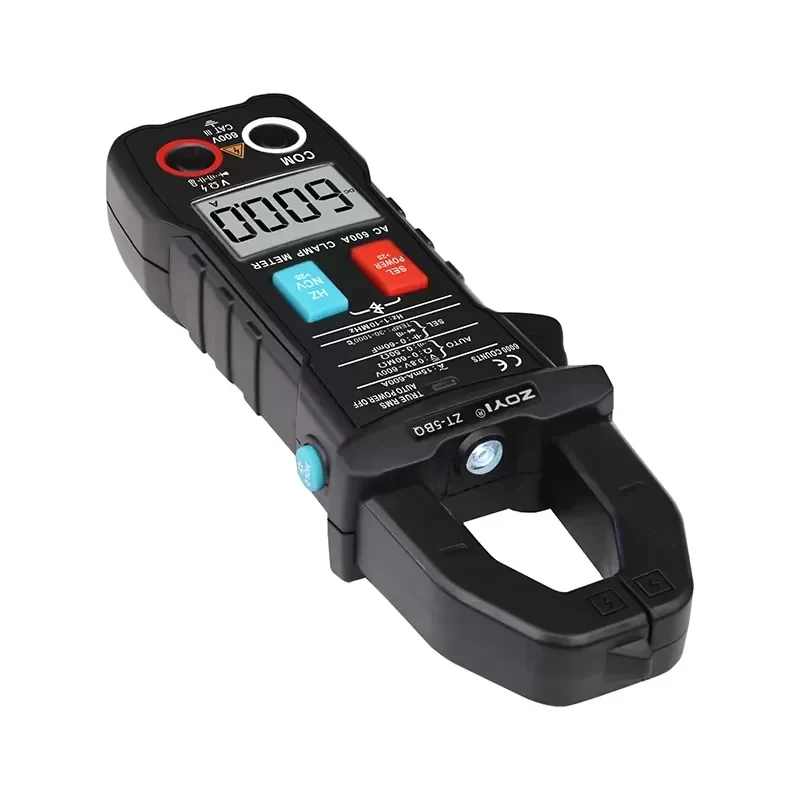

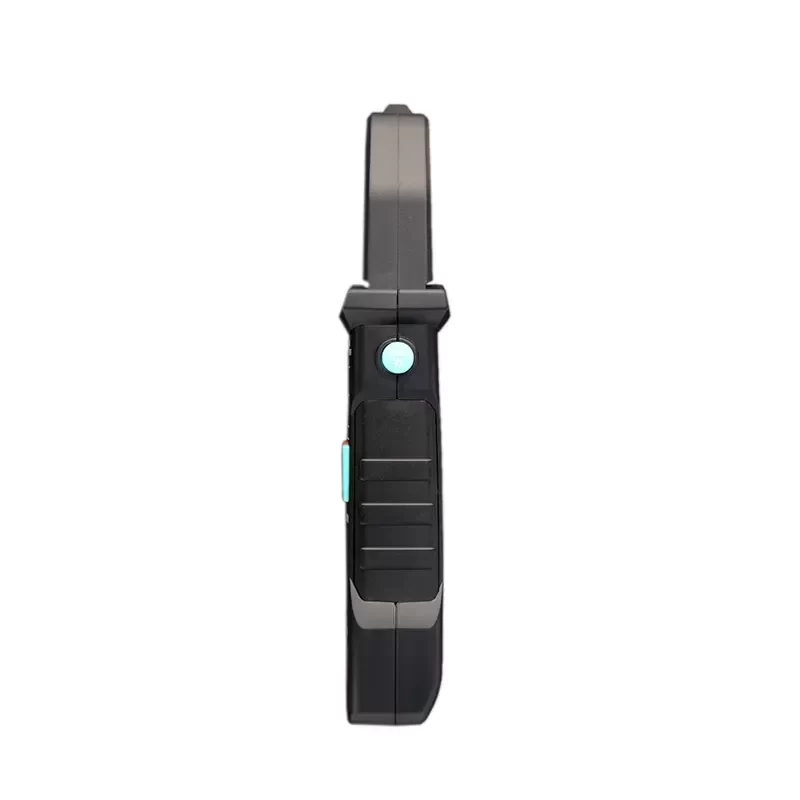

ZOYI ZT-5BQ Smart Clamp Meter Multimeter

Description

The ZOYI ZT-5BQ is a high-precision Smart Digital Clamp Meter designed for professional industrial diagnostics and remote telemetry via Bluetooth integration. This unit features True RMS processing and an auto-ranging architecture capable of handling complex non-linear loads. The device interfaces seamlessly with mobile platforms to facilitate real-time data logging, trend analysis, and report generation, significantly reducing downtime during critical maintenance cycles. Its compact, double-molded ABS+TPE housing ensures durability in harsh field environments while maintaining CAT III 600V safety standards. Original Engineering specifications ensure reliable performance across broad measurement ranges, making it a staple for electrical contractors and facility maintenance teams. Contact us for current Lead Time and bulk availability.

Manufacturer: ZOYI
Model Number: ZT-5BQ
Device Type: Bluetooth Smart Digital Clamp Multimeter
Measurement Architecture: True RMS / Auto-Ranging
Display Resolution: 6000 Counts LCD
AC Current Range: 6A / 60A / 600A
AC Voltage Range: 6V / 60V / 600V
DC Voltage Range: 600mV / 6V / 60V / 600V
Resistance Range: 600Ω to 60MΩ
Capacitance Range: 6nF to 60mF
Frequency Range: 10Hz to 1kHz
Temperature Measurement: -50°C to 1000°C
Wireless Interface: Bluetooth (App Supported)
Continuity Test: Audible Buzzer (<50Ω)
Diode Test: Yes
Jaw Opening Capacity: 25mm
Sampling Rate: 3 times/second
Input Impedance: 10MΩ
Safety Category: CAT III 600V
Housing Material: ABS + TPE High-Impact Composite
Operating Environment: 0°C to 40°C (<75% RH)
Power Supply: 2 x 1.5V AAA Batteries
Dimensions: 172mm x 64mm x 32mm
Net Weight: 161g
Certifications: CE, FCC, RoHS
Technical Compatibility: Universal Test Leads / Type-K Thermocouple

Industrial Application
The ZT-5BQ is specifically calibrated for HVAC/R diagnostics and industrial motor control troubleshooting. The Bluetooth telemetry function allows operators to close electrical cabinet doors and monitor startup inrush currents or thermal overload conditions from a safe distance, mitigating arc flash risks. This remote capability is critical when diagnosing intermittent faults in Variable Frequency Drives (VFDs) and distribution panels where physical proximity is hazardous or restricted. The device ensures precise Technical Compatibility with standard industrial control voltages and provides immediate data visualization for predictive maintenance protocols.

Key Attributes
Max. Ac Current: 600 A
Measuring Voltage Range: DC AC 600V
Place of Origin: Guangdong, China
Model Number: ZT-5BQ
Brand Name: ZOYI
Dimensions: 172*64*32mm
Display Type: Digital Only
Max. Ac Voltage: 600V
Max. DC Voltage: 600 V
Measuring Capacitance Range: 60mF
Measuring Current Range: AC 600A
Measuring Inductance Range: -
Measuring Resistance Range: 60 MΩ
Operating Temperature: Room temperature
Parameters Measured: AC Voltage, DC Voltage, Capacitance, Continuity, Diode, Resistance
Weight: 161g
Product Name: ZOYI ZT - 5BQ Smart Clamp Meter Digital bt Clamp multimeter
Type: Auto Digital clamp meter
Display Type: 6000 counts
Range Select: AUTO
Package: 50PCS/CTN
Material: ABS+TPE
Certificate: CE FCC
Keywords: Clamp meter

Packaging and Delivery
Selling Units: Single item
Single package size: 16X12X6 cm
Single gross weight: 0.350 kg
