Description

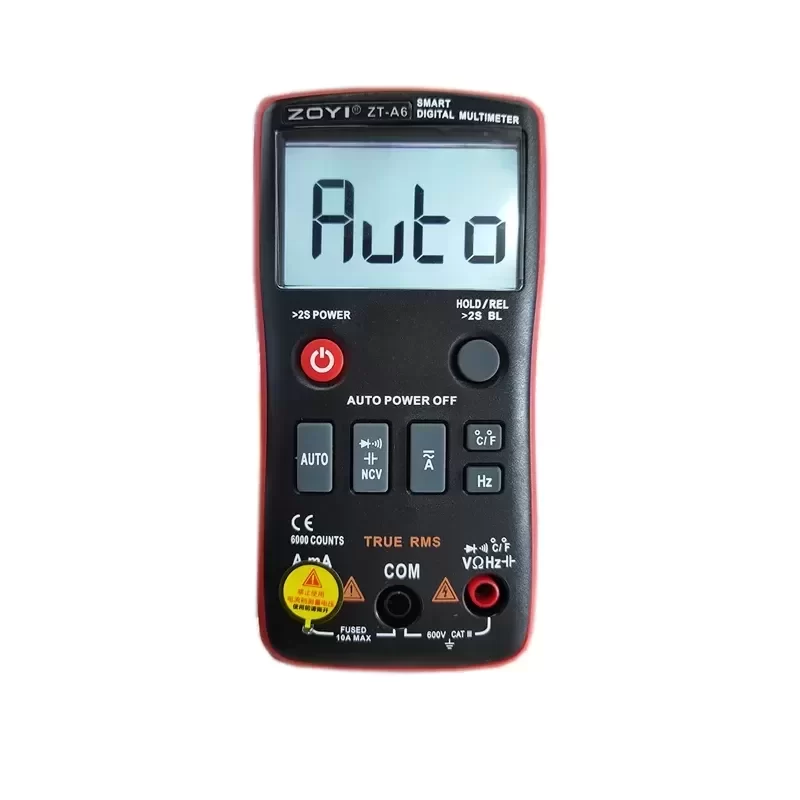

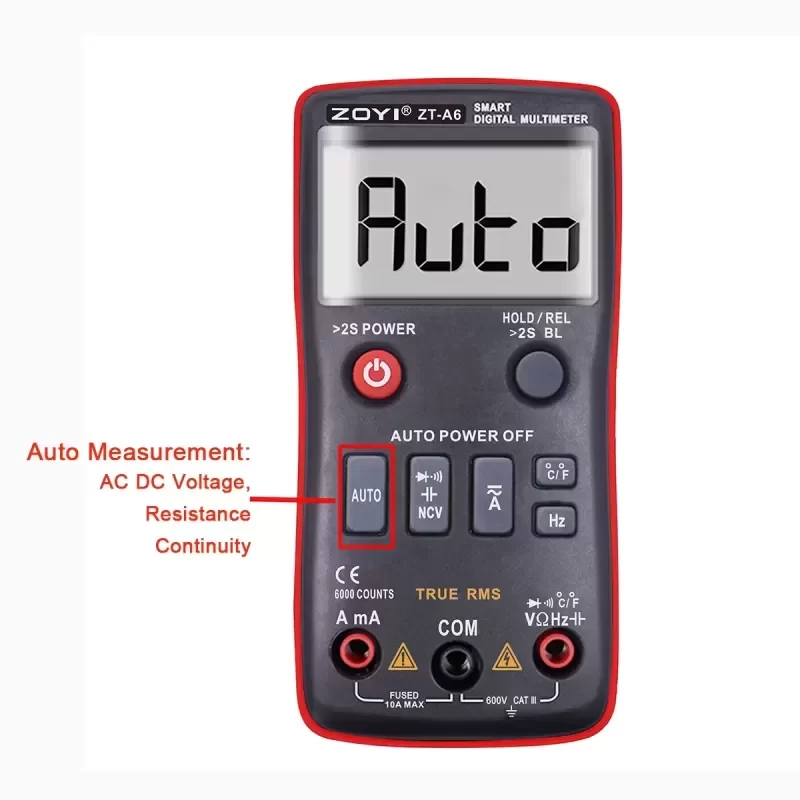

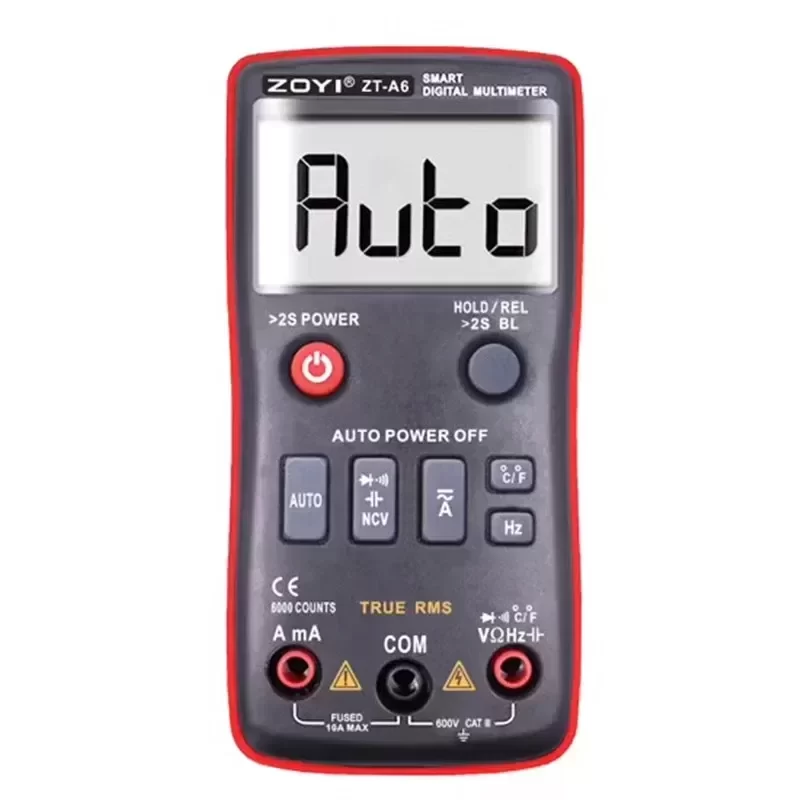

The ZOYI ZT-A6 is a high-precision, 6000-count smart digital multimeter engineered for rapid electrical diagnostics and field maintenance. This instrument utilizes intelligent input recognition technology to automatically distinguish between AC/DC voltage, resistance, and continuity signals, eliminating the need for manual dial selection and reducing operator error. Housed in a durable, impact-resistant ABS enclosure, the ZT-A6 is designed for portability without compromising measurement density. It adheres to Original Engineering standards for safety and accuracy, providing reliable performance in both commercial and residential electrical environments. The unit features a palm-sized form factor with a clear LCD interface, ensuring readability in variable lighting conditions.
Technical Specifications
Manufacturer: ZOYI
Model Number: ZT-A6
Display Architecture: Digital LCD, 6000 Counts
Measurement Logic: Smart Auto-Ranging
DC Voltage Range: 0V to 600V
AC Voltage Range: 0V to 600V
DC Current Range: 0A to 10A
AC Current Range: 0A to 10A
Resistance Range: 0.1Ω to 60MΩ
Capacitance Range: 1nF to 60mF
Accuracy Class: ±(0.5% + 3)
Sampling Rate: Approx. 3 times/second
Input Impedance: 10MΩ
Operating Temperature: 0°C to 40°C
Power Supply: 2 x 1.5V AAA Batteries
Enclosure Material: Industrial Grade ABS
Dimensions: 130mm x 65mm x 32mm
Net Weight: 130g
Gross Shipping Weight: 0.300kg
Safety Features: Overload Protection, Low Battery Indicator, Auto Power Off (15 minutes)
Auxiliary Functions: NCV (Non-Contact Voltage), Data Hold, Backlight, Flashlight, Diode Test, Continuity Buzzer
Industrial Application
The ZT-A6 is specifically optimized for facility maintenance and HVAC technicians requiring rapid troubleshooting of mixed-signal control panels. The smart recognition feature solves the critical problem of mode-switching latency during multi-point inspections, allowing the user to seamlessly transition from testing live voltage on contactors to verifying fuse continuity without adjusting the device. This ensures Technical Compatibility with fast-paced maintenance workflows where efficiency is paramount. Please confirm current Lead Time for volume orders.
Key Attributes
Accuracy Class: ±(0.5% + 3)
Measuring Current Range: 0-10A
Measuring Voltage Range: 0-600V
Parameters Measured: DC Current, AC Voltage, DC Voltage, Capacitance, Continuity, Diode, Resistance, AC Current
Place of Origin: Guangdong, China
Model Number: ZT-A6
Brand Name: ZOYI
Application: Household Use
Dimensions: 130*65*32mm
Feature: Standard
Low Battery Indicator: Yes
Material: ABS
Max. AC Current: 10A
Max. AC Voltage: 600 V
Max. DC Current: 10A
Max. DC Voltage: 600 V
Measuring Capacitance Range: 60mF
Measuring Inductance Range: -
Measuring Resistance Range: 60MΩ
Operating Temperature: (-0-40)℃
Product Name: ZOYI ZT-A6 Smart Digital Multimeter Auto Multi Meter
Display Count: 6000
Color: Red
Size: 130*65*32mm
Auto Power Off: Yes
Product weight: 130g
Keyword: Digital multimeter
Display: LCD
Feature: Accurate+Palm size+Durable
Packaging and Delivery
Selling Units: Single item
Single package size: 22X10X5 cm
Single gross weight: 0.300 kg
